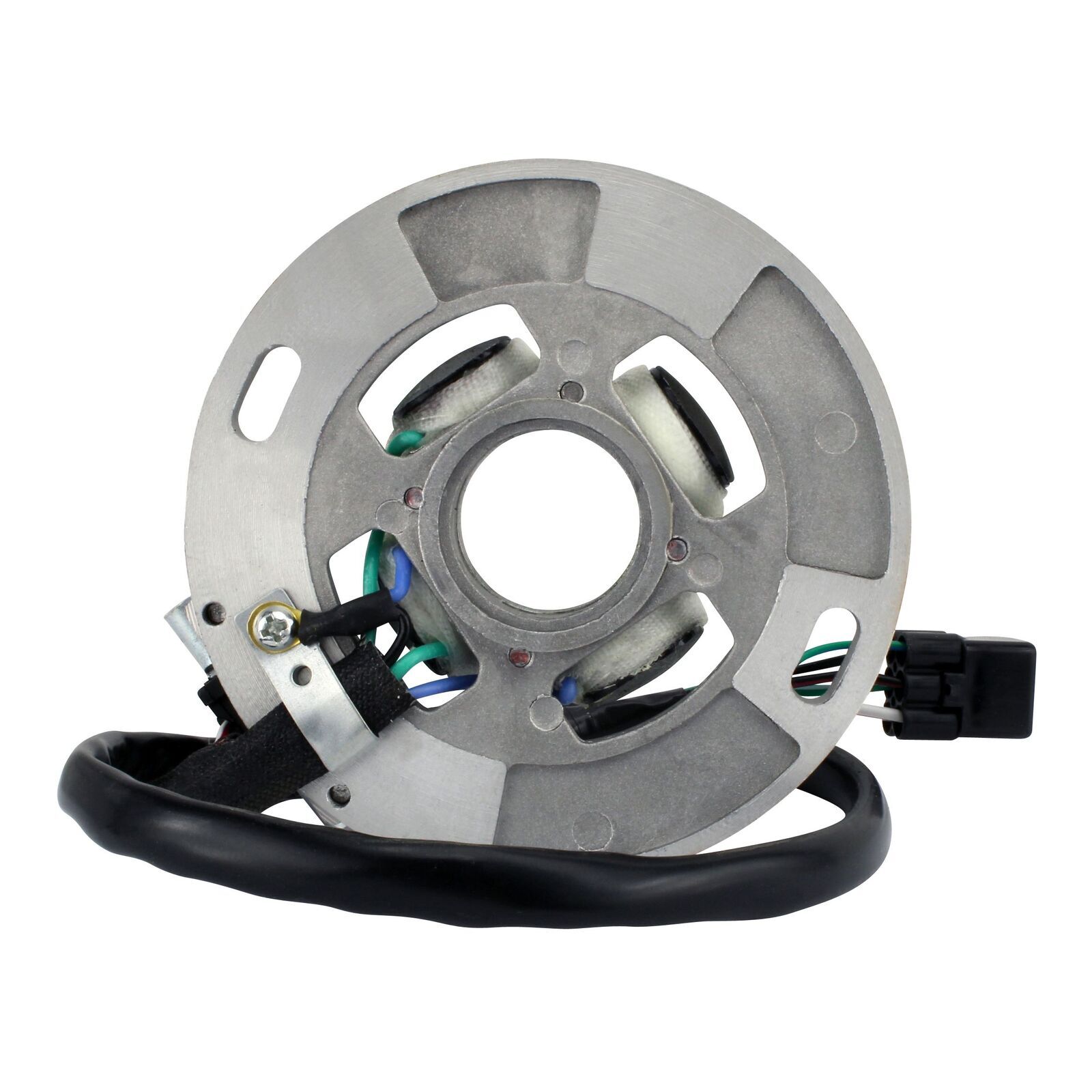

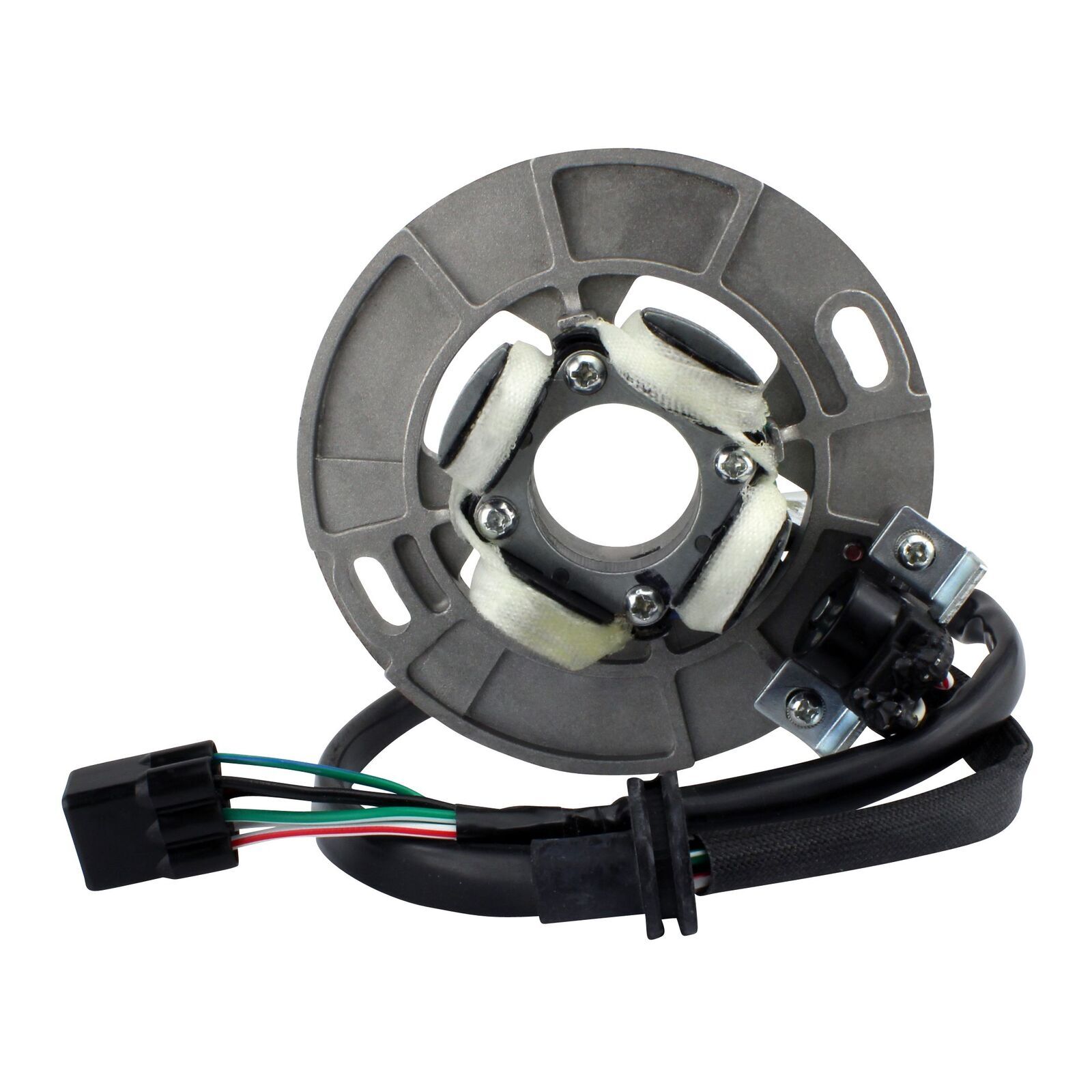

Stator Yamaha YZ65 '18-'24 & YZ85 '02-'24 (RMS010-108281)

Free Shipping on Orders Over $50!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

Direct replacement to your original unit.

  • Plug-and-play direct fit easy installation.
  • Made with the highest grade of lamination materials.
  • Features the highest grade of copper winding resistant to 200 degrees Celsius.
  • Includes a pick up pulsar coil.
  • Comes with connectors.
  • Includes a rubber grommet.
  • Back plate is included.
  • All products are tested before shipping.

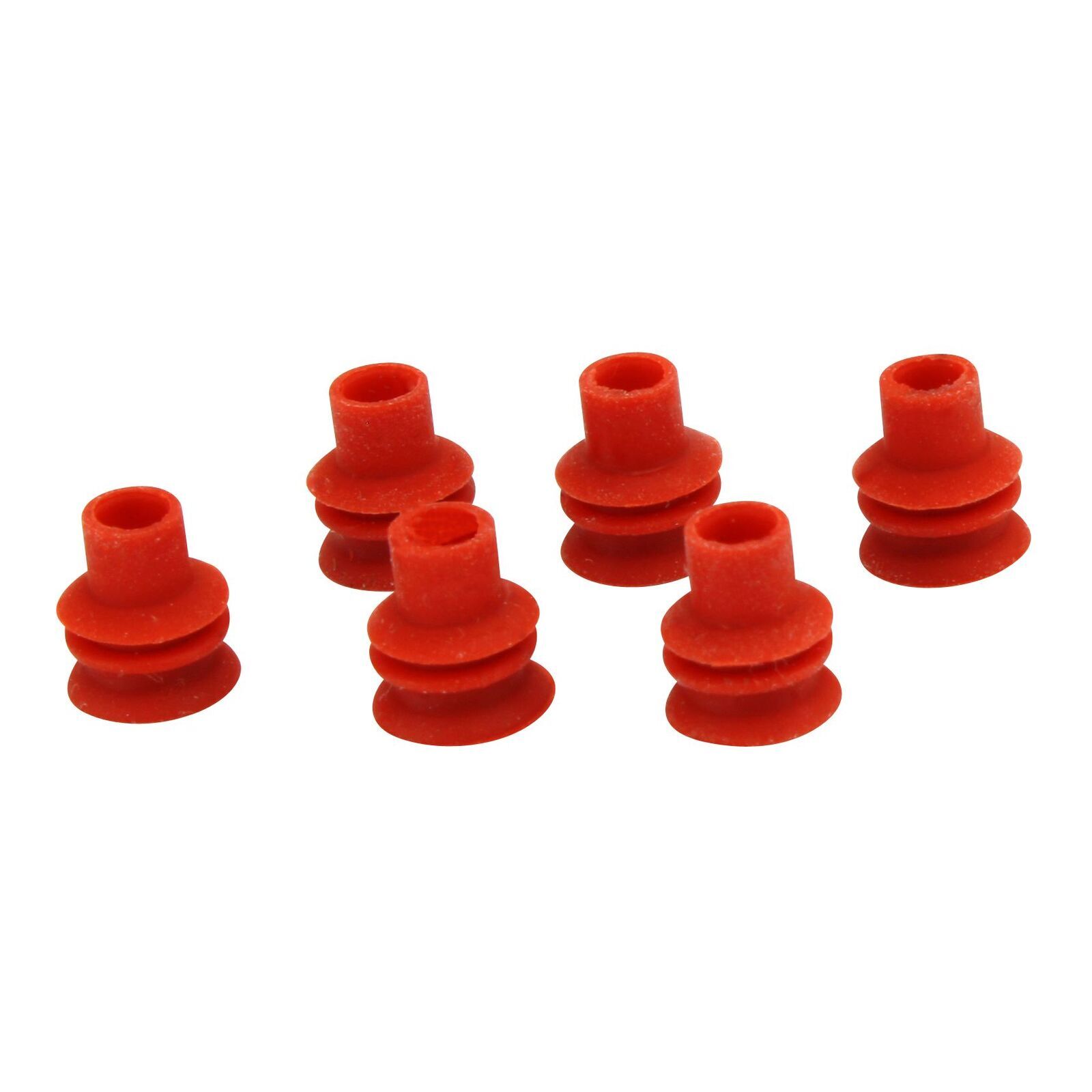

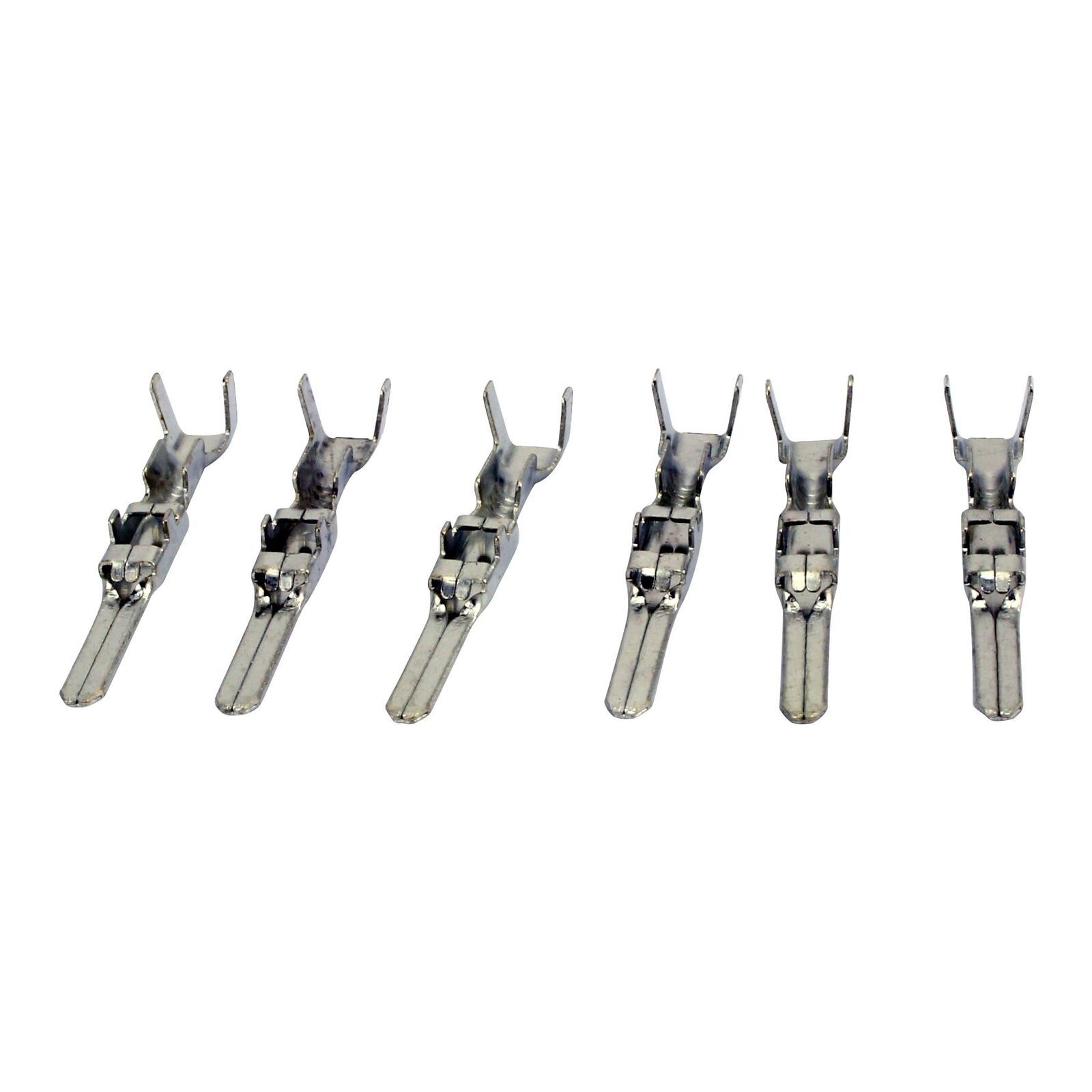

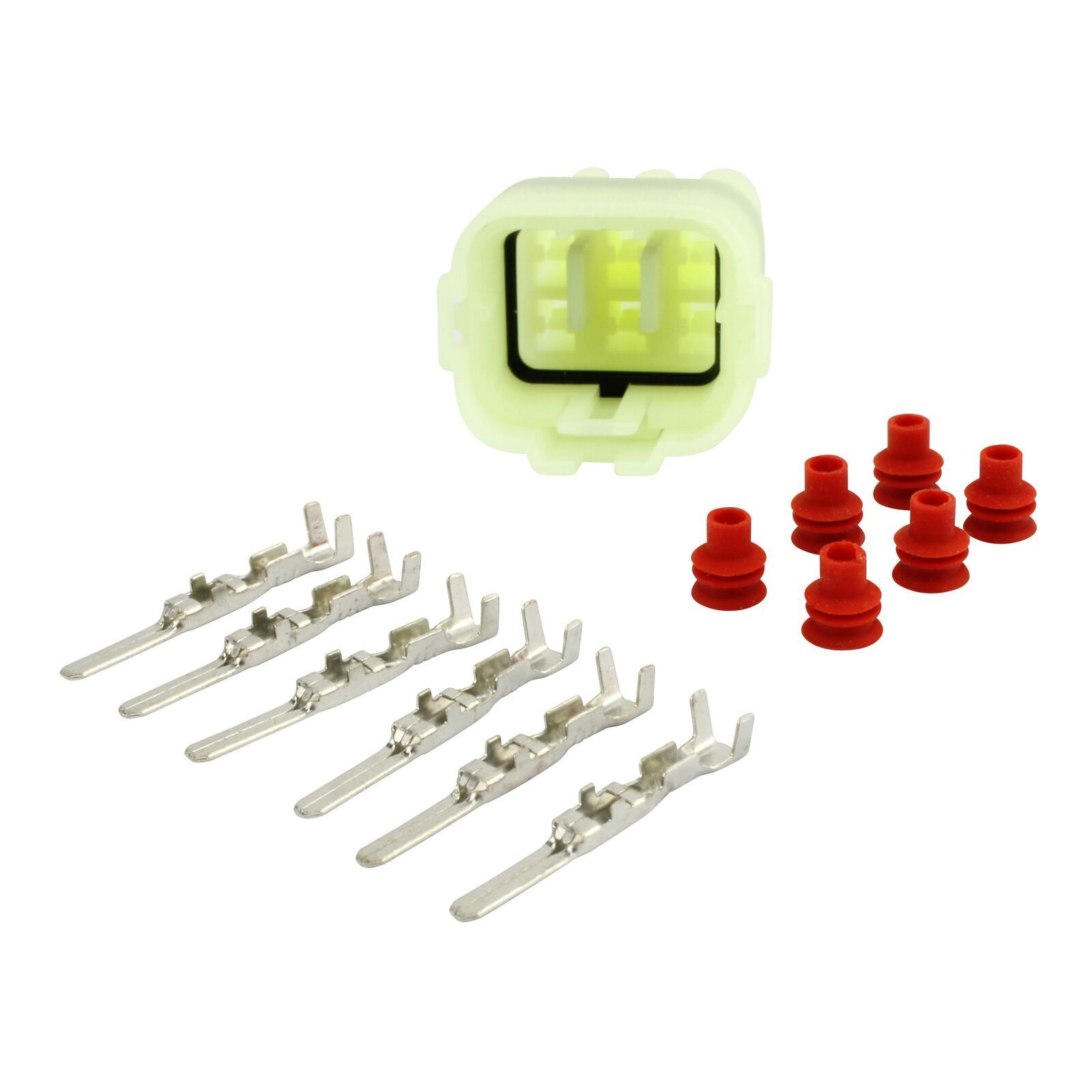

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

Dimensions:

  • Interior diameter: 27 mm
  • Exterior diameter: 109 mm
  • Thickness: 32.6 mm
  • Length of wires (stator to grommet): 135 mm
  • Length of wires (grommet to plug): 410 mm
  • Length of pickup coil's wire to grommet: 135 mm

Other Specifications:

  • Number of wires: 6
  • Number of plugs: 1
  • Number of pins: 6
  • Number of poles: 4
  • Wire to wire resistance:
    • Pickup: White/Blue to White/Red = 293 ohms ±20%
    • Source: Green/White to Black/Red = 858 ohms ±20%
    • Source: Black to Green/Blue = 53 ohms ±20%
