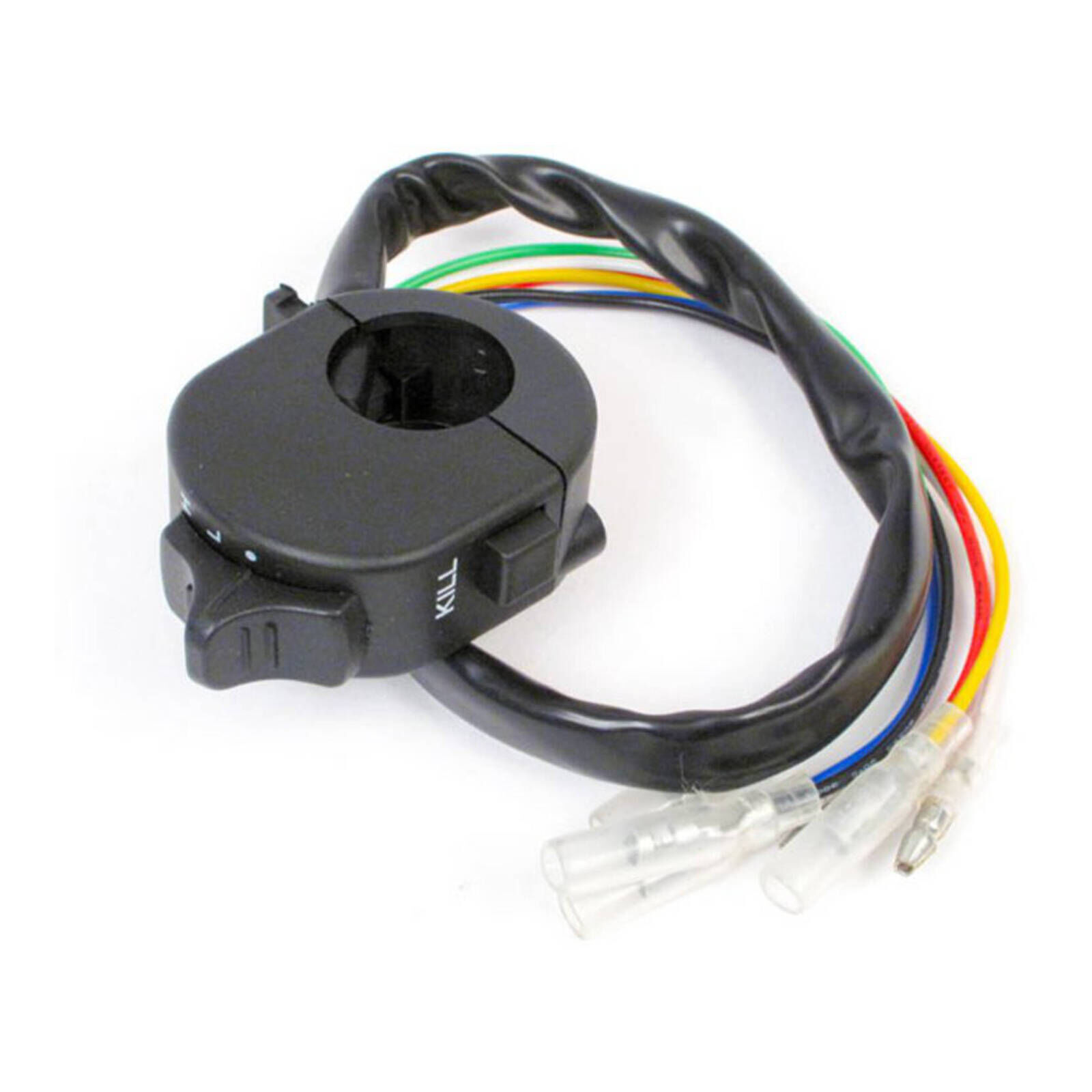

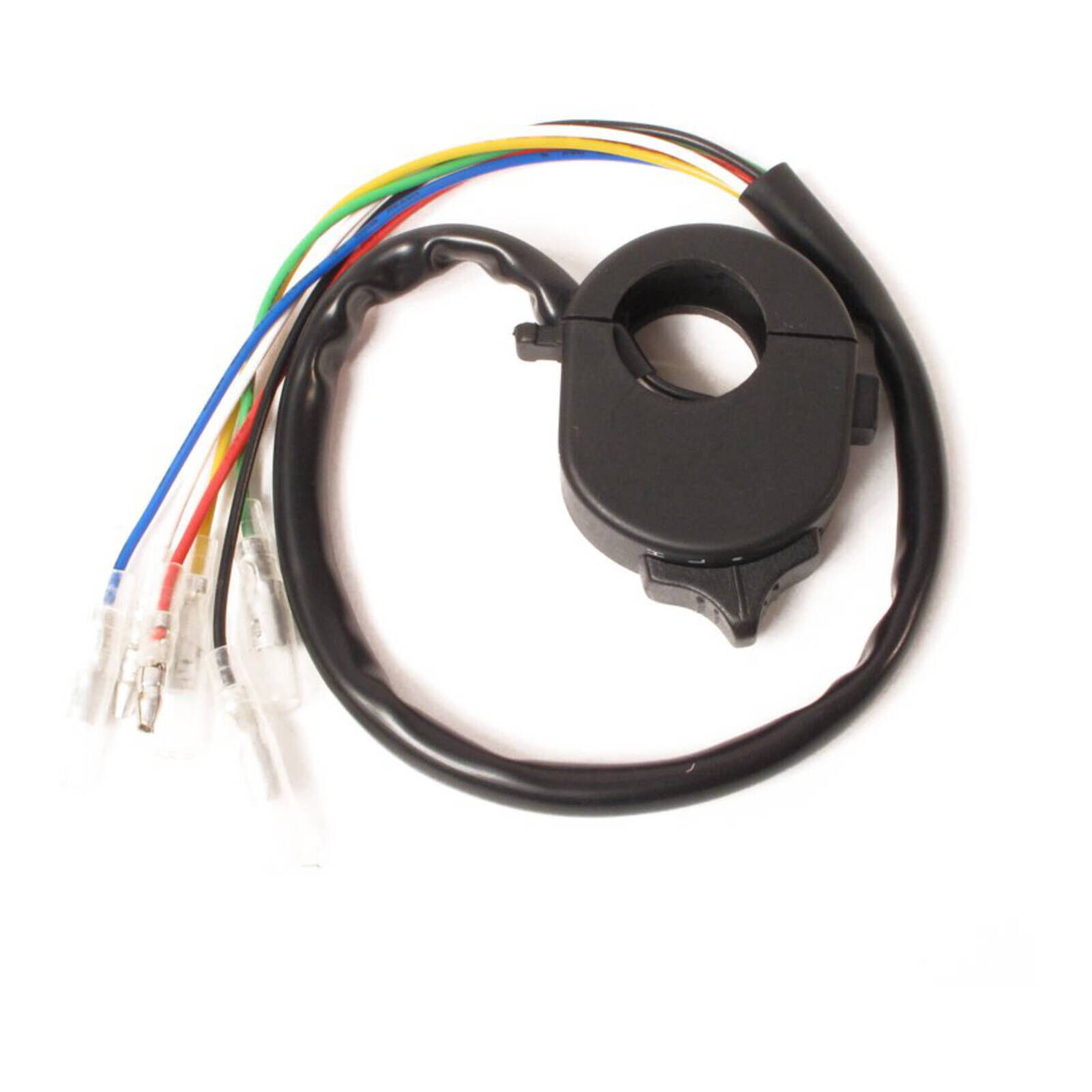

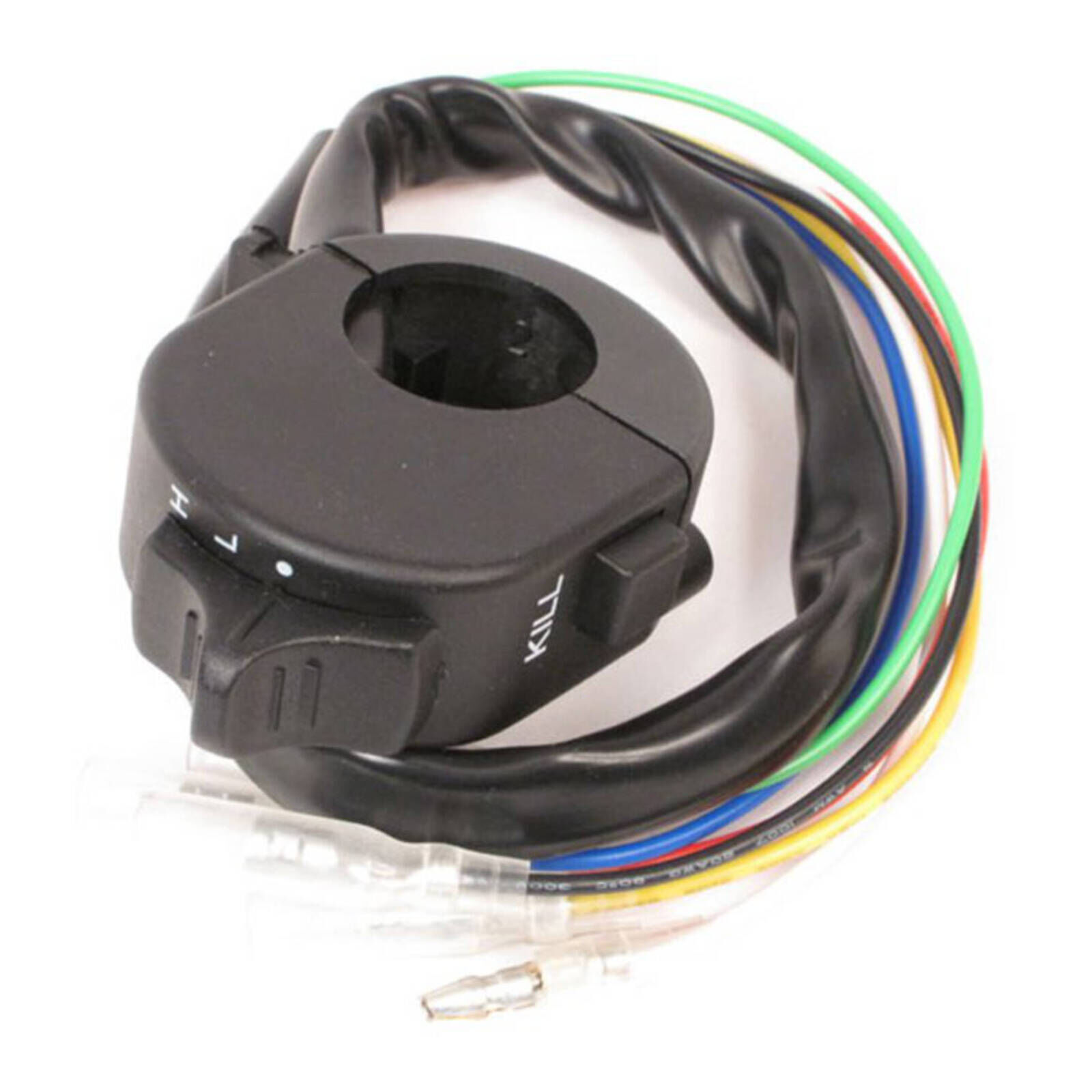

WHITES SWITCH BLOCK HEADLIGHT ON-OFF/HI-LO (20.7mm)

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

Boasting a sleek black and slim design the Whites Headlight Switch Block is a multi-purpose handlebar switch with a High Low and Off setting for your headlight and a kill switch. The switch block is pre-wired with an 18 length and bullet terminals for a quick and easy installation and is compatible with 7/8 handlebars. The block is only 20mm wide and 42mm high making it the perfect replacement for that bulky OEM block on your daily commuter or one of the custom machines.

Features:

  • Pre-wired 18 wire with bullet terminals.
  • Compatible with 7/8 handlebars.
  • Full wrap around design.
  • Three stage headlight switch high/low/off.
  • Includes kill switch.
  • Voltage Range - 11v - 15v
  • Max Amps - 2.5 amps
  • Material: ABS Plastic
  • Width: 20mm
  • Height: 42mm

Wiring Configuration:

  • Red: Positive
  • Black: Earth
  • White: Kill Switch
  • Green: Low Beam
  • Yellow: High Beam
  • Blue: Parking Light
