STATOR SUZUKI RMX 250 1989 -1998 (RM01385)

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

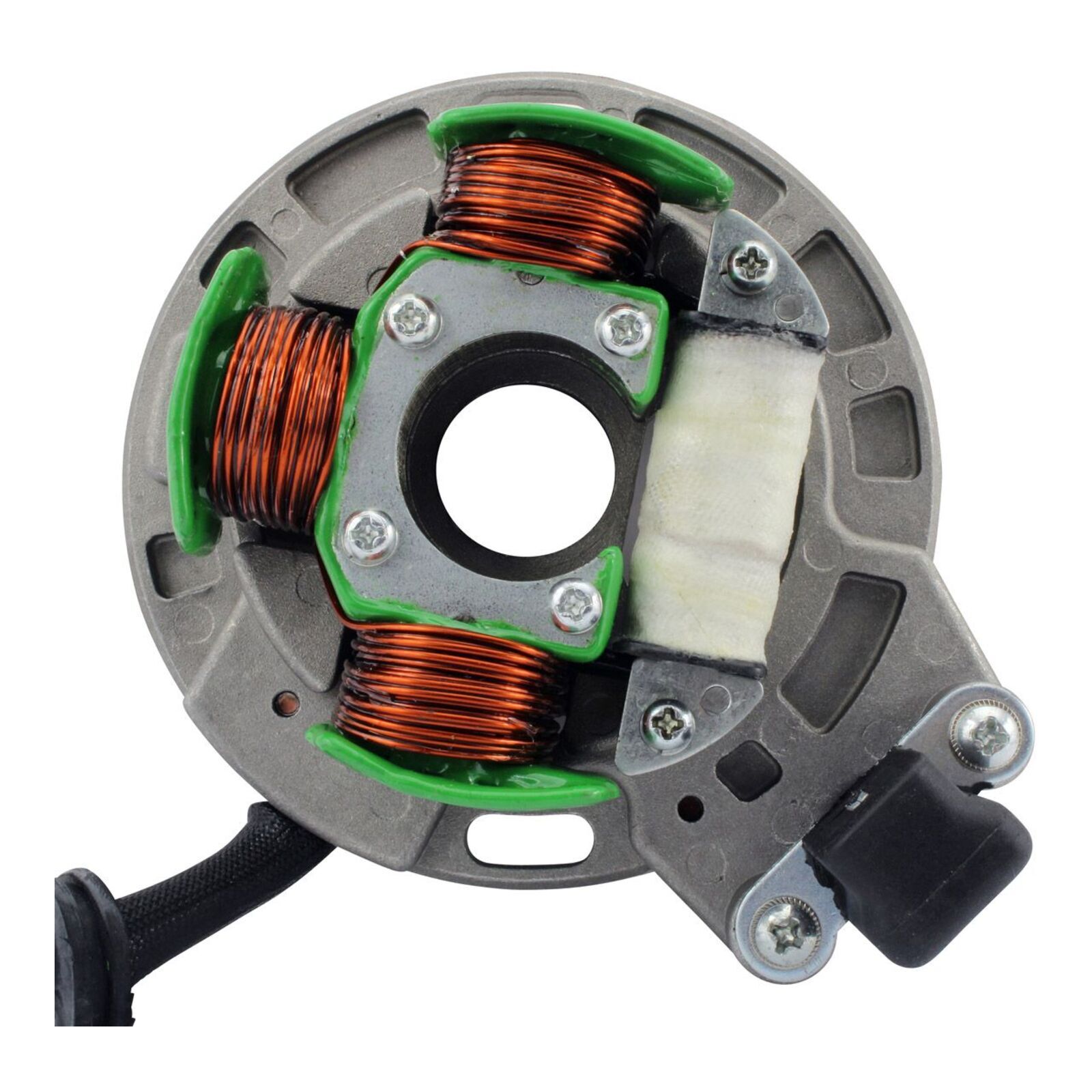

Brand new aftermarket stator.

  • Direct replacement to your original unit
  • Plug-and-play direct fit easy installation.
  • Highest grade lamination materials

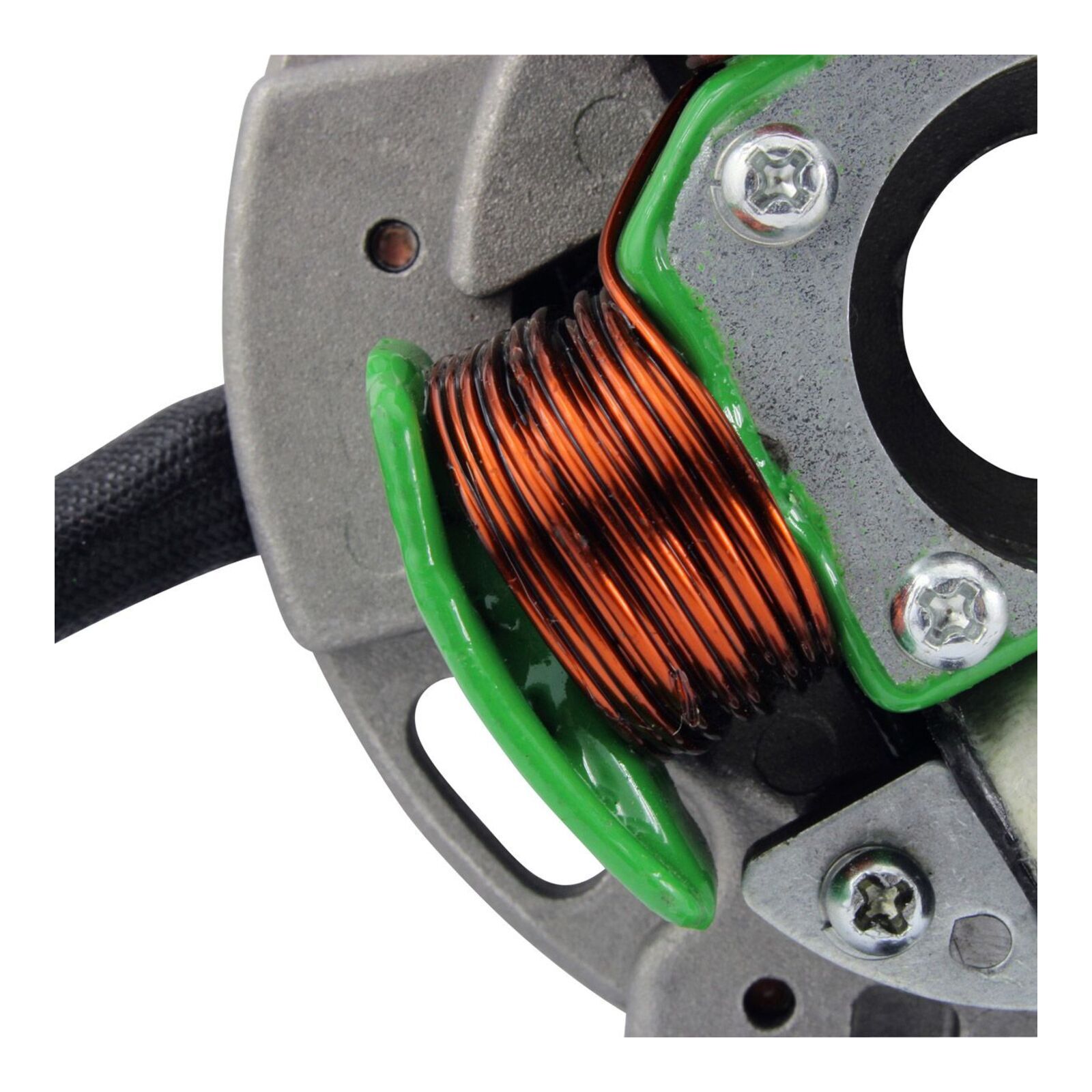

  • Highest grade copper windings resistant to 200 degrees Celsius.

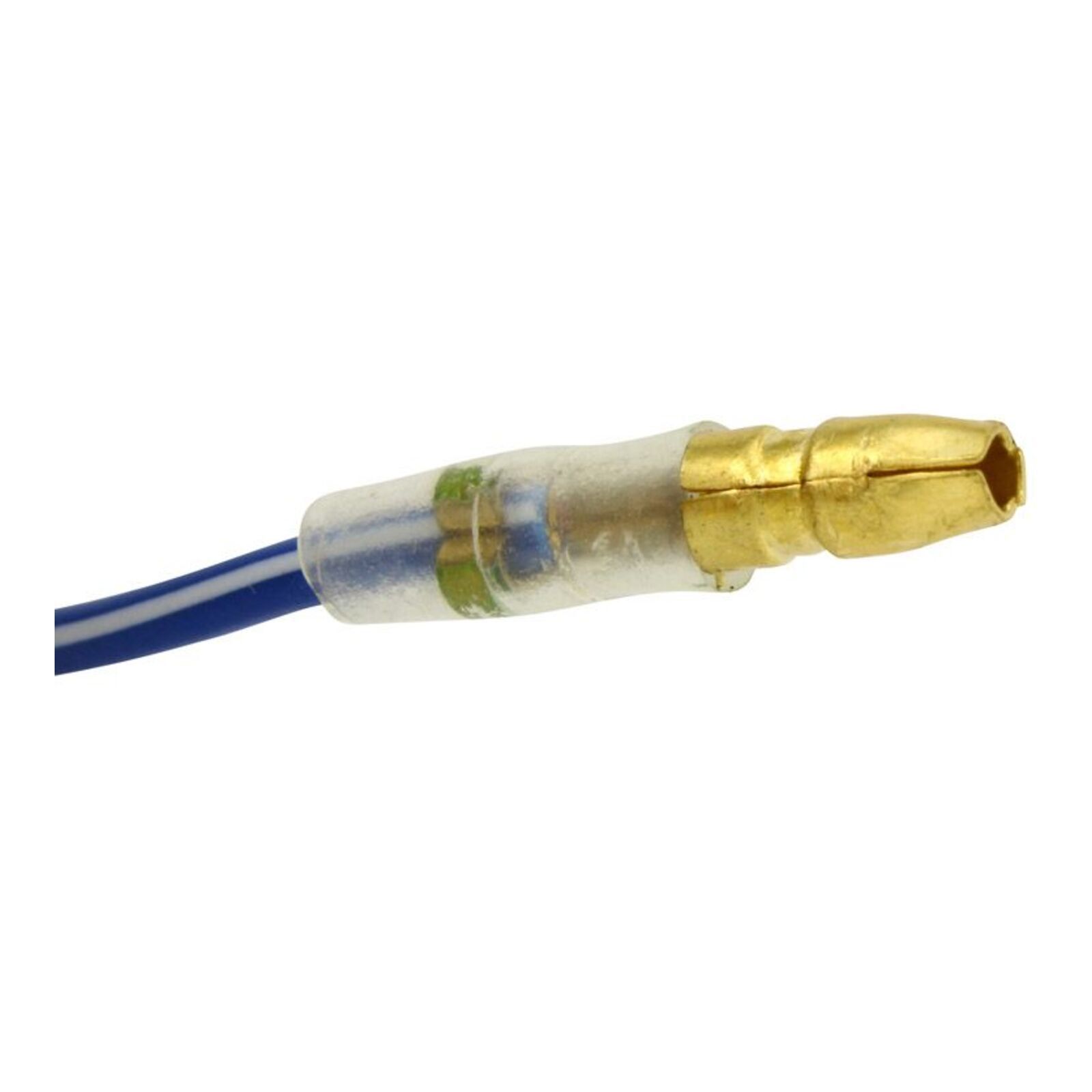

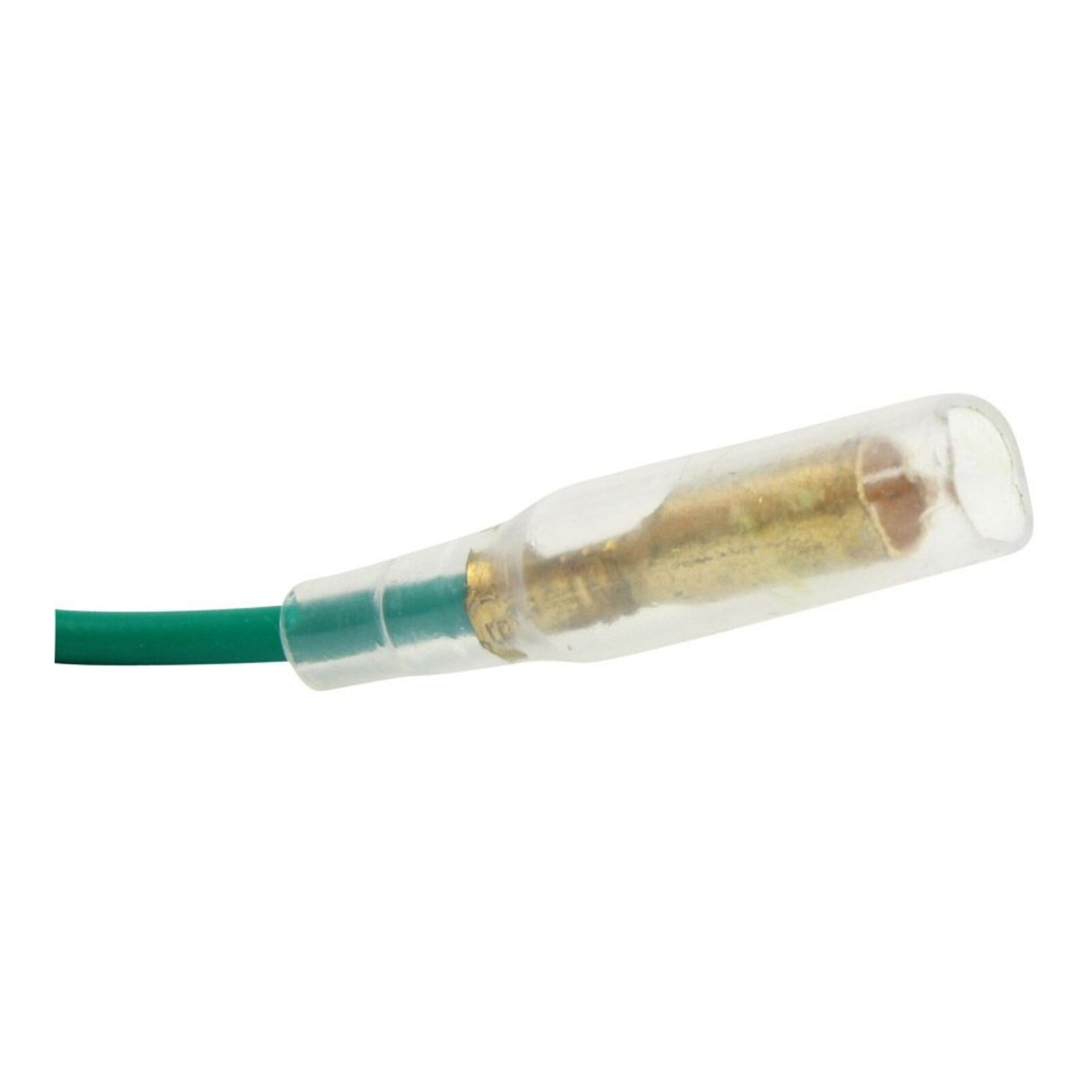

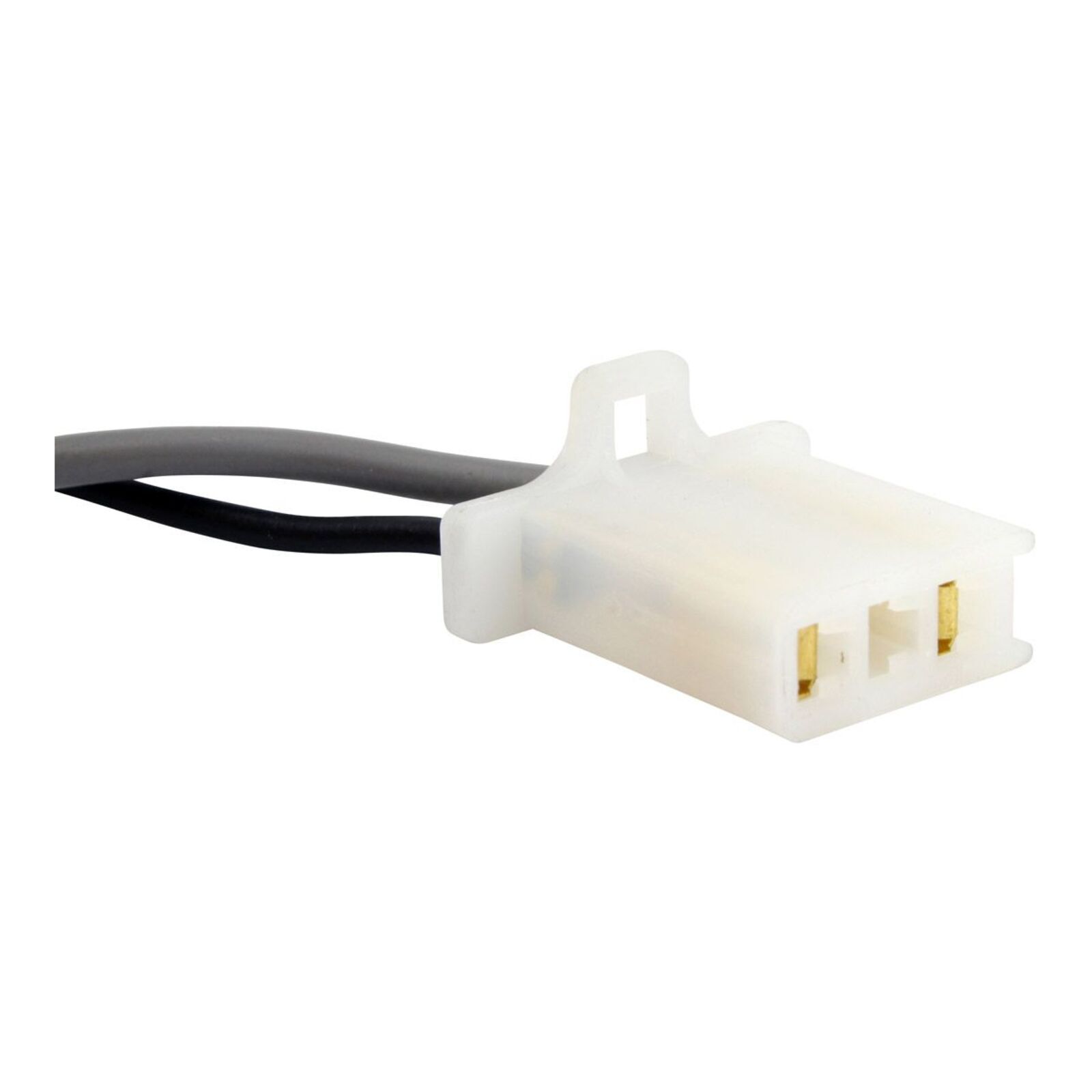

  • Connector included
  • Rubber grommet included
  • All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

  • Dimensions:

    • Interior Diameter: 29 mm
    • Exterior Diameter: 84 mm
    • Thickness: 14 mm
    • Length of Wires (Stator to Grommet): 20 mm
    • Length of Wires (Grommet to Plug): 500 mm
  • Other Specifications:

    • Number of Wires: 6
    • Number of Plugs: 4
    • Number of Pins: 6
  • Wire to Wire Resistance:

    • Alternator: Grey to Black/White = 0.04 ohms ±20%
    • Source: Black/Red to White/Red = 134 ohms ±20%
