STATOR + MITSUBISHI FLYWHEEL ASSTD APR MODEL (RMS900-104929)

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

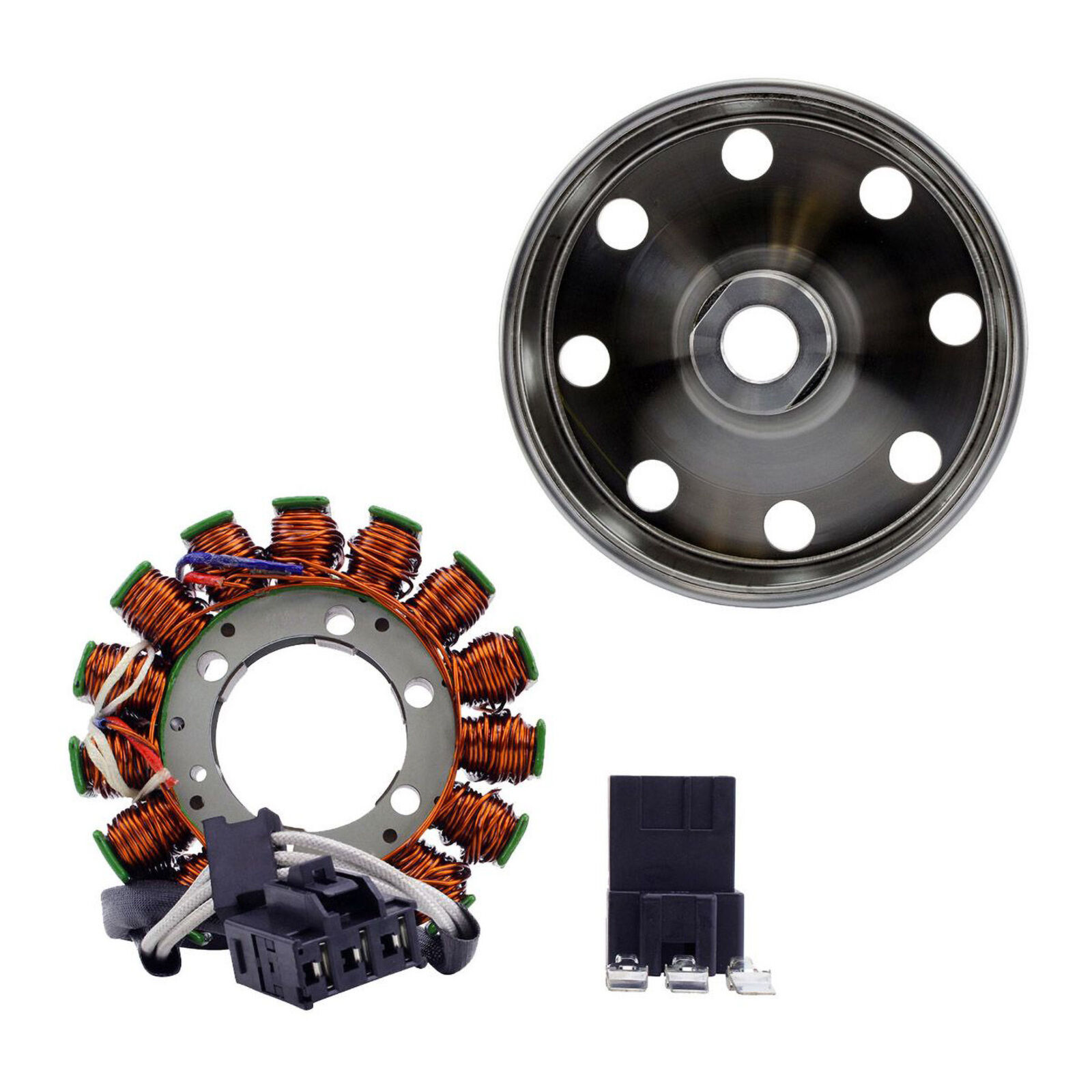

Brand New kit Flywheel + Generator Stator

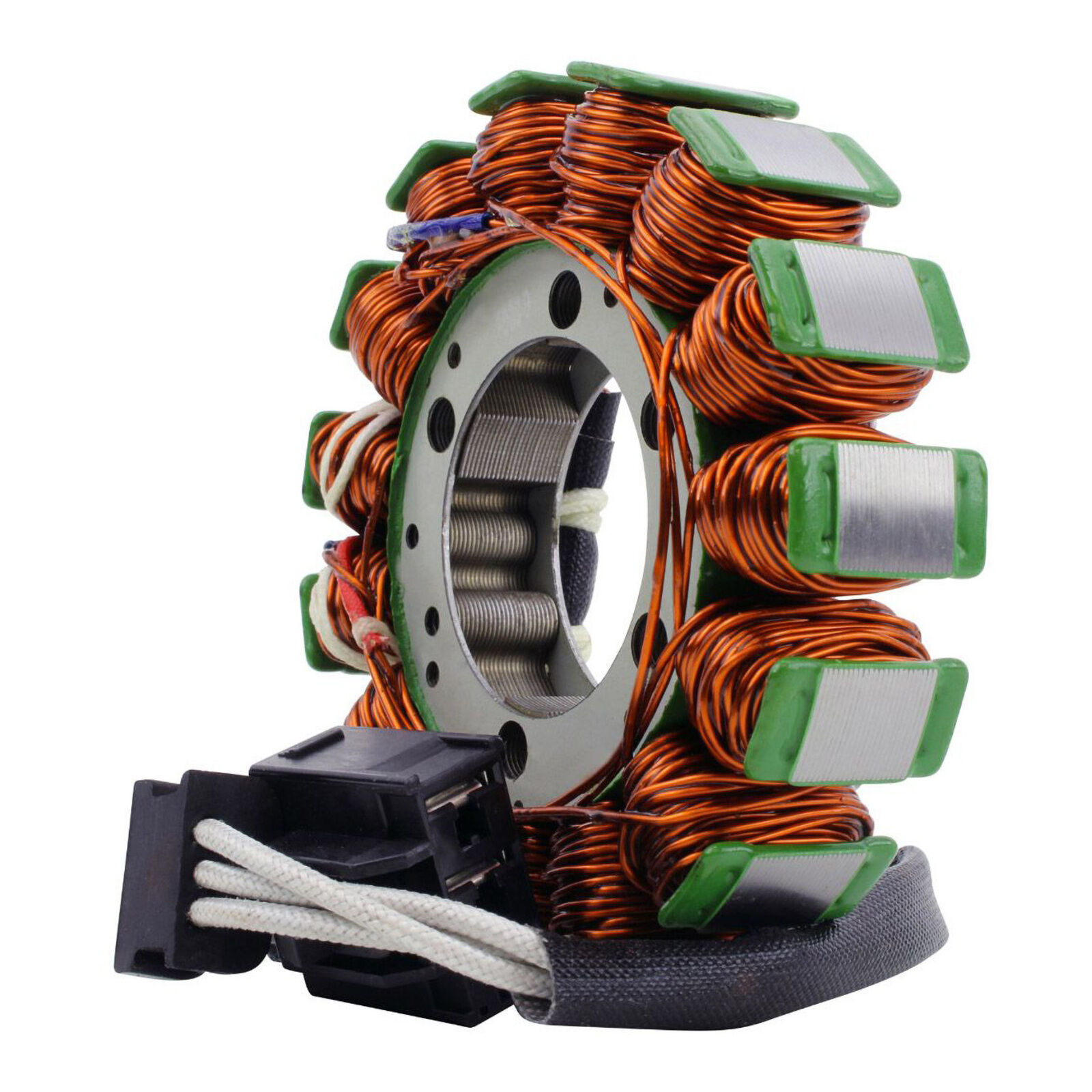

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play direct fit easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Generator Stator Dimensions:

  • Interior diameter: 42mm
  • Exterior diameter: 105mm
  • Thickness: 17mm
  • Length of wires stator to grommet: 90mm
  • Length of wires grommet to plug: 300mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3

Wire to wire resistance:

  • Alternator: Between each White = 0.4 ohms +/-20%

Flywheel Dimensions:

  • Exterior Diameter: 115mm
  • Interior Diameter: 108mm
  • Interior Diameter Center Housing: 16mm
  • Exterior Diameter Center Housing: 24mm
  • Thickness (exterior): 30mm
  • Thickness (interior): 33mm

Please Note: This kit is compatible with RSV4 that have an engine number equal to or lower than 3413 otherwise you will need RMS900-103848. On rare occasion this kit will work with Tuono V4. This kit includes a MITSUBISHI flywheel.

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above will void any warranty.
