STATOR KAWASAKI NINJA 250 R '08-12 (RMS010-101490)

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

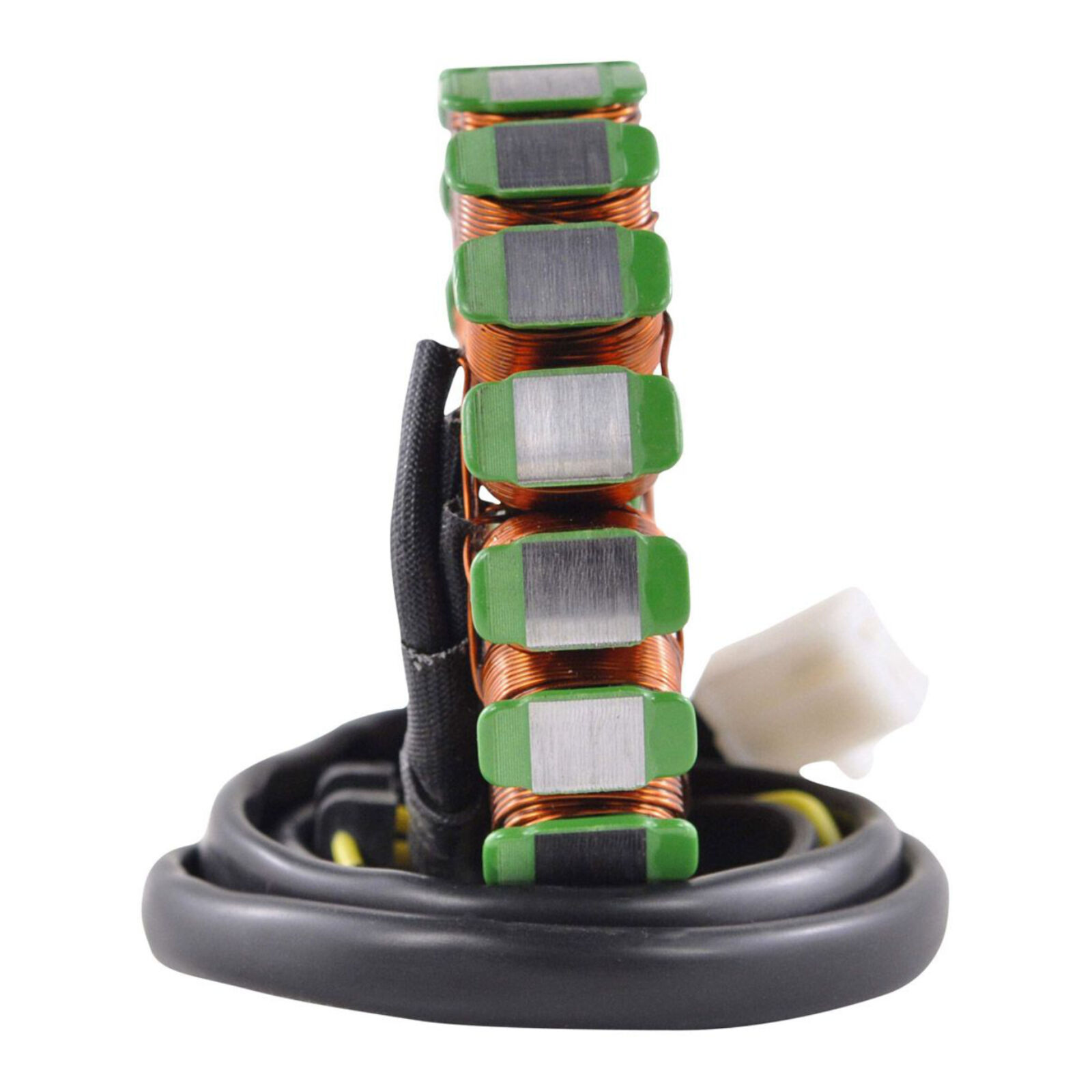

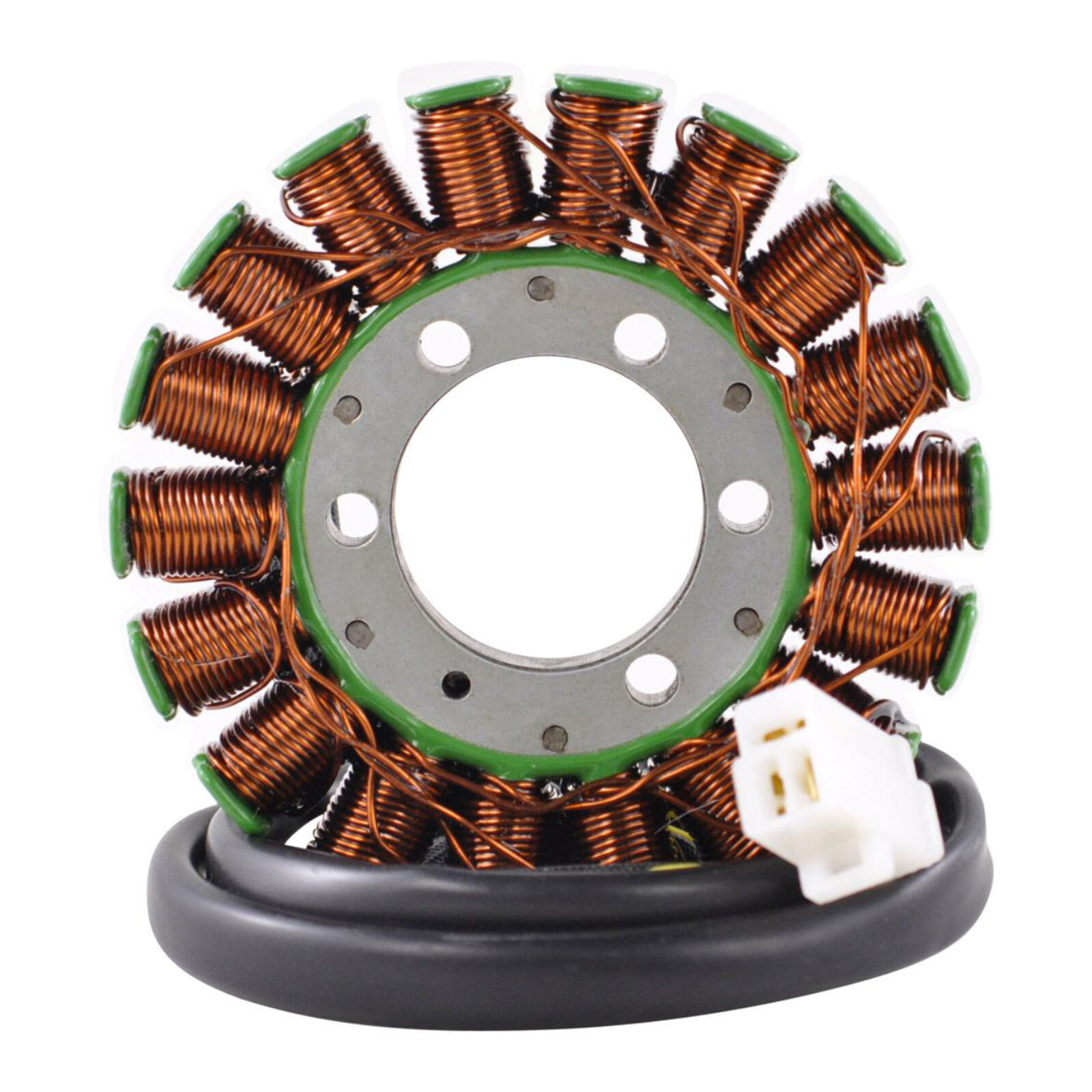

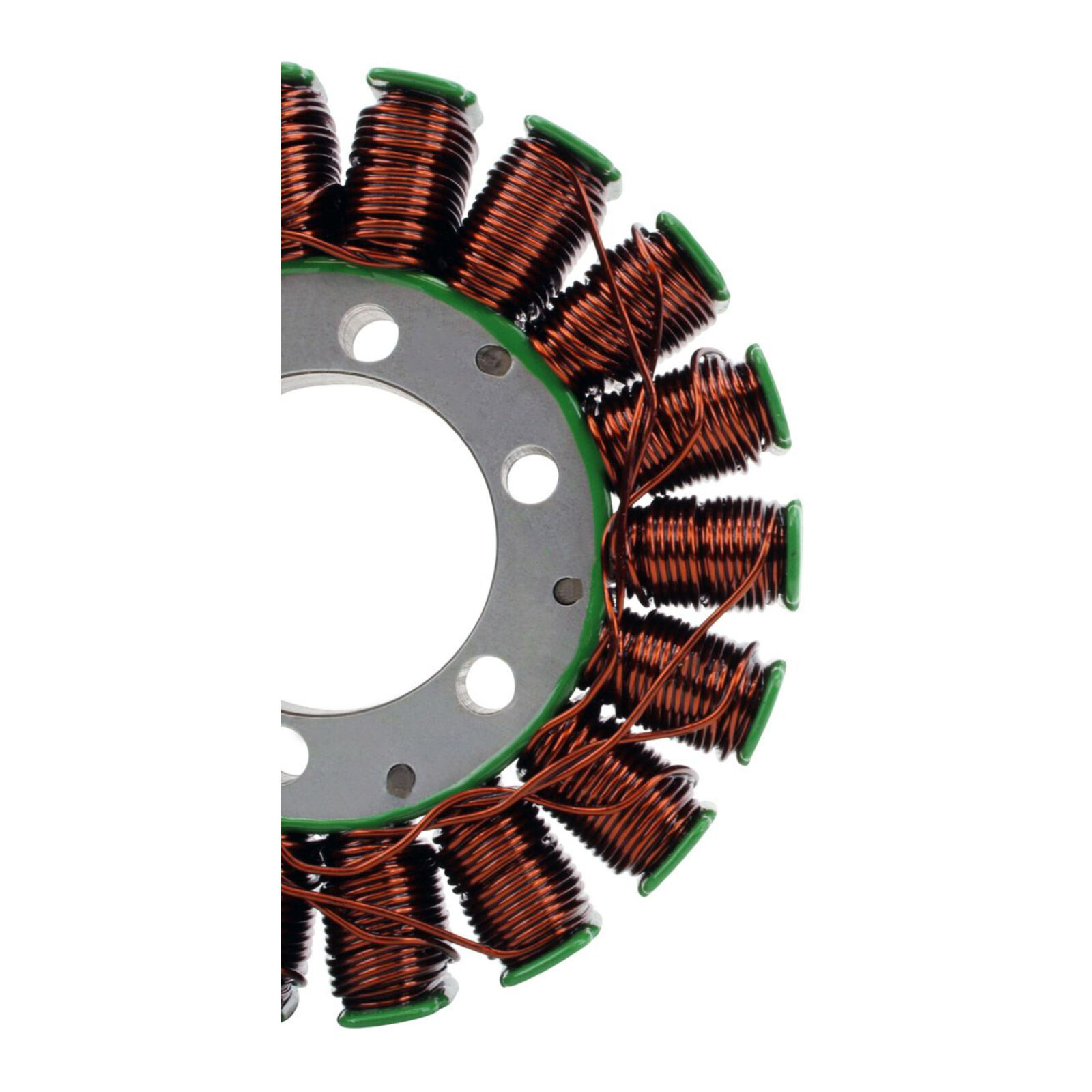

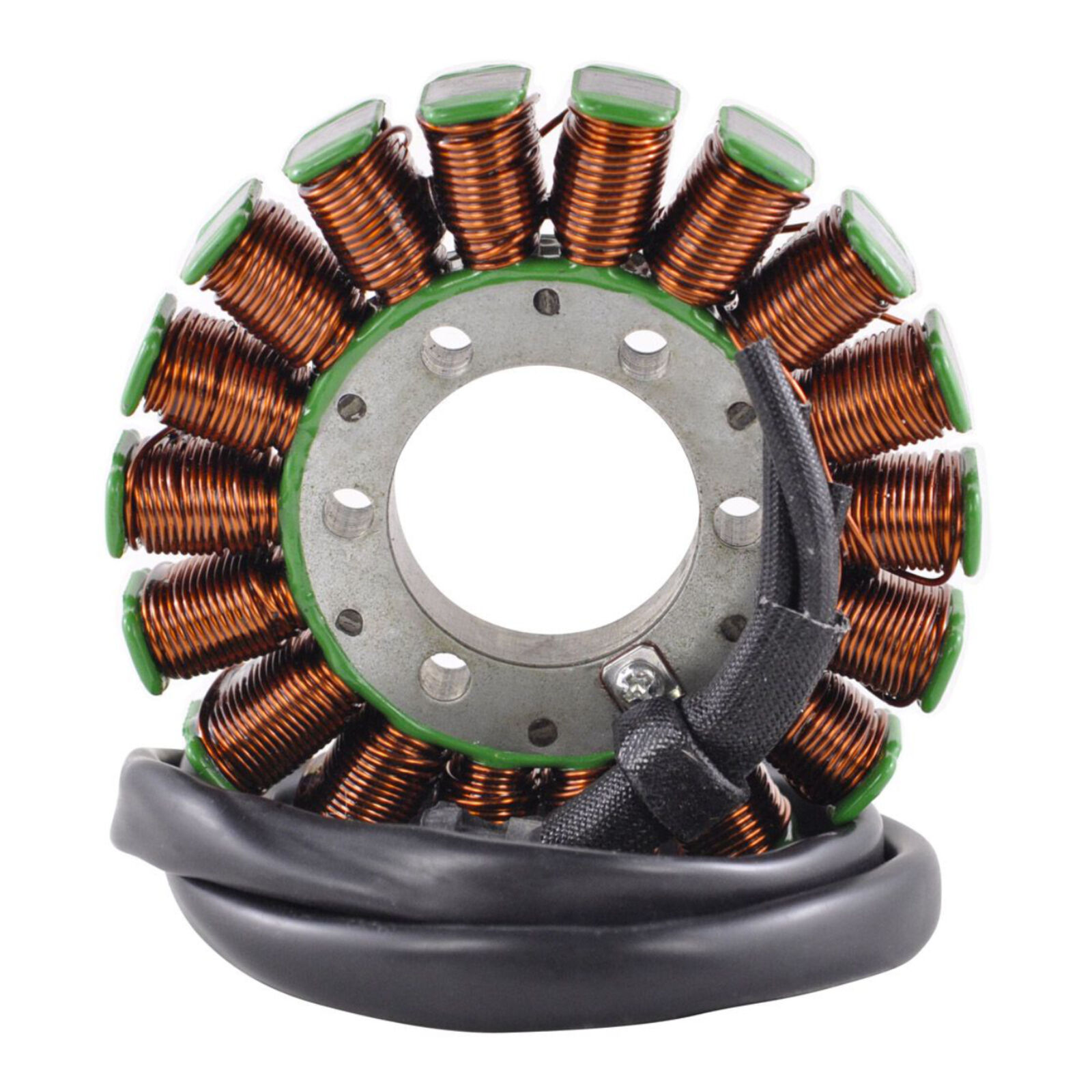

Brand new aftermarket generator stator

  • Direct replacement to your original unit
  • Plug-and-play direct fit easy installation
  • Highest grade lamination materials
  • Highest grade copper windings resistant to 200 degrees Celsius.

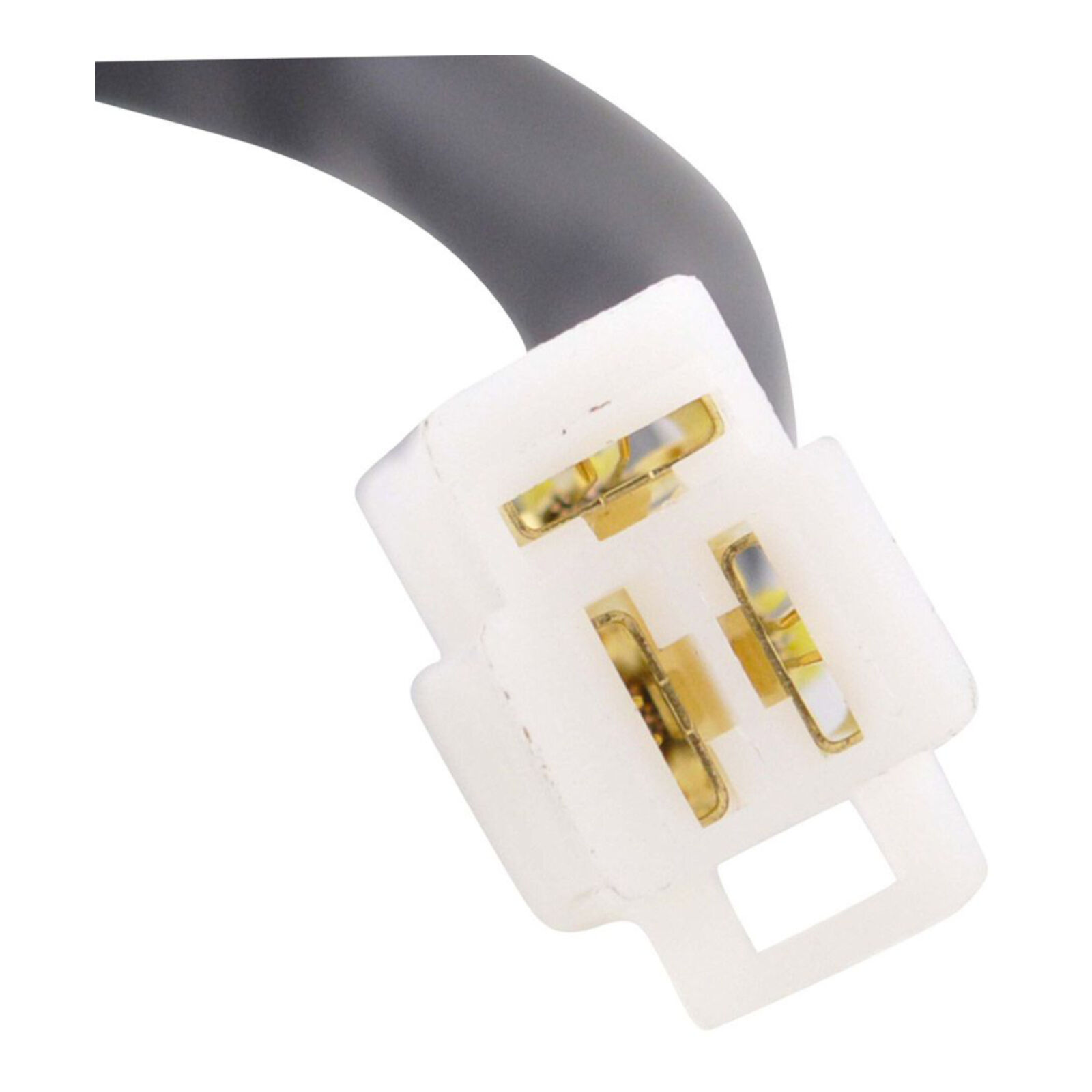

  • Connector included
  • Rubber grommet included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:

  • Interior diameter: 38 mm
  • Exterior diameter: 107 mm
  • Thickness: 15 mm
  • Length of wires stator to grommet: 180 mm
  • Length of wires grommet to plug: 780 mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3

Wire to wire resistance:

  • Alternator : Yellow to Yellow = 0.4 ohms +-20%

Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt have the battery load tested or replaced.
