STATOR + GASKET YAM YXR700 YXM700 YXC700 90-97 (RM01191G)

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

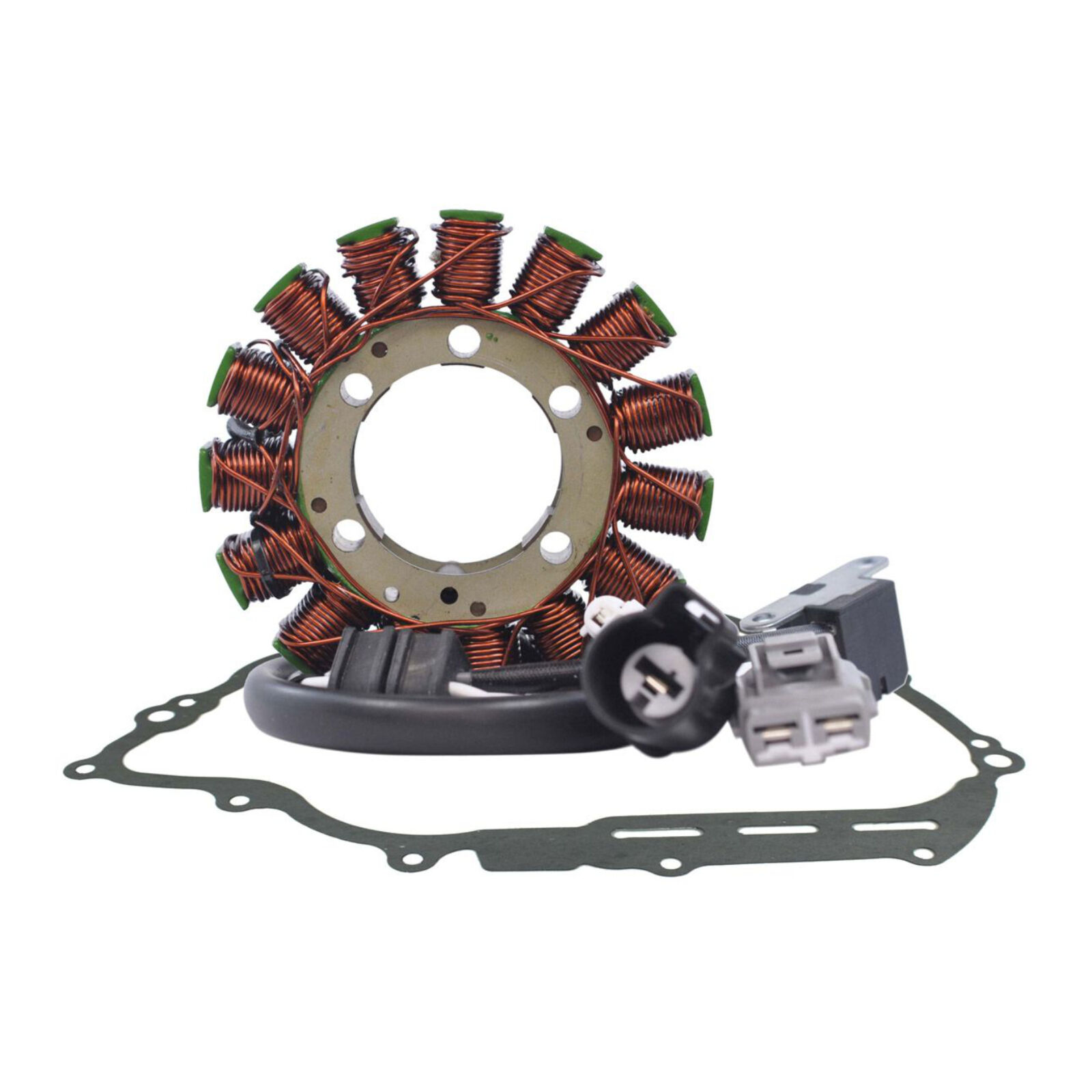

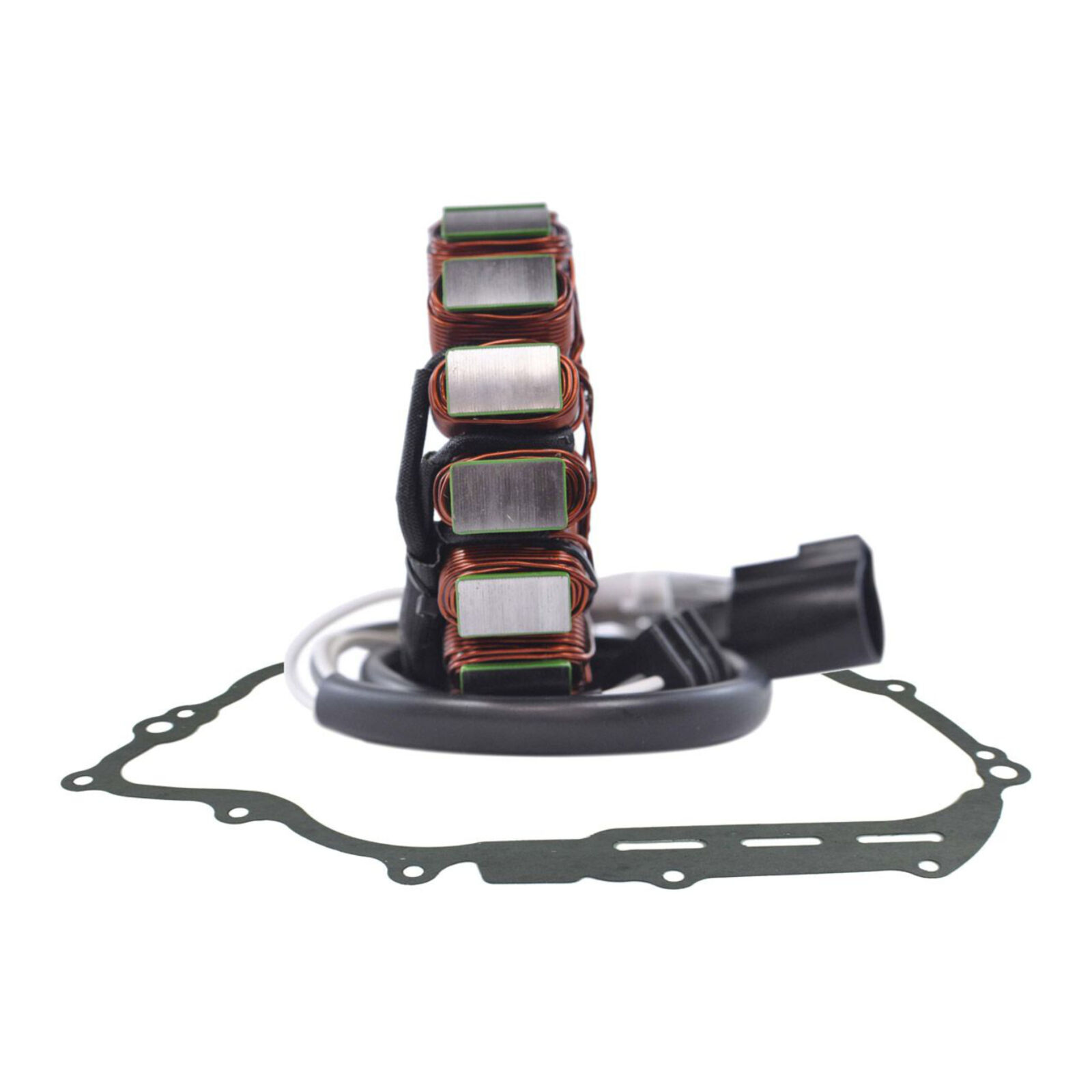

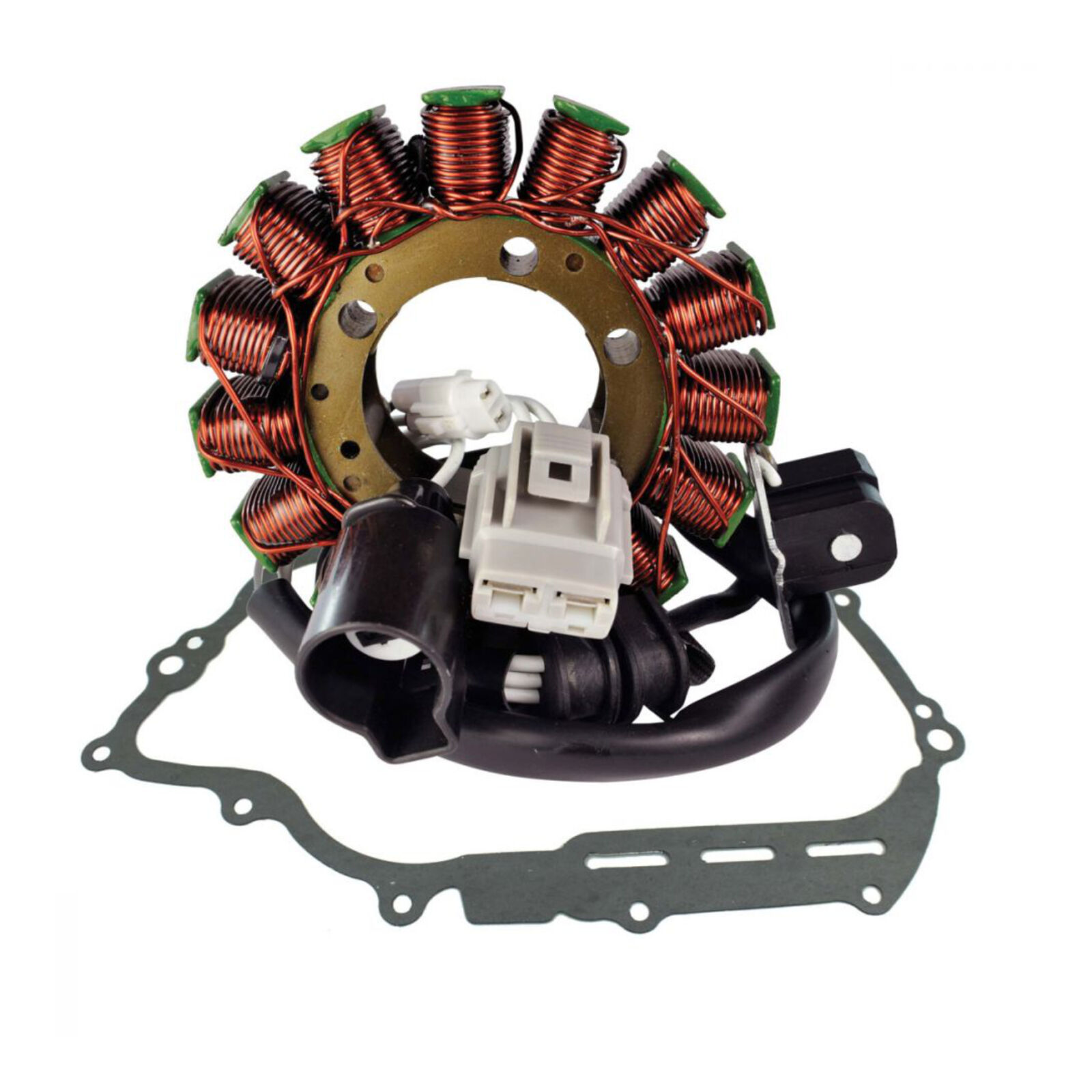

Brand new Kit Stator + Crankcase Cover Gasket

  • Direct replacement to your original unit
  • Plug-and-play direct fit easy installation.
  • All products shipped are tested

Stator:

  • The highest grade of lamination materials
  • The highest grade of copper windings resistant to 200 degrees Celsius.
  • Pick up pulsar coil included

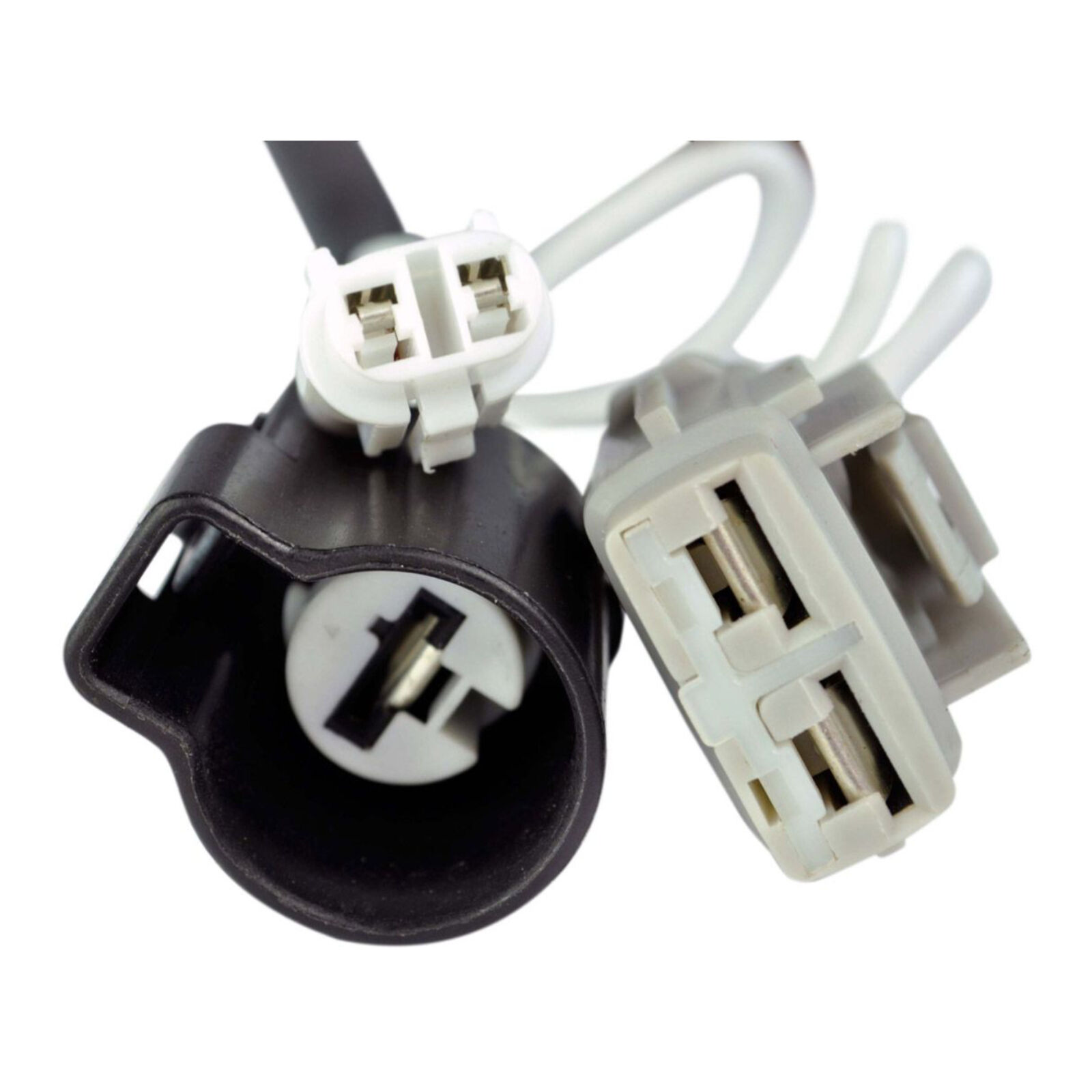

  • Connector included
  • Rubber grommet included

Specifications:

Dimensions Stator:

  • Interior diameter: 41 mm
  • Exterior diameter: 105 mm
  • Thickness: 19 mm
  • Length of wires stator to grommet: 65 mm
  • Length of wires grommet to plug: 400 mm
  • Length of pickup coil's wire to grommet: 65 mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 3
  • Number of pins: 5

Wire-to-wire resistance:

  • Alternator: White to White = 0.4 ohms +/-20%
  • Pickup: White to Grey = 500 ohms +/-20%

Find a Store

Details about our showrooms & trading hours are available on our 'Contact Us' page.

Returns & Exchanges

Details about the returns process are available on our 'Returns Policy' page.

SKU RMS01191G
Brand RMSTATOR
Shipping Weight 0.5000kg
