RM Surepower ECM Bypass Assorted Pol (Refer to Fitments) (RMS900-108112)

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

This replacement kit is only meant to the bypass the internal voltage regulator on Polaris ATV/UTVs that use the large silver SurePower ECM module with 2 large wiring connectors on opposite sides of the unit. Please confirm your OEM part number on your unit matches the list below.

Replaces these OEM Numbers :

  • 4011089
  • 4011090
  • 4011598
  • 4011375
  • 4011657
  • 4011226
  • 4011517
  • 4011240

Specifications:

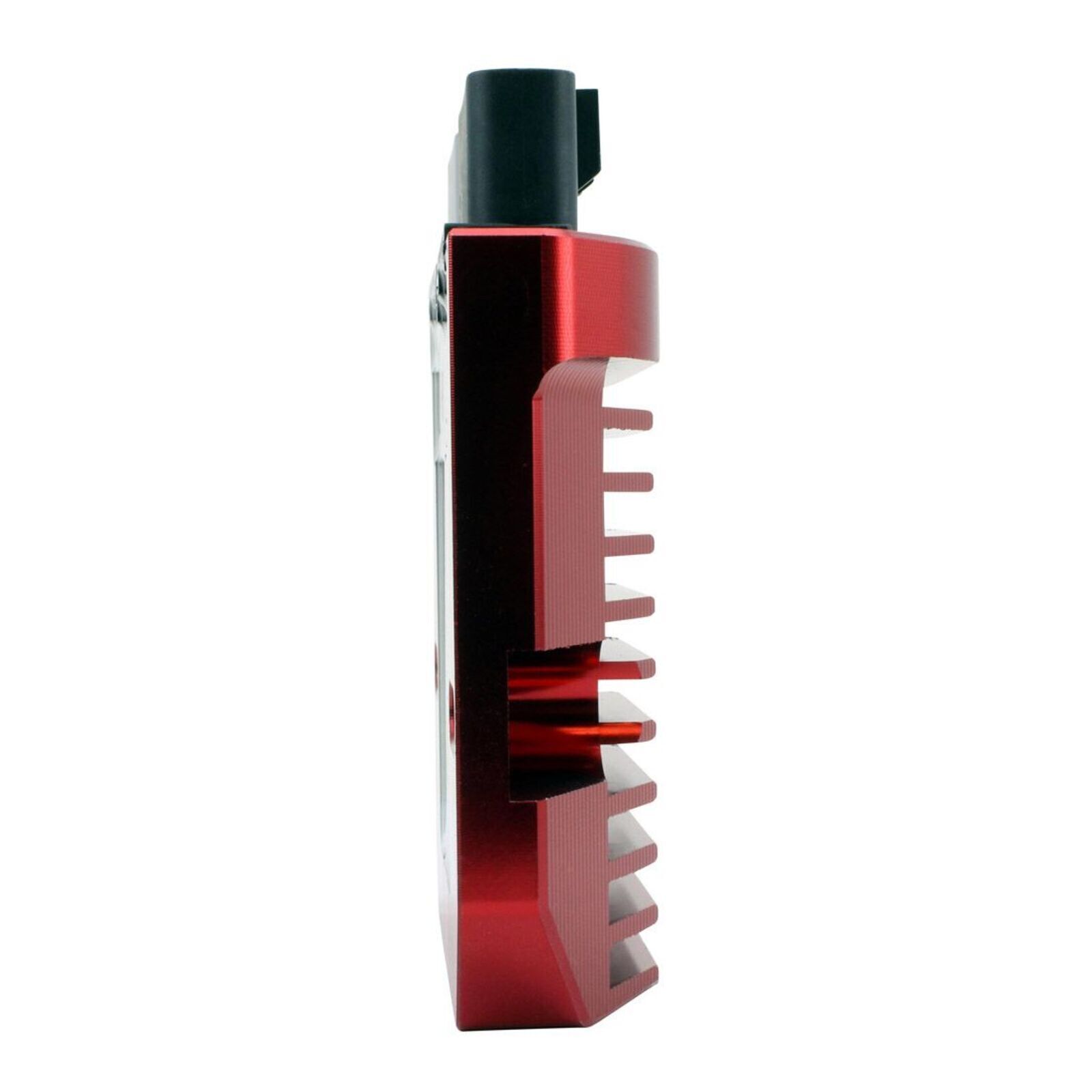

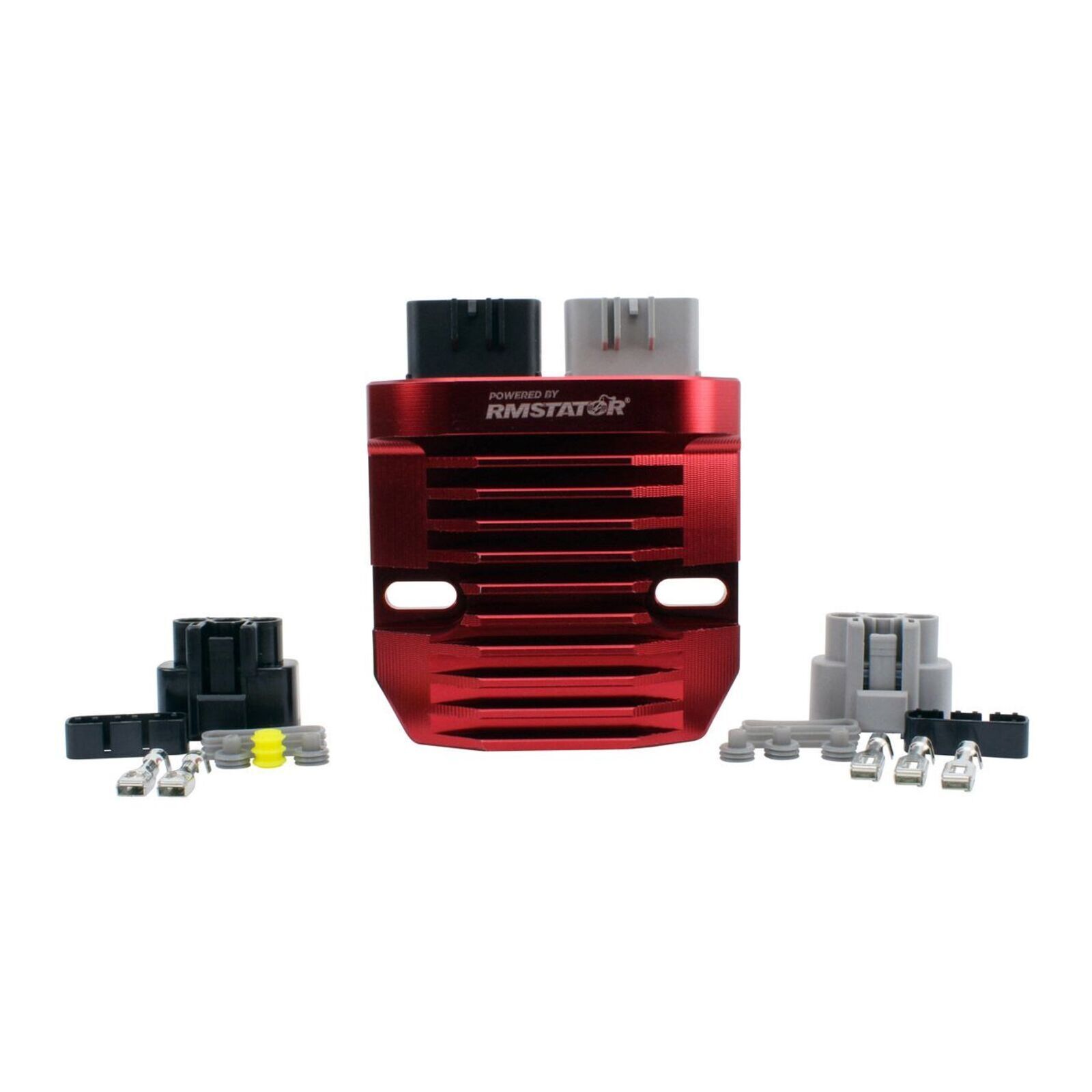

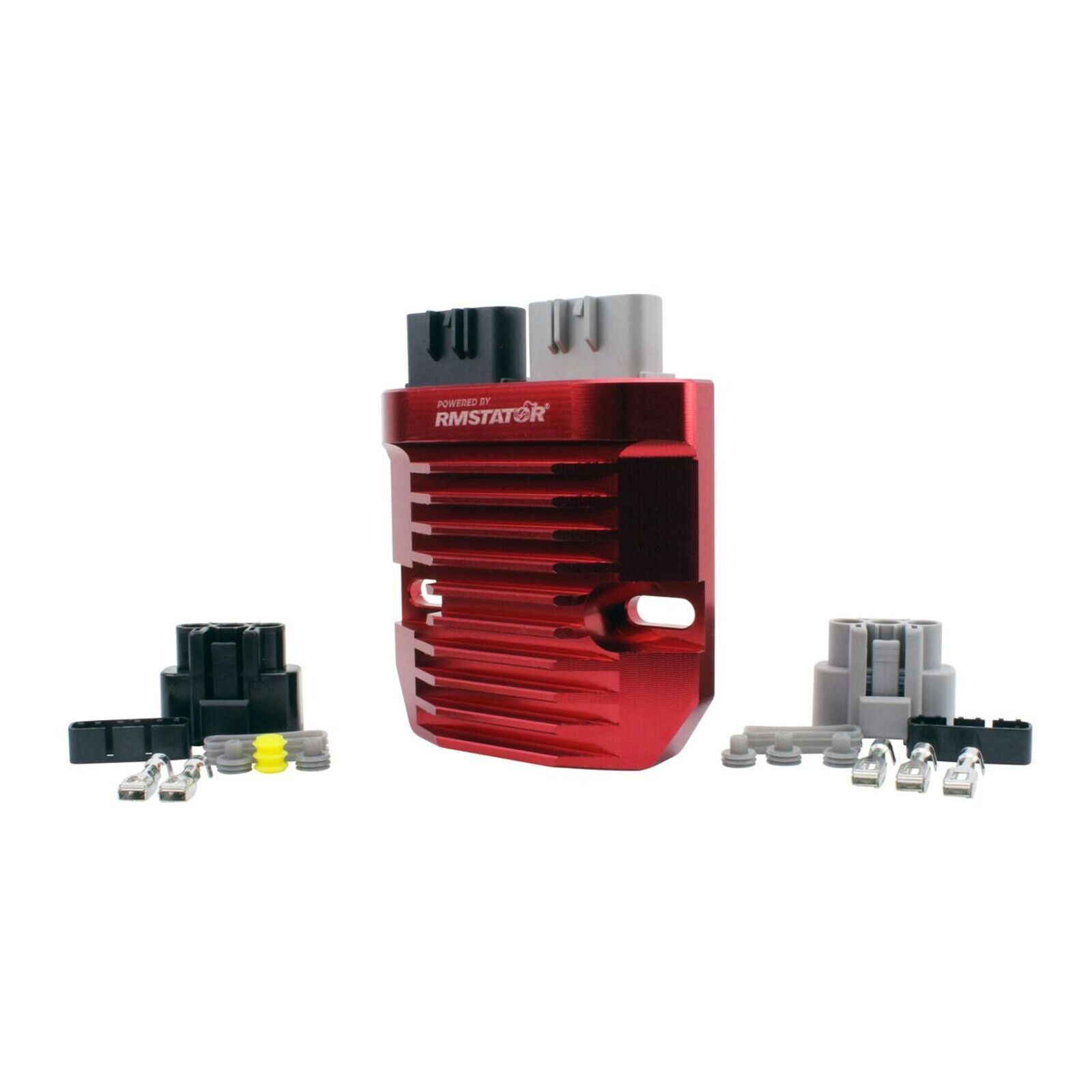

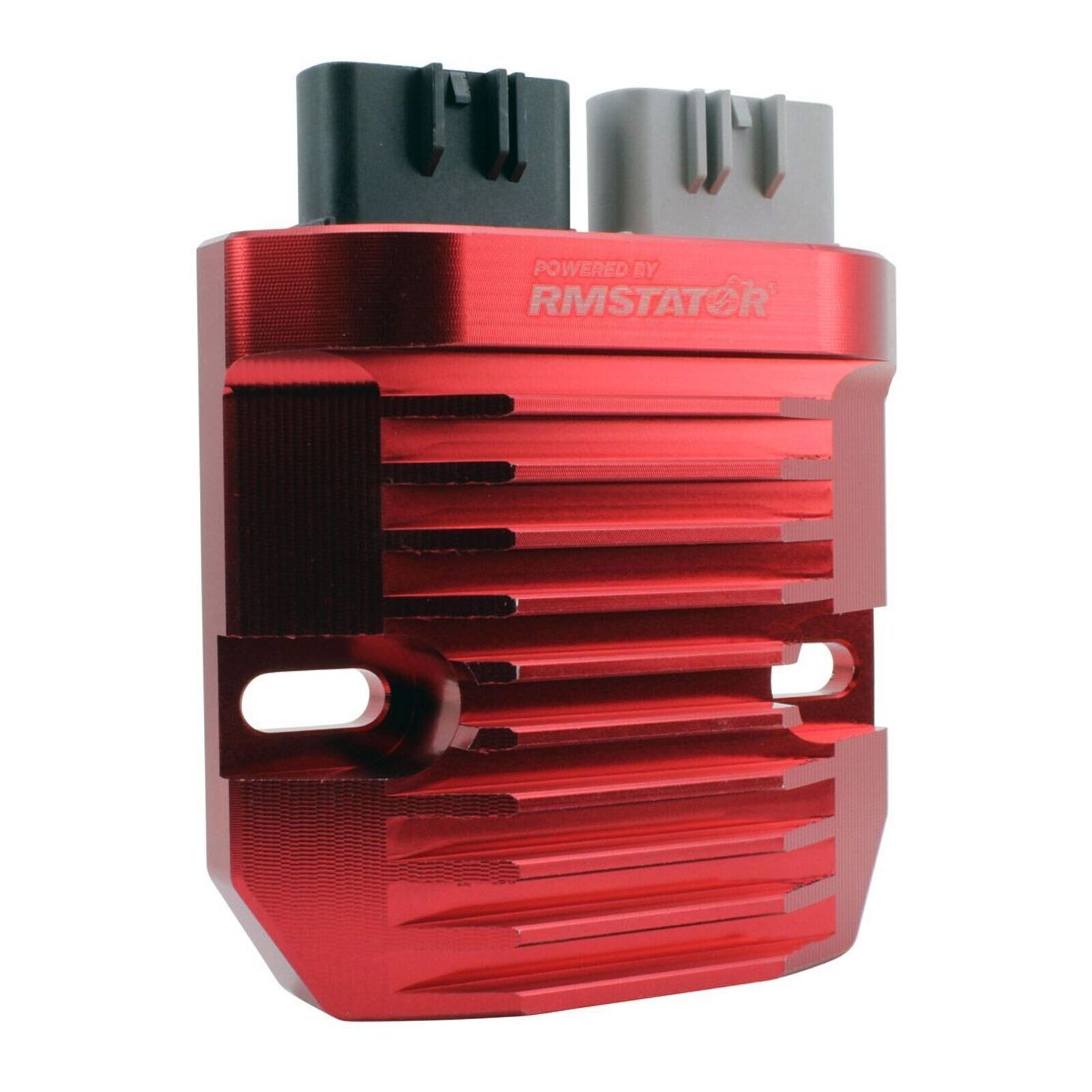

Red Machined Aluminum Mosfet Regulator:

  • Dimensions:
    • Width: 103 mm
    • Length: 103 mm
    • Height: 28 mm
    • Fixation holes center to center: 80 mm
  • Other specifications:
    • Number of plugs: 2
    • Number of pins: 5
    • Minimum Charging Voltage: 14.5 V +/- 0.5 V
    • Maximum Charging Current: 50 A / 500 W
    • Open Circuit Voltage: < 15 V
    • Operation Temperature: -20°C to 85°C

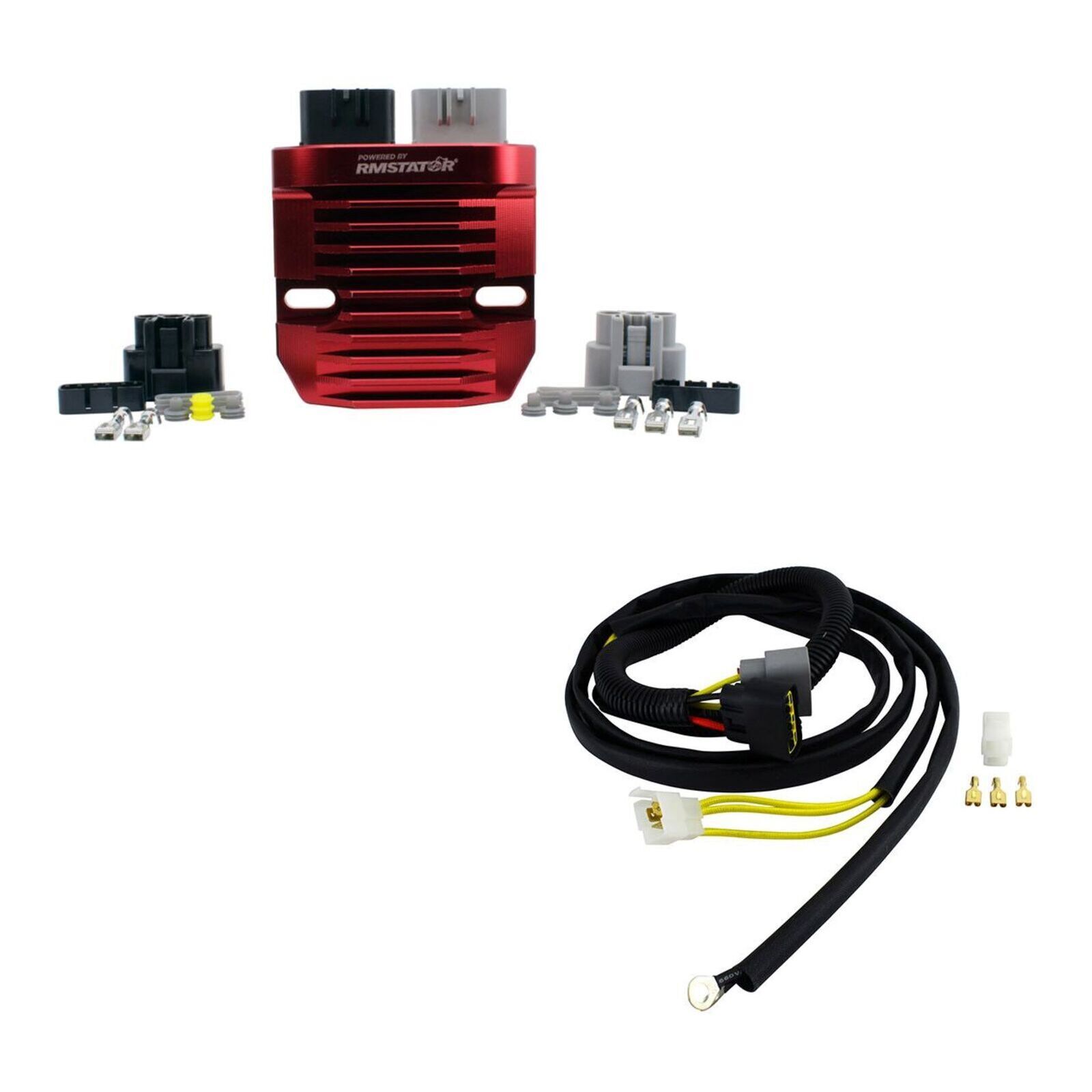

Polaris Surepower Module Regulator bypass Harness:

  • Specifications:
      Wires length: 1000 mm
    • Number of yellow wires: 3
    • Number of red wires: 1
    • Number of black wires: 1
    • Number of plugs: 3

Find a Store

Details about our showrooms & trading hours are available on our 'Contact Us' page.

Returns & Exchanges

Details about the returns process are available on our 'Returns Policy' page.

SKU RMS900108112
Brand RMSTATOR
Shipping Weight 0.5000kg
