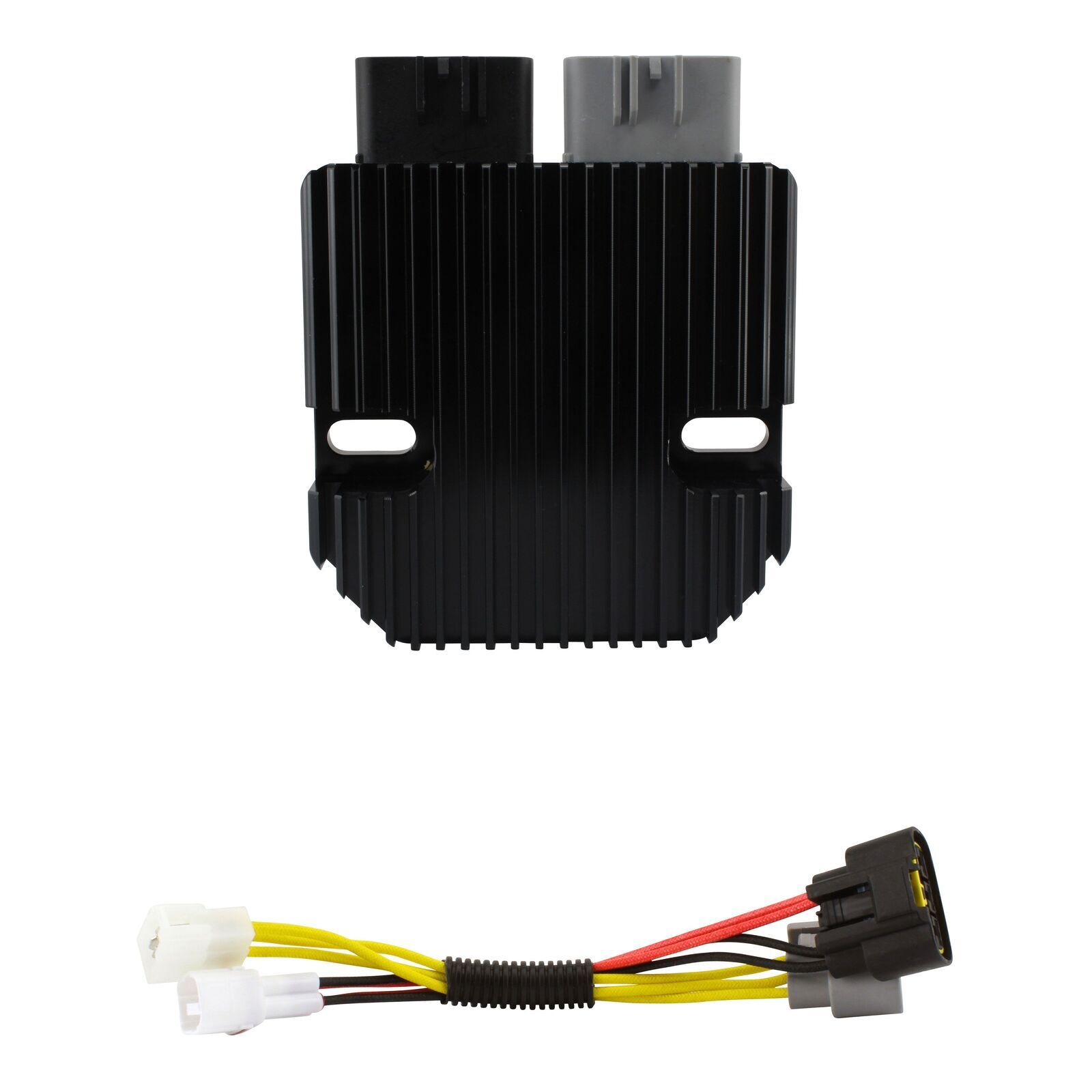

Revolt Regulator for Suzuki Assorted Models

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

Join the revolt against bland voltage regulator performance!

Refuse to compromise to current 30-year-old technology. With its redesigned rectifier technology REVOLT excels where every other fails: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications.

Features:

  • RUNS 50% COOLER THAN OEM
    Two years of R and D and careful choice of top-graded performance components dramatically reduce failure rate by running substantially cooler than the best OEM and competitors' products.
  • SOLVES THE MAJOR CAUSE OF FAILURE
    REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability.
  • DISSIPATE HEAT 45% BETTER THAN OEM
    Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminium billet for optimal heat transfer from internal components to external fresh air.
  • PROUDLY MADE IN NORTH AMERICA
    REVOLT is engineered designed and manufactured in North America under strict quality control standards.
  • LIFETIME WARRANTY
    REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator again.

Dimensions:

  • Width: 103 mm
  • Length: 102 mm
  • Height: 26 mm
  • Fixation Holes Center to Center: 78 mm

Electrical Specifications:

  • Number of Plugs: 2
  • Number of Pins: 5
  • Number of Wires: 0
  • Minimum Charging Voltage: 14.5 V ± 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: < 15 V
  • Operation Temperature: -20°C to 85°C

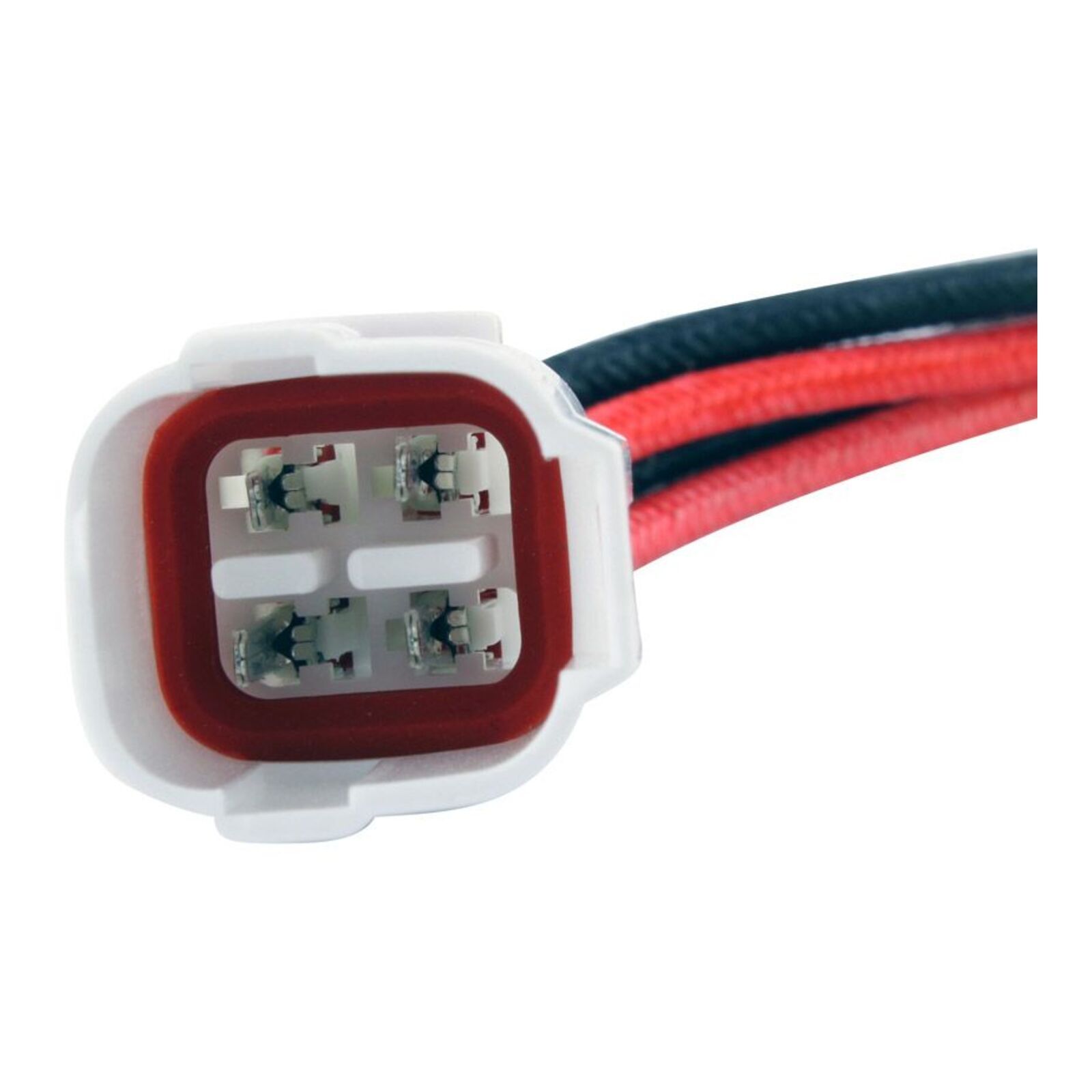

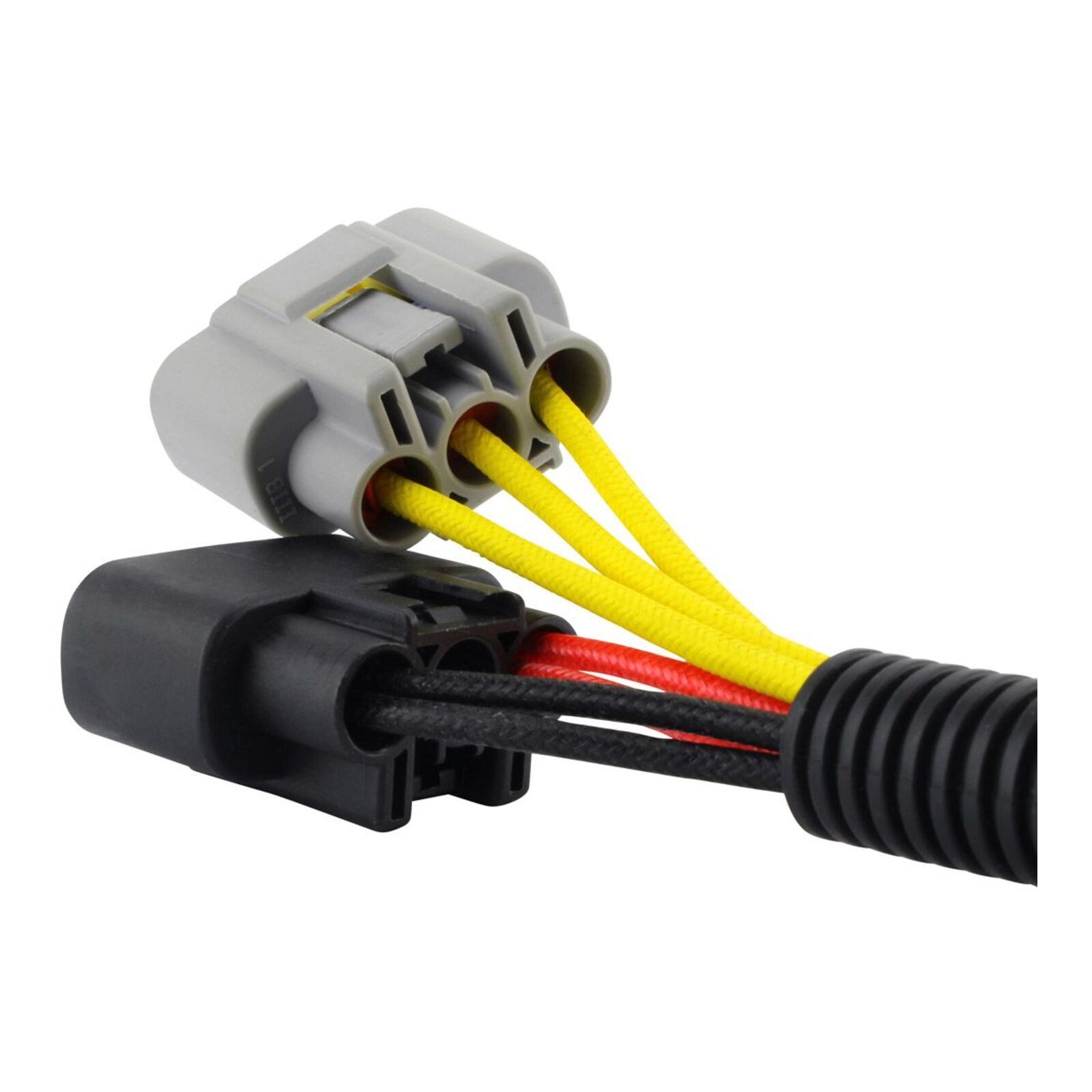

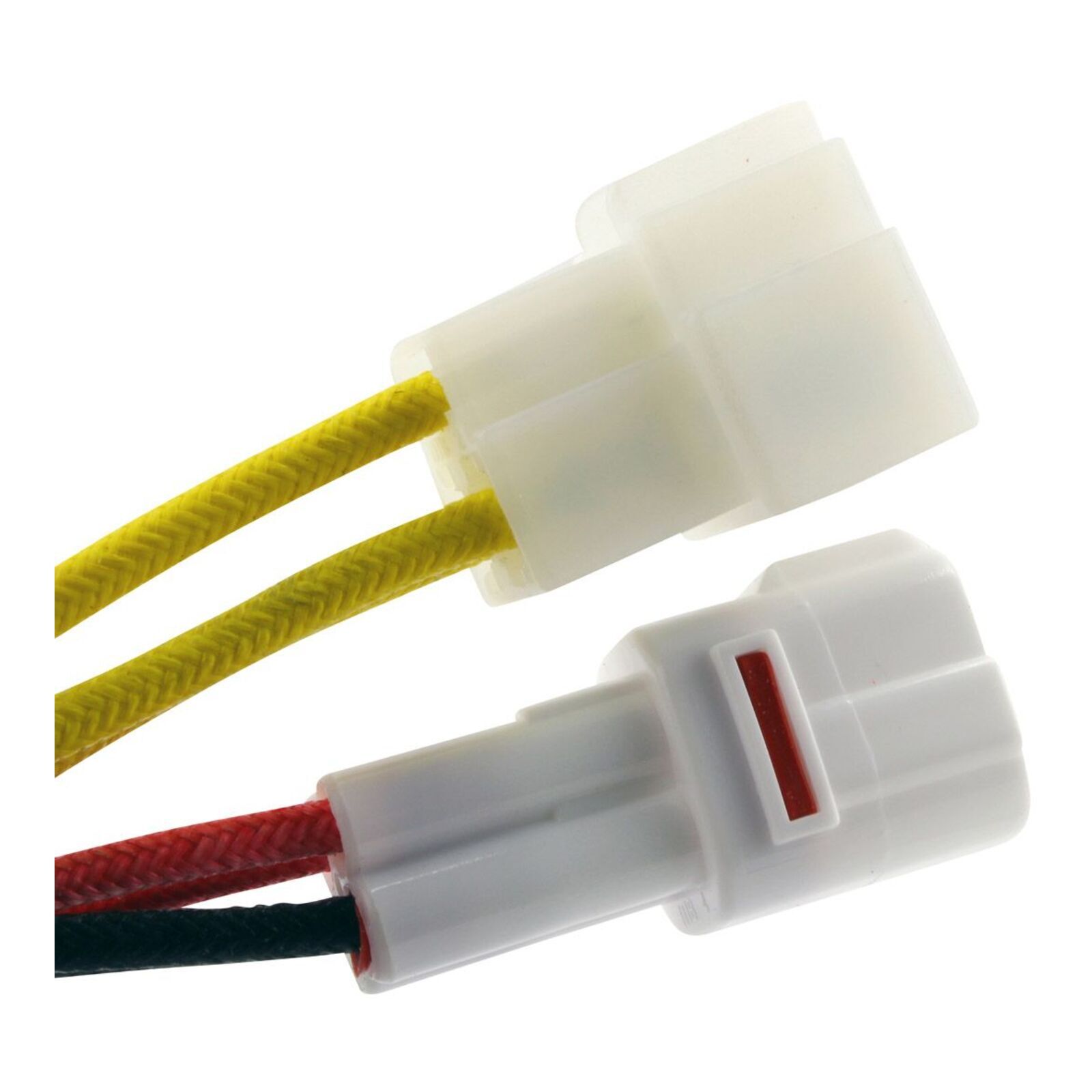

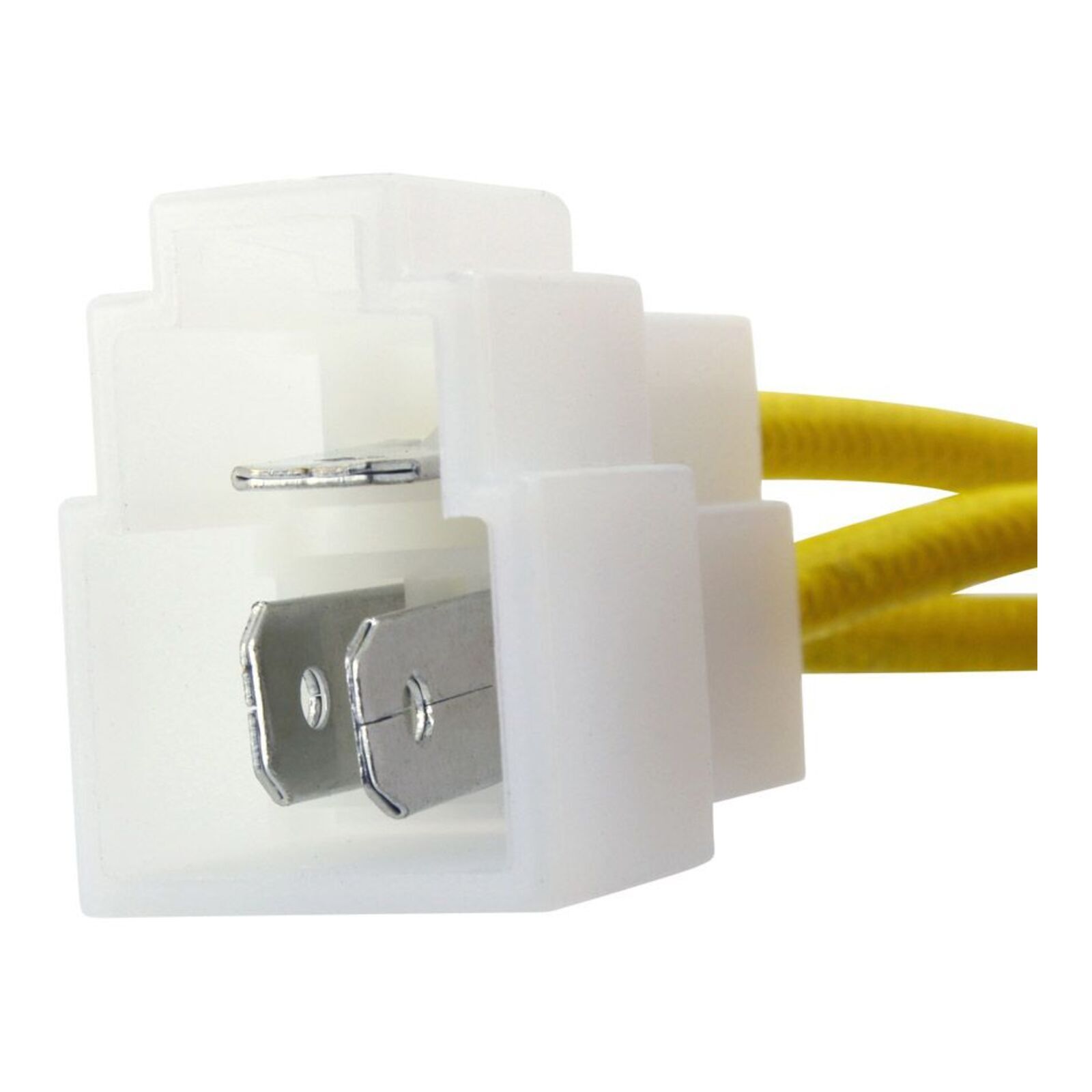

Harness:

  • Wire Length: 150 mm
  • Number of Yellow Wires: 3
  • Number of Red Wires: 1
  • Number of Green Wires: 1
  • Number of Plugs: 3
