Regulator Rectifier Assorted Suzuki Models - Refer to Fitments (RM30337)

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

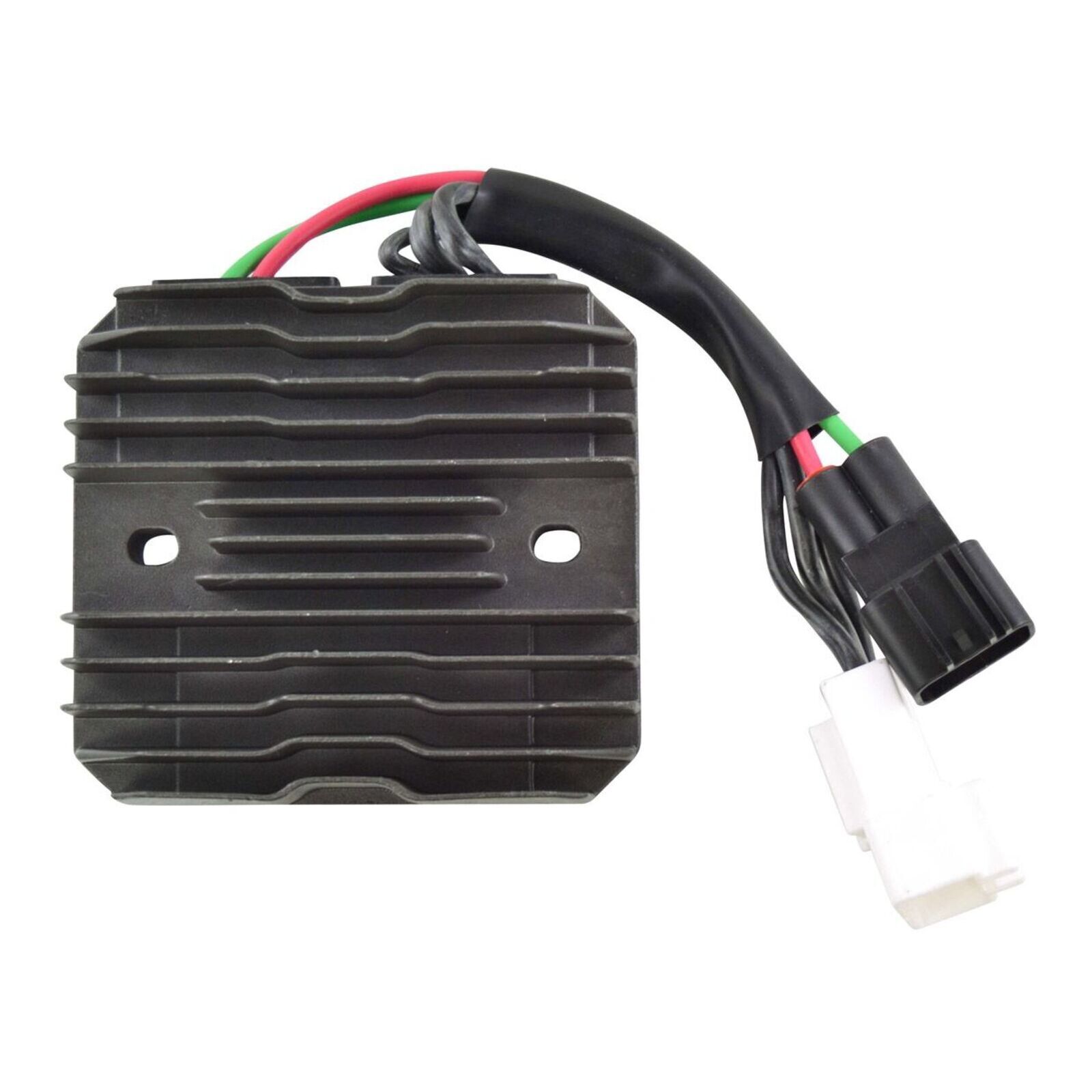

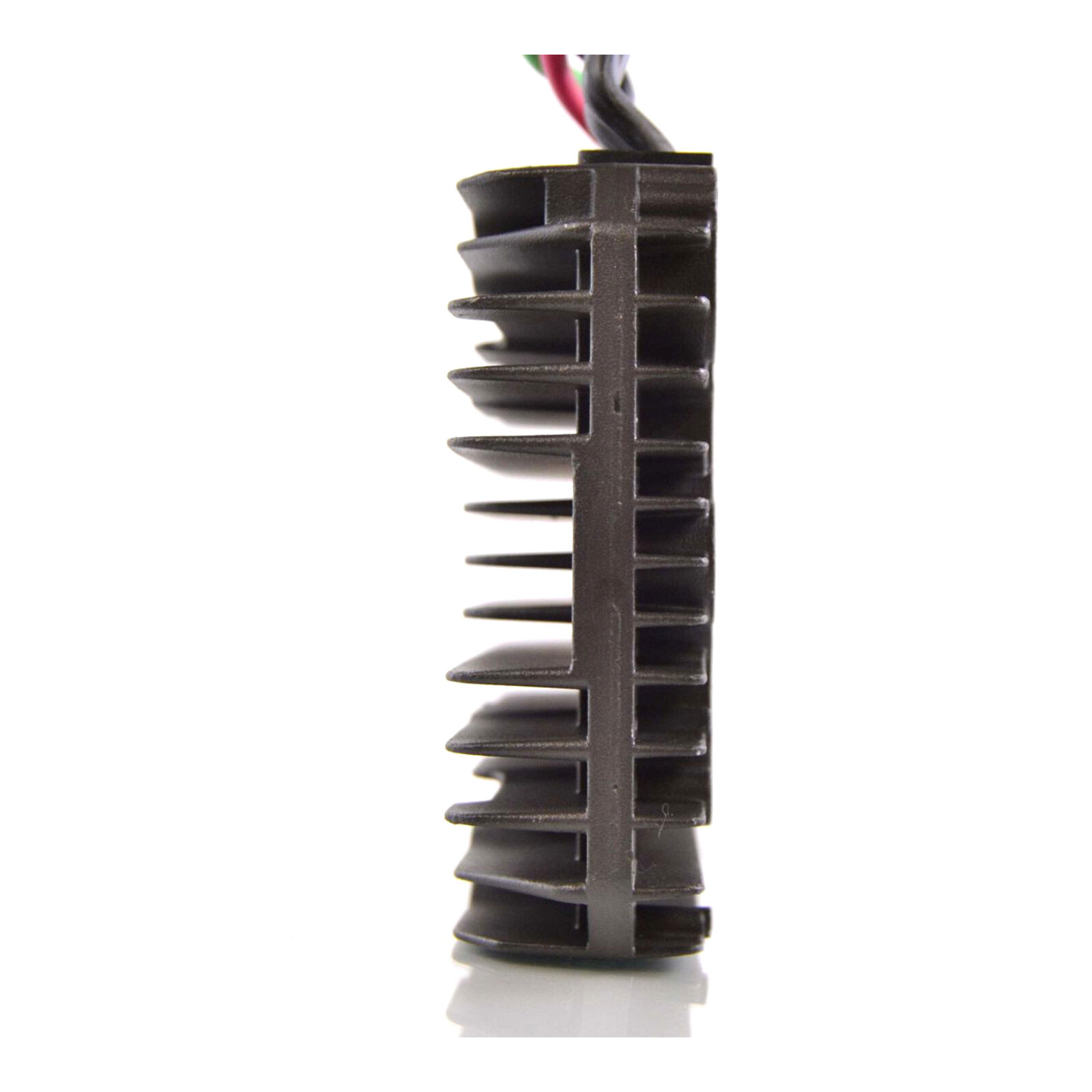

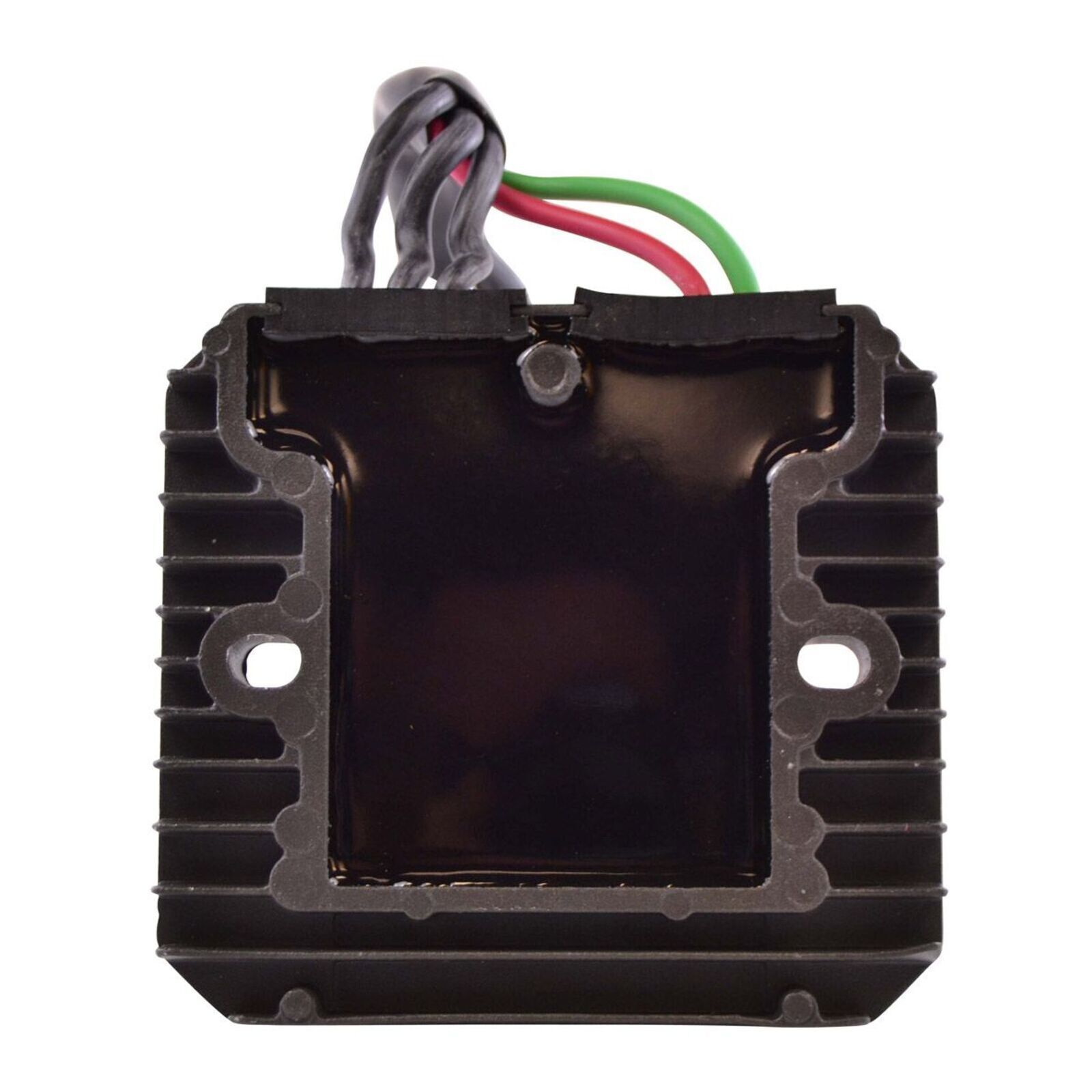

Brand new aftermarket voltage regulator rectifier.

  • Direct replacement to your original unit.
  • Plug-and-play direct fit easy installation.
  • No assembly required.
  • Higher grade of electric components.
  • The quality exceeds the OEM equipment.
  • All products shipped are tested.

Dimensions:

  • Width: 100mm
  • Length: 110mm
  • Height: 35mm
  • Fixation holes centre to centre: 77mm
  • Wires length: 130mm and 160mm

Other Specifications:

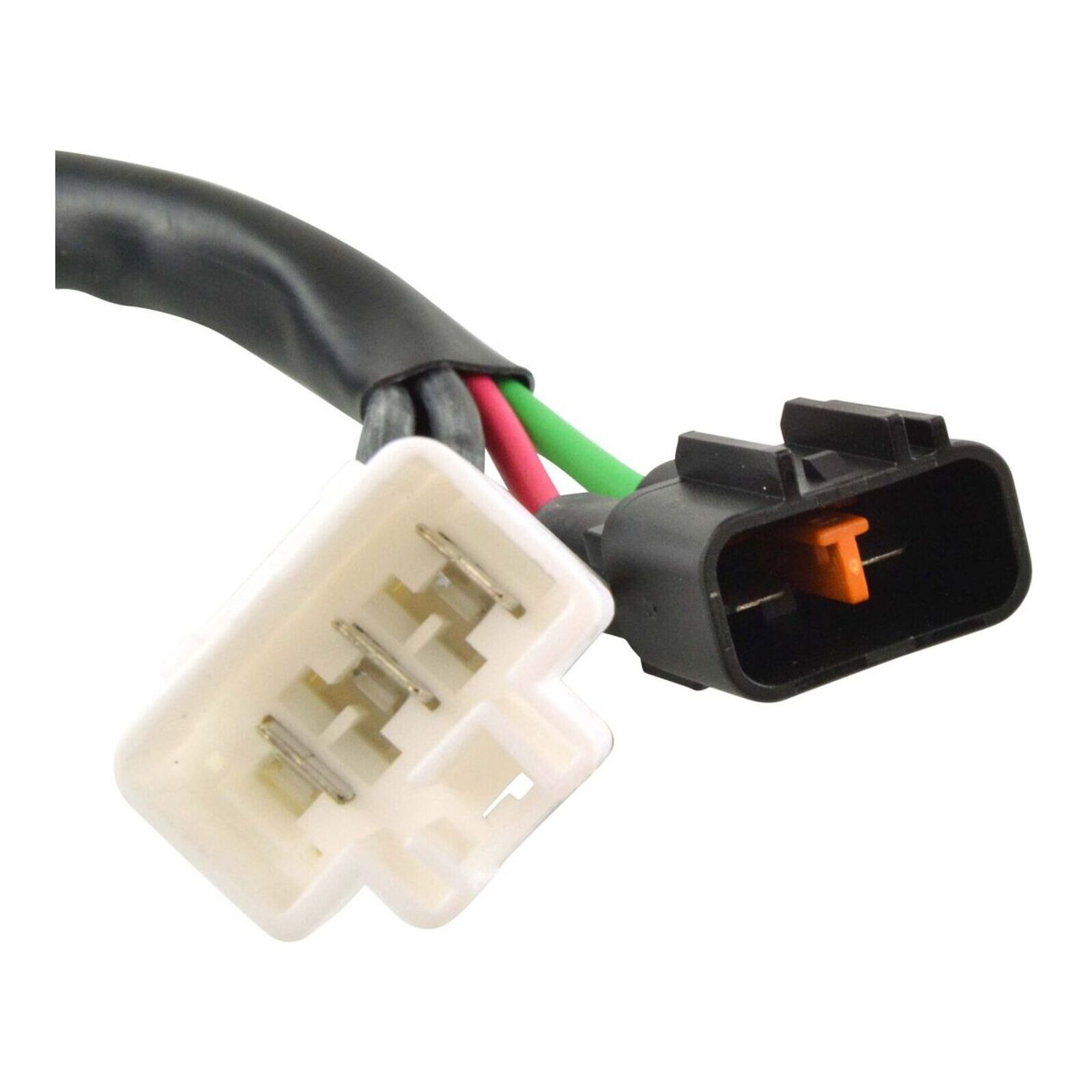

  • Number of plugs: 2
  • Number of pins: 5

Before installing your new voltage regulator rectifier:

  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors.
