RECTIFIER YAMAHA OUTBOARD RFR FITMENTS (RM30428)

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

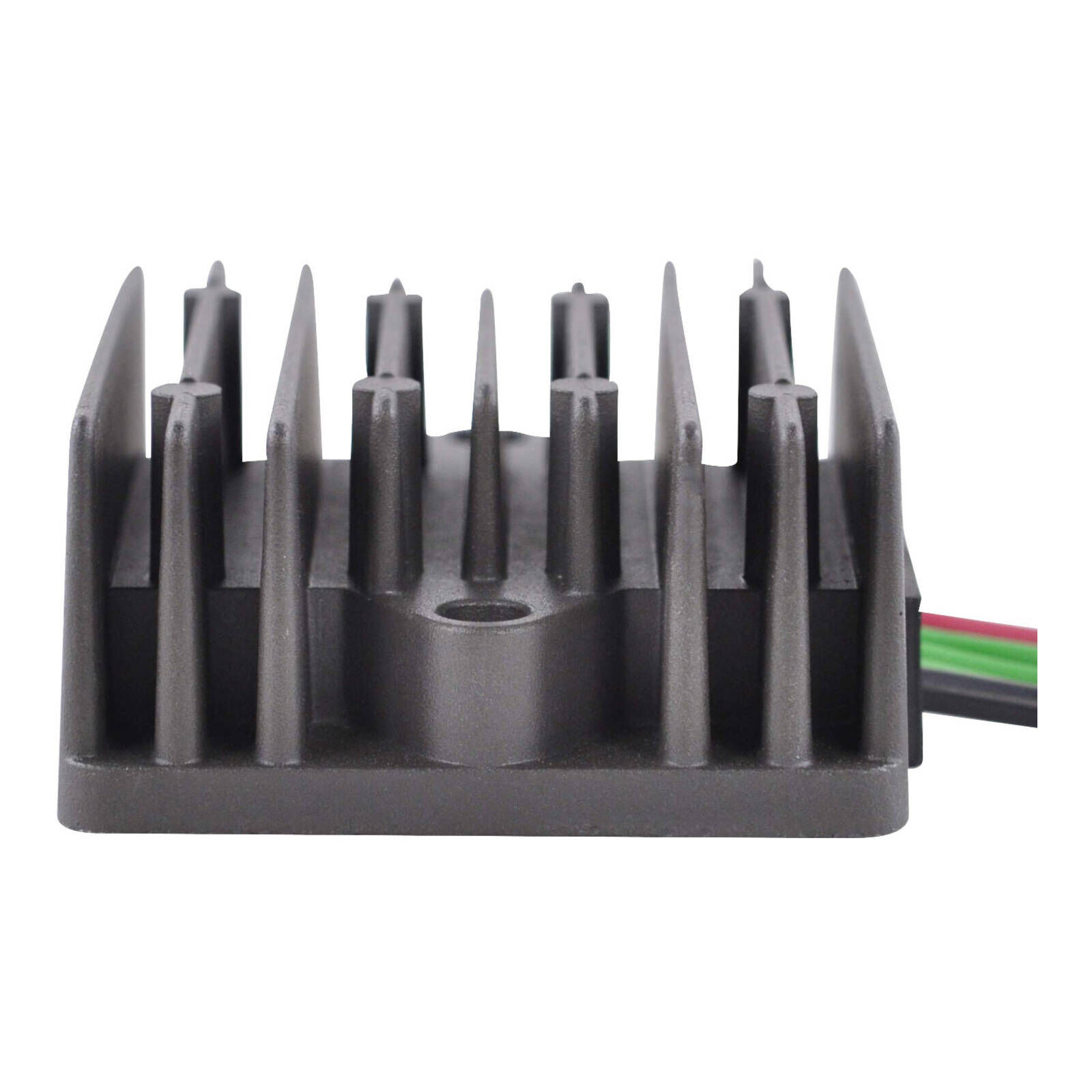

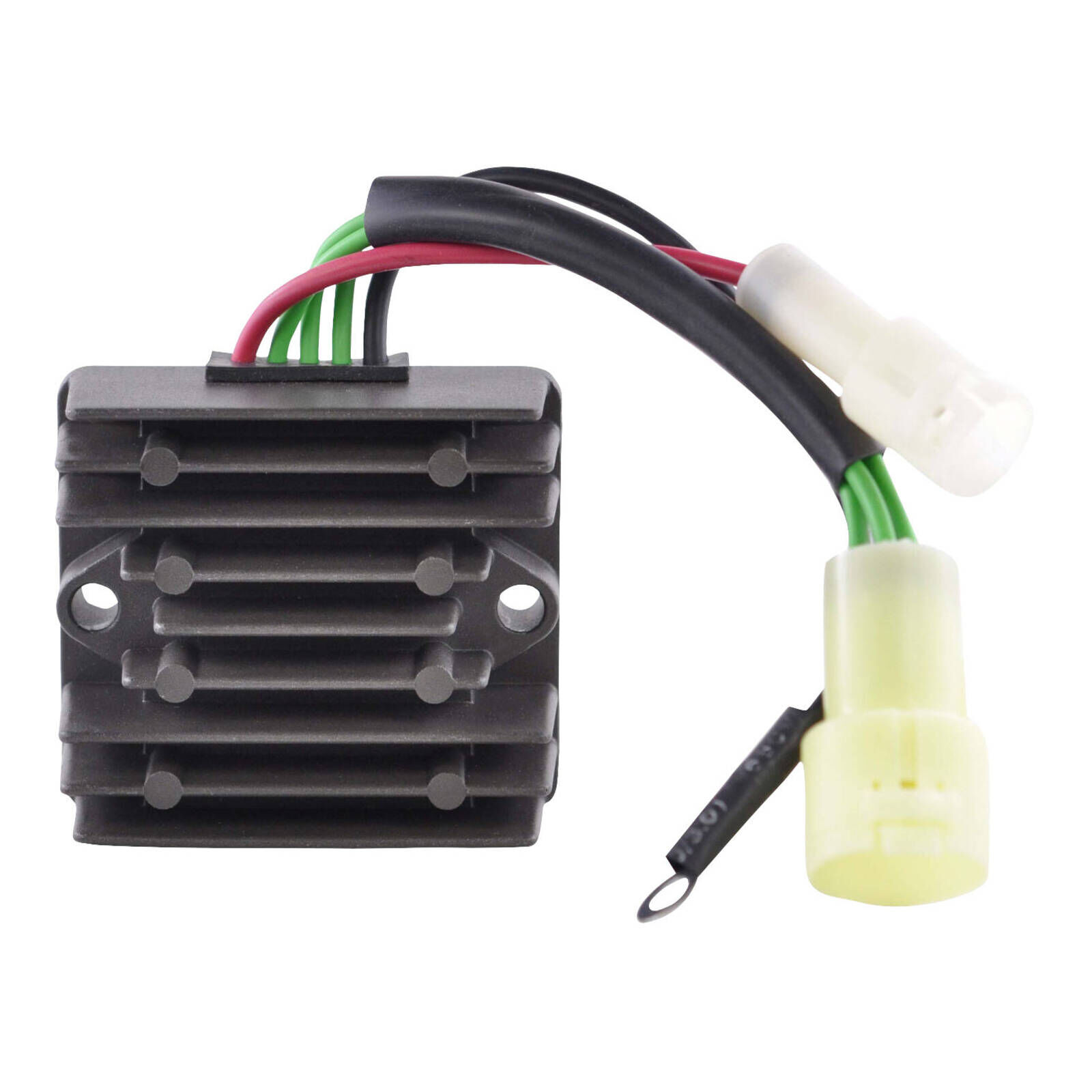

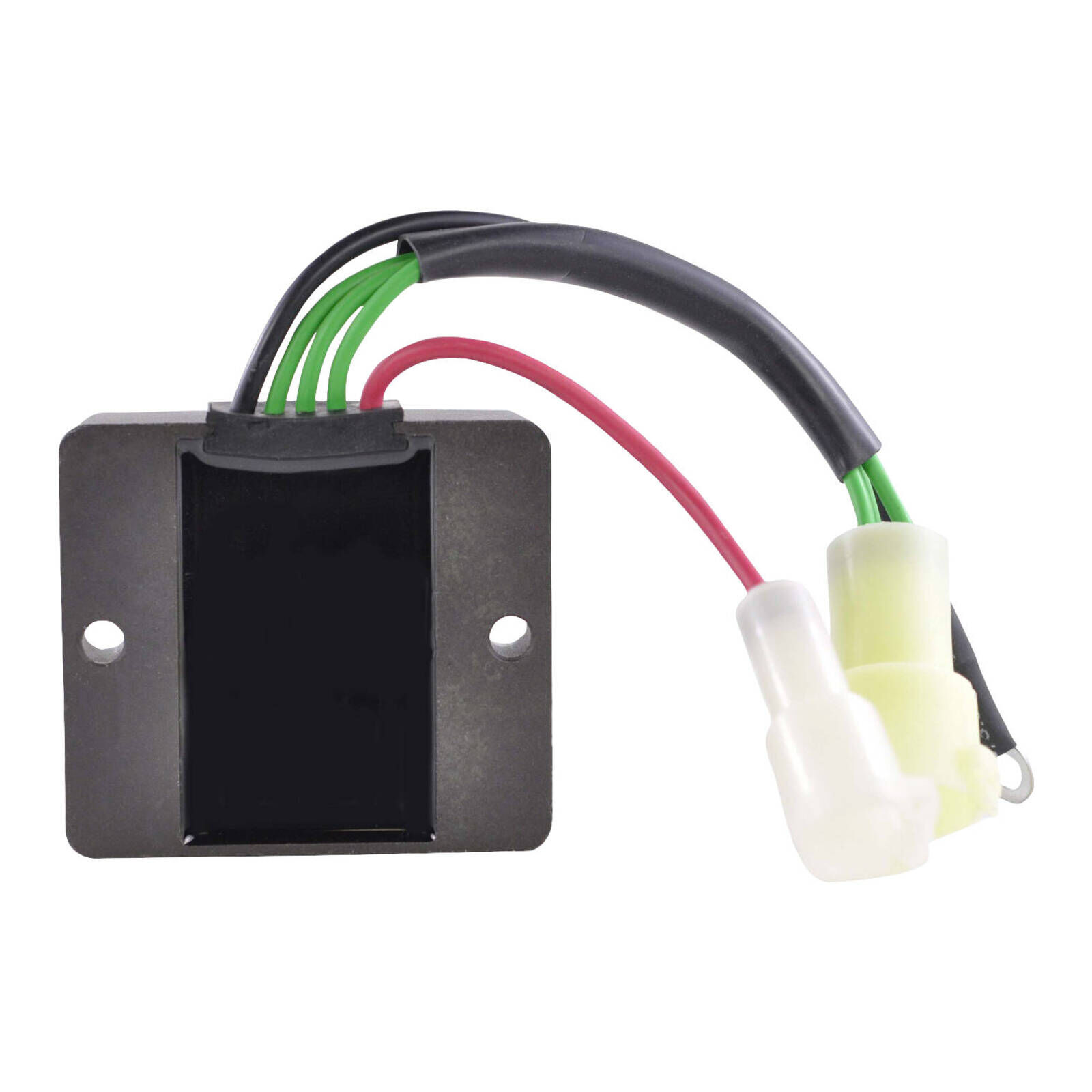

Brand new aftermarket AC/DC voltage regulator rectifier.

  • Direct replacement to your original unit.
  • Plug-and-play direct fit easy installation.
  • No assembly required
  • Higher grade of electric components.
  • Improved heat sink and charging capabilities
  • The quality exceeds the OEM equipment

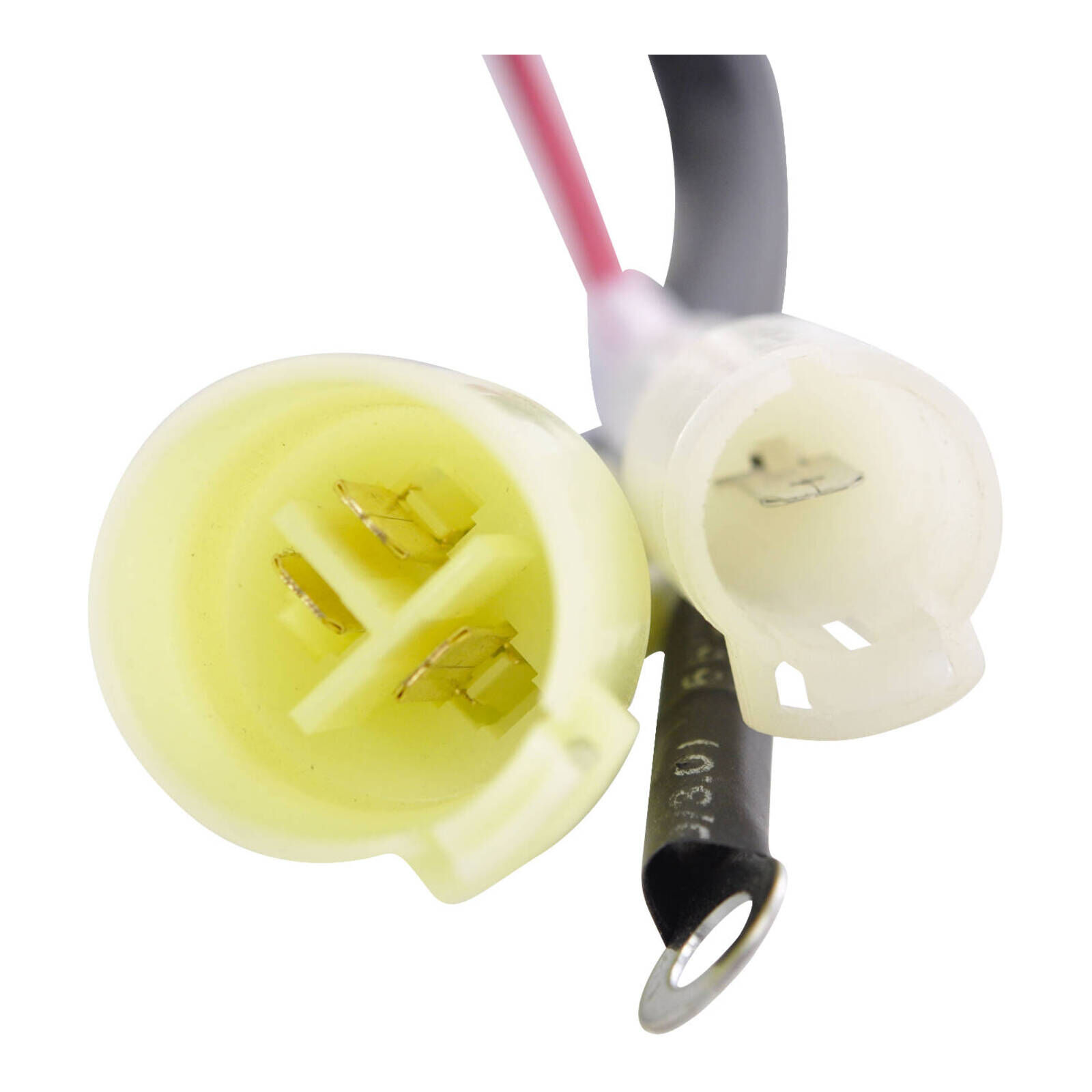

  • Connector included
  • All products shipped are tested

Dimensions:
Width: 79.5 mm
Length: 72 mm
Height: 35 mm
Wires length: 190 mm (black) 130 mm (green) 75 mm (red)
Fixation holes center to center: 67 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 4
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A500W
Open Circuit Voltage: 15V
Operation Temperature: -20° to 85°
