GENERATOR STATOR YAMAHA TTR 110 08-22 (RMS010-107173)

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

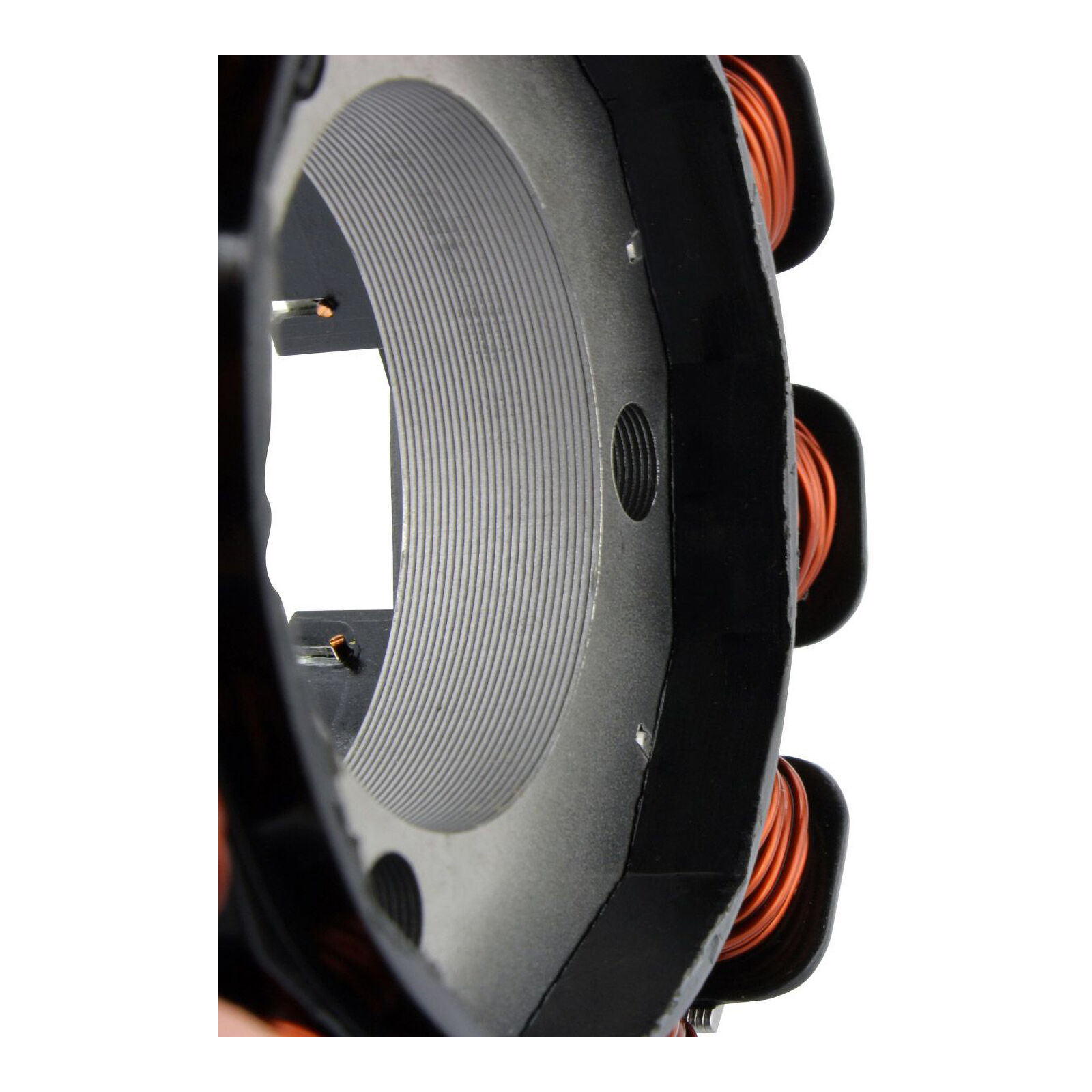

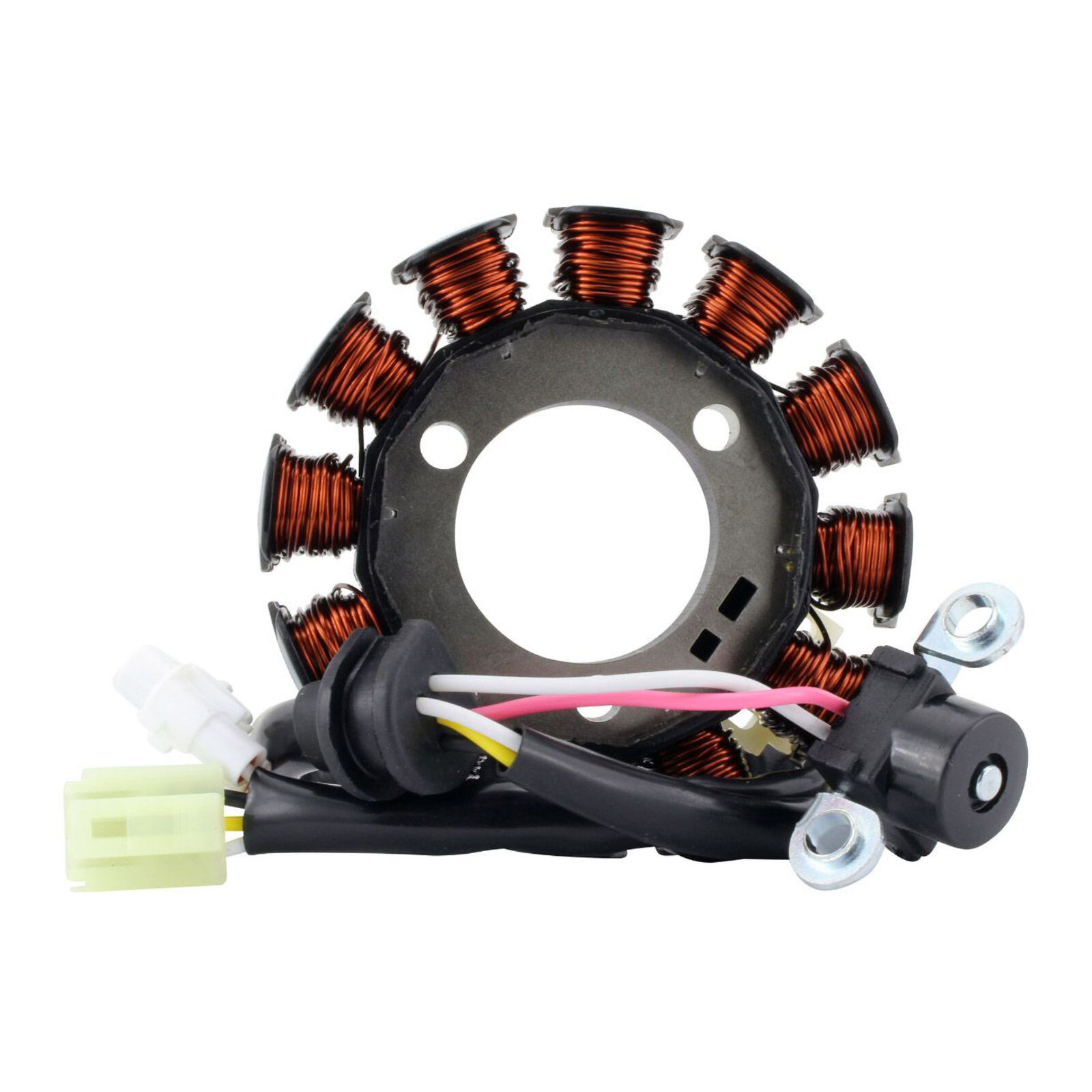

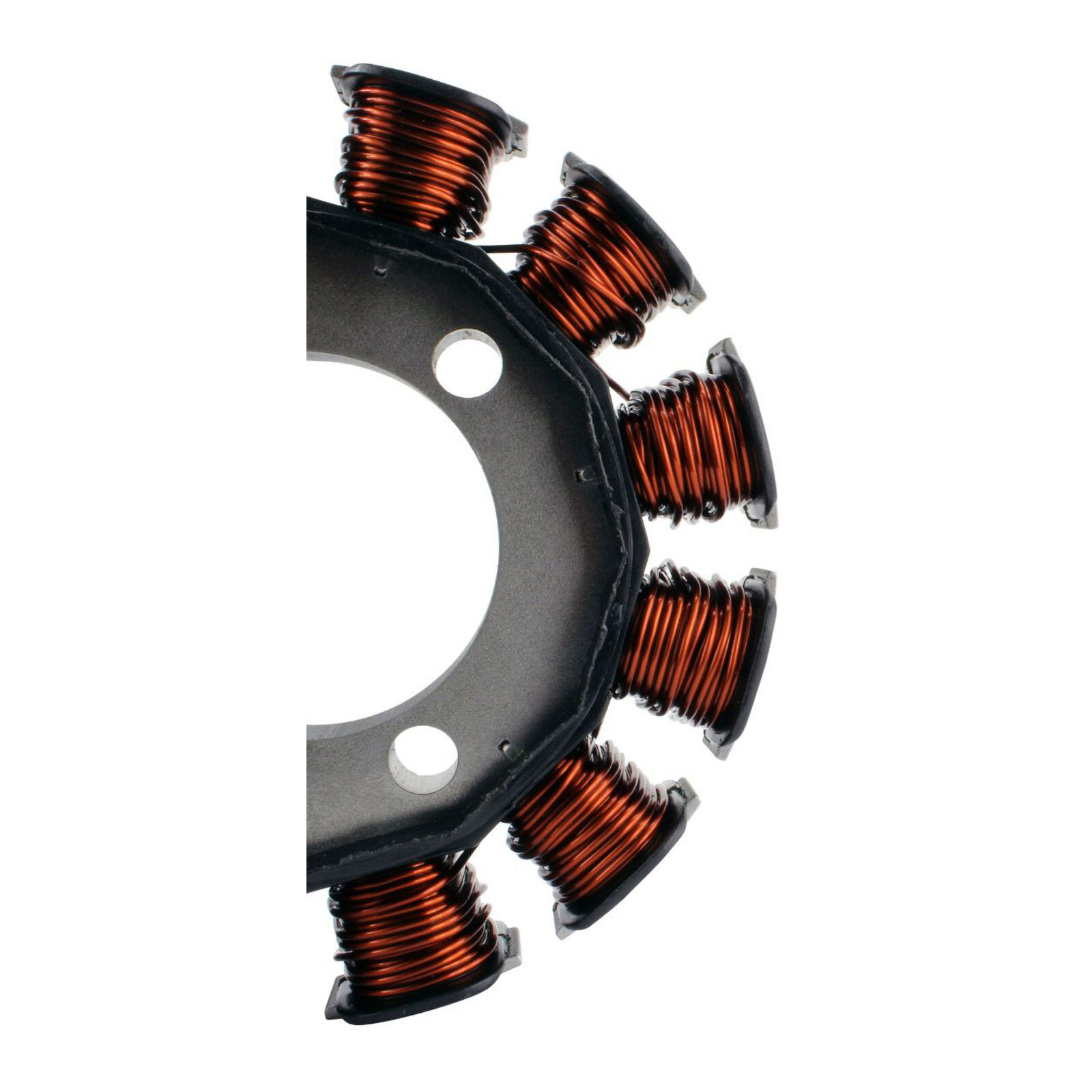

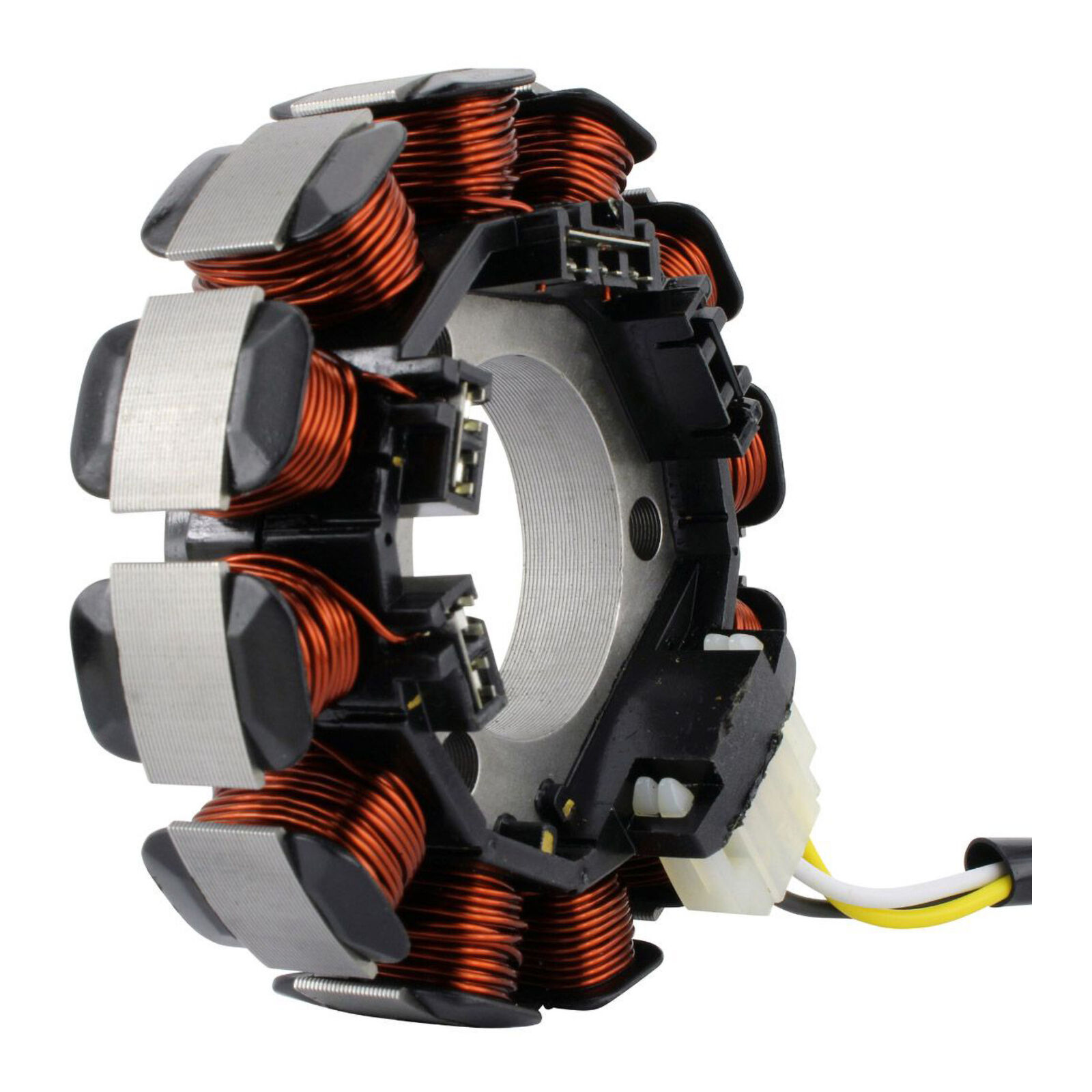

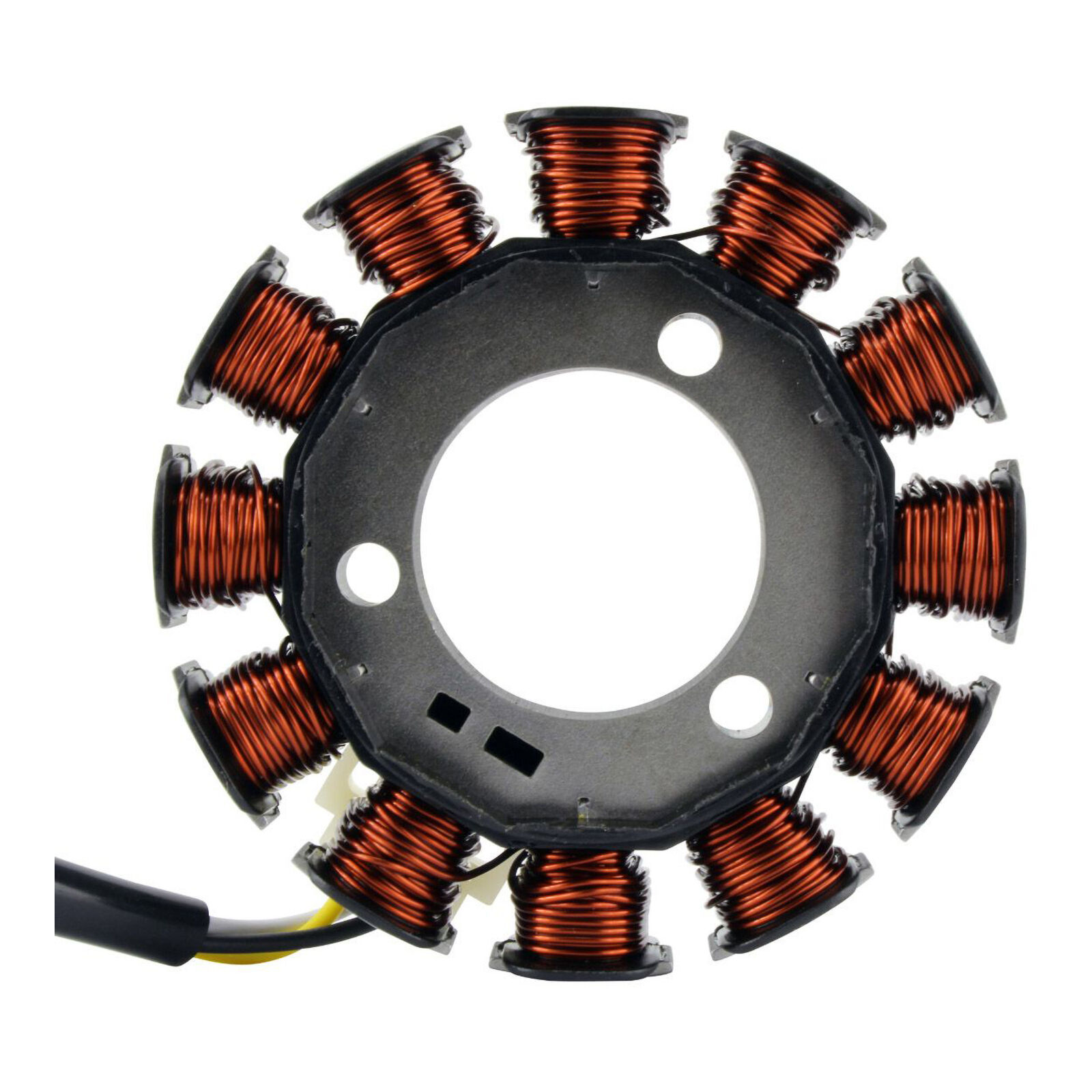

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play direct fit easy installation
  • Highest-grade lamination materials
  • Highest-grade copper windings resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Specifications:

Dimensions:

  • Interior diameter: 37 mm
  • Exterior diameter: 92 mm
  • Thickness: 12 mm
  • Length of wires stator to grommet: 90 mm
  • Length of wires grommet to plug: 280 mm
  • Length of pickup coil's wire to grommet: 55 mm
  • Other specifications:

    • Number of wires: 5
    • Number of plugs: 2
    • Number of pins: 5
    • Number of poles: 12

    Wire-to-wire resistance:

    • All 1p winding: Black to White = 0.9 ohms +-20%
    • Alternator #1: Yellow to Black = 0.6 ohms +-20%
    • Alternator #2: Yellow to White = 0.8 ohms +-20%
    • Pickup: Pink to White = 280 ohms +-20%
