Generator Stator Suzuki VZR1800 '06-'19 (RM01596)

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

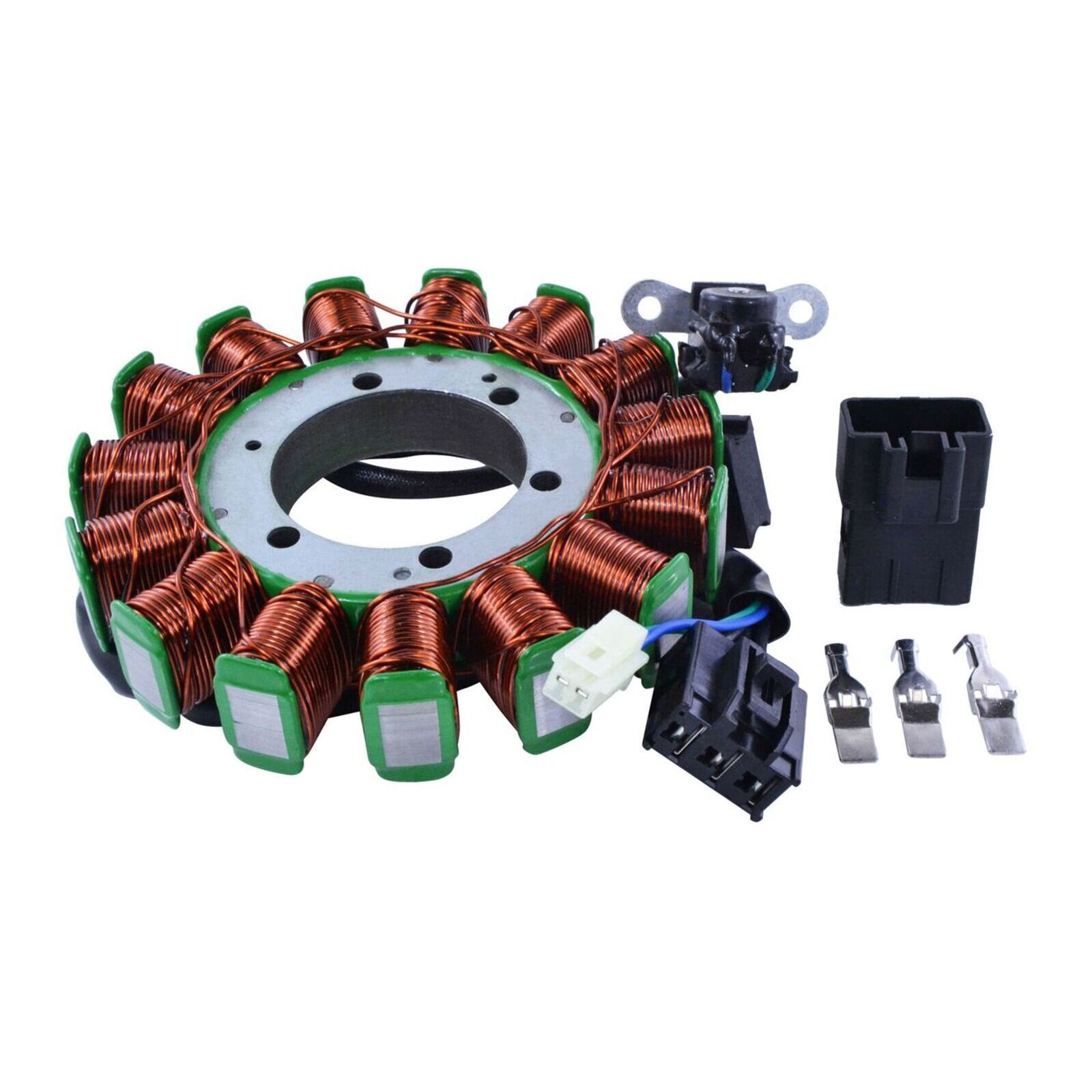

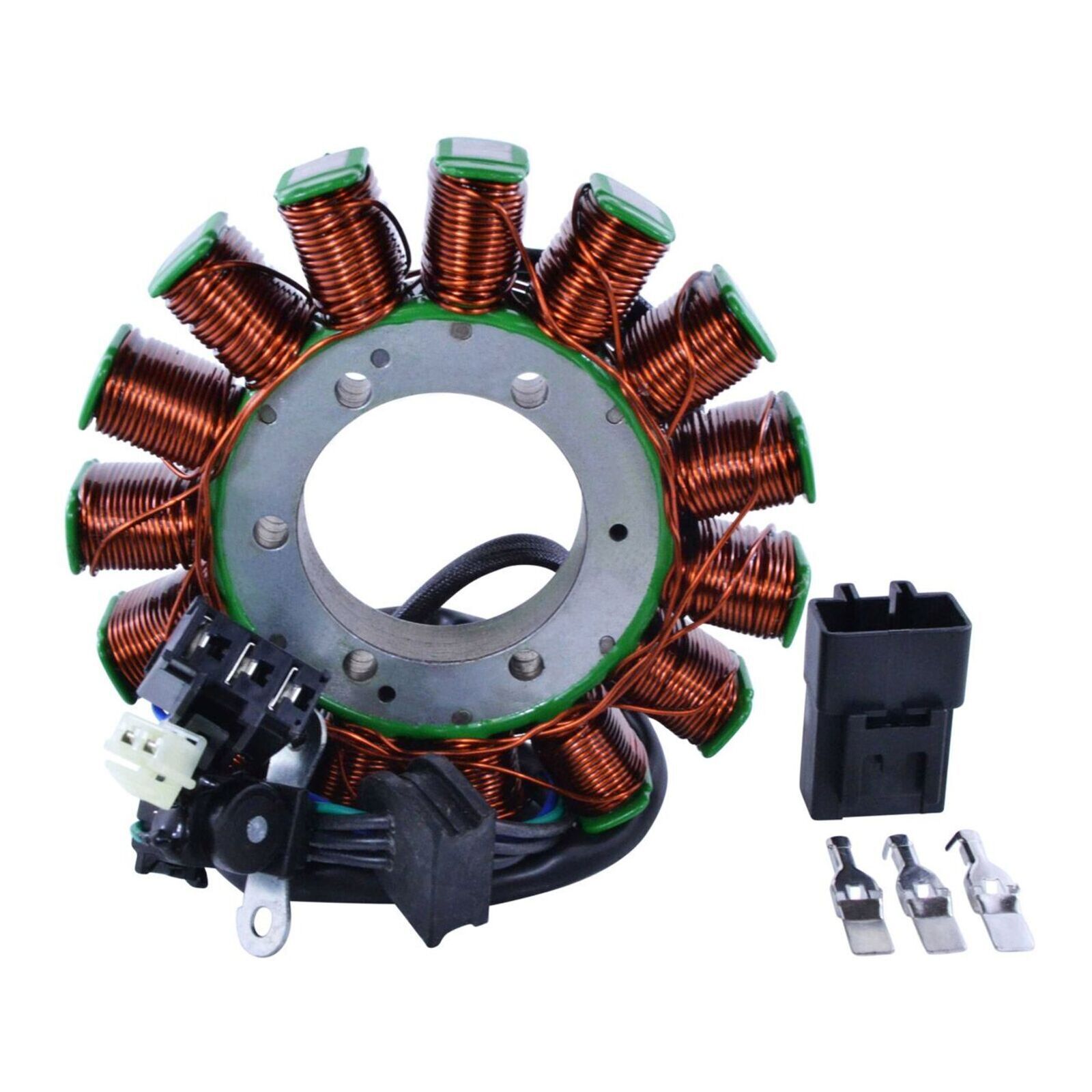

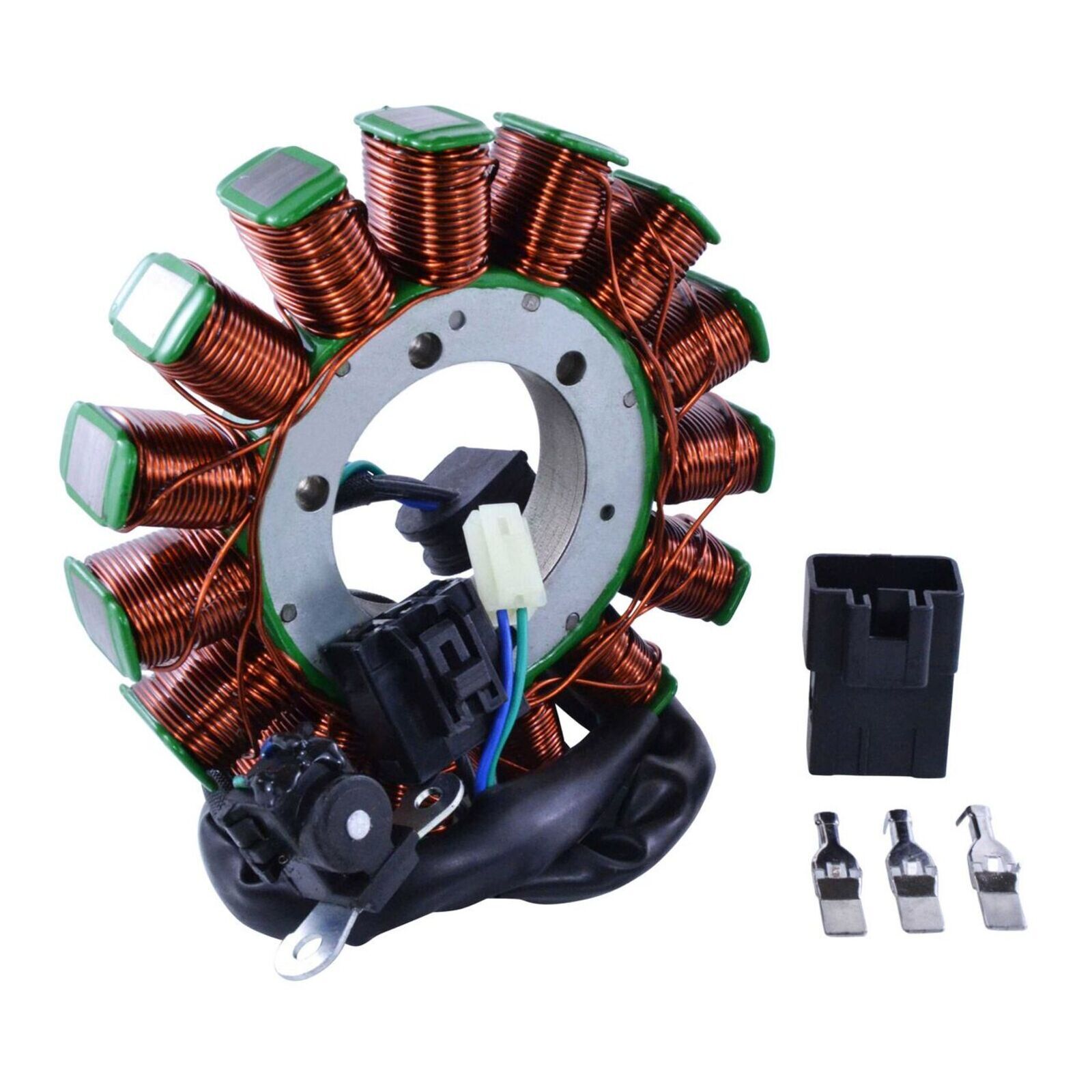

Brand new aftermarket generator stator. RM has even included the opposite connector (main harness side) which are a major cause for repetitive electrical issues.

  • Direct replacement to your original unit.
  • Plug-and-play direct fit easy installation.
  • Highest-grade lamination materials.
  • Highest grade copper windings resistant to 200 degrees Celsius.

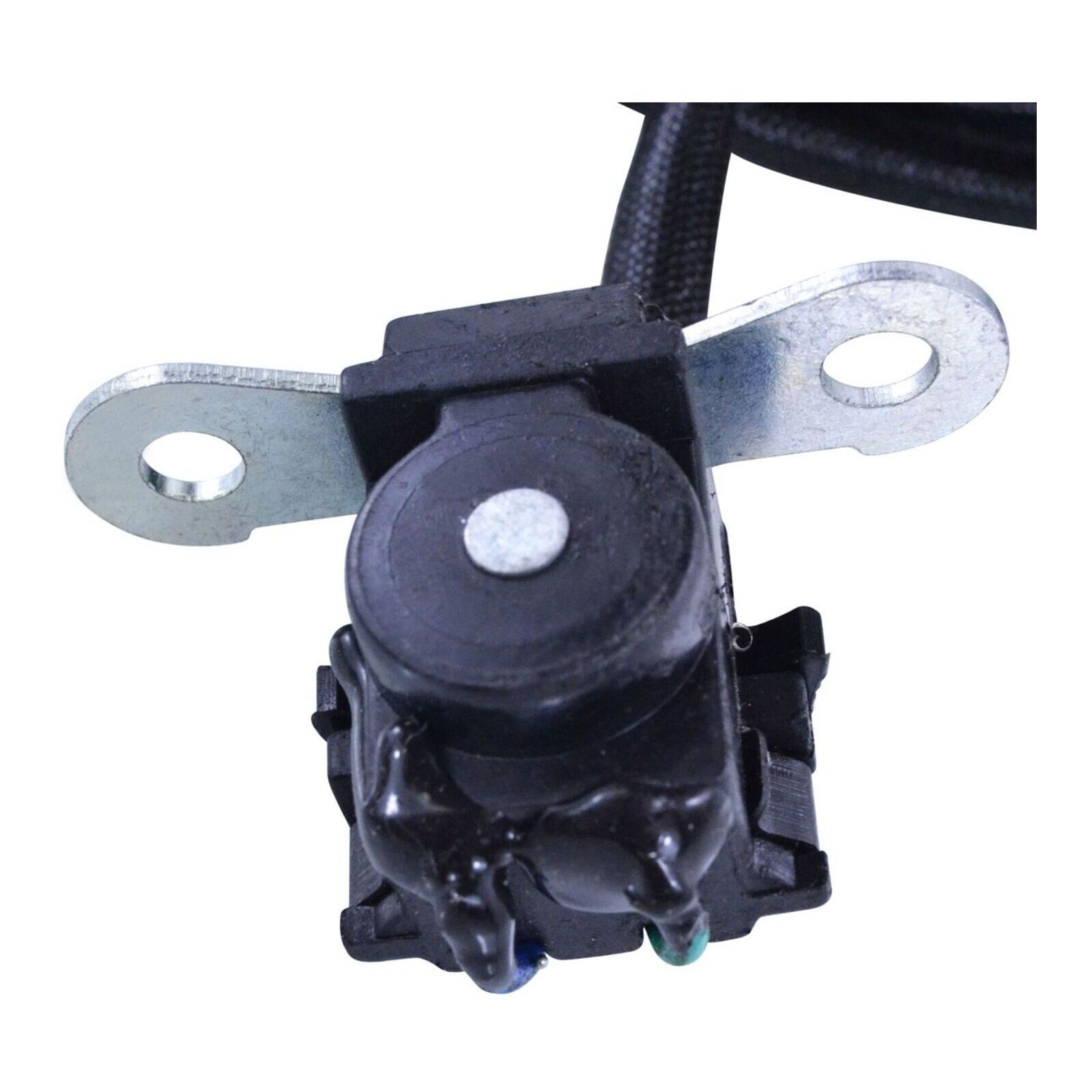

  • Pick up pulsar coil included.
  • Connector included.

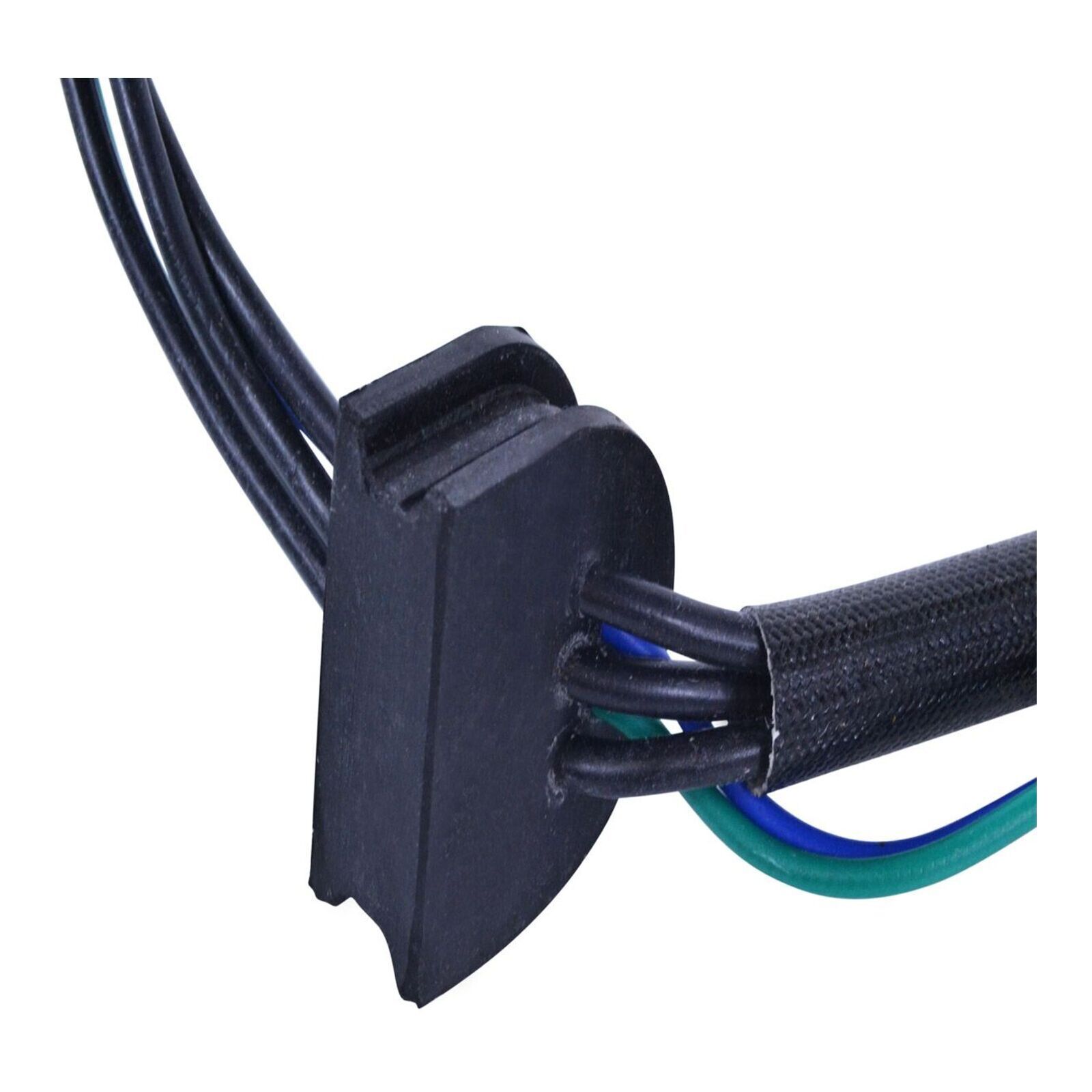

  • Rubber grommet included.
  • All products shipped are tested.

Dimensions:

  • Interio r diameter: 54 mm
  • Exterior diameter: 140 mm
  • Thickness: 18 mm
  • Length of wires stator to grommet: 150 mm
  • Length of wires grommet to plug: 420 mm
  • Length of pickup coil's wire to grommet: 240 mm

Other Specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5

Wire to Wire Resistance:

  • Alternator: Black to Black = 0.5 ohms ±20%
  • Pickup: Blue to Green = 239 ohms ±20%

Find a Store

Details about our showrooms & trading hours are available on our 'Contact Us' page.

Returns & Exchanges

Details about the returns process are available on our 'Returns Policy' page.

SKU RMS01596
Brand RMSTATOR
Shipping Weight 0.5000kg
