GENERATOR STATOR SUZU BURGMAN AN 650 13-17' INDENT

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

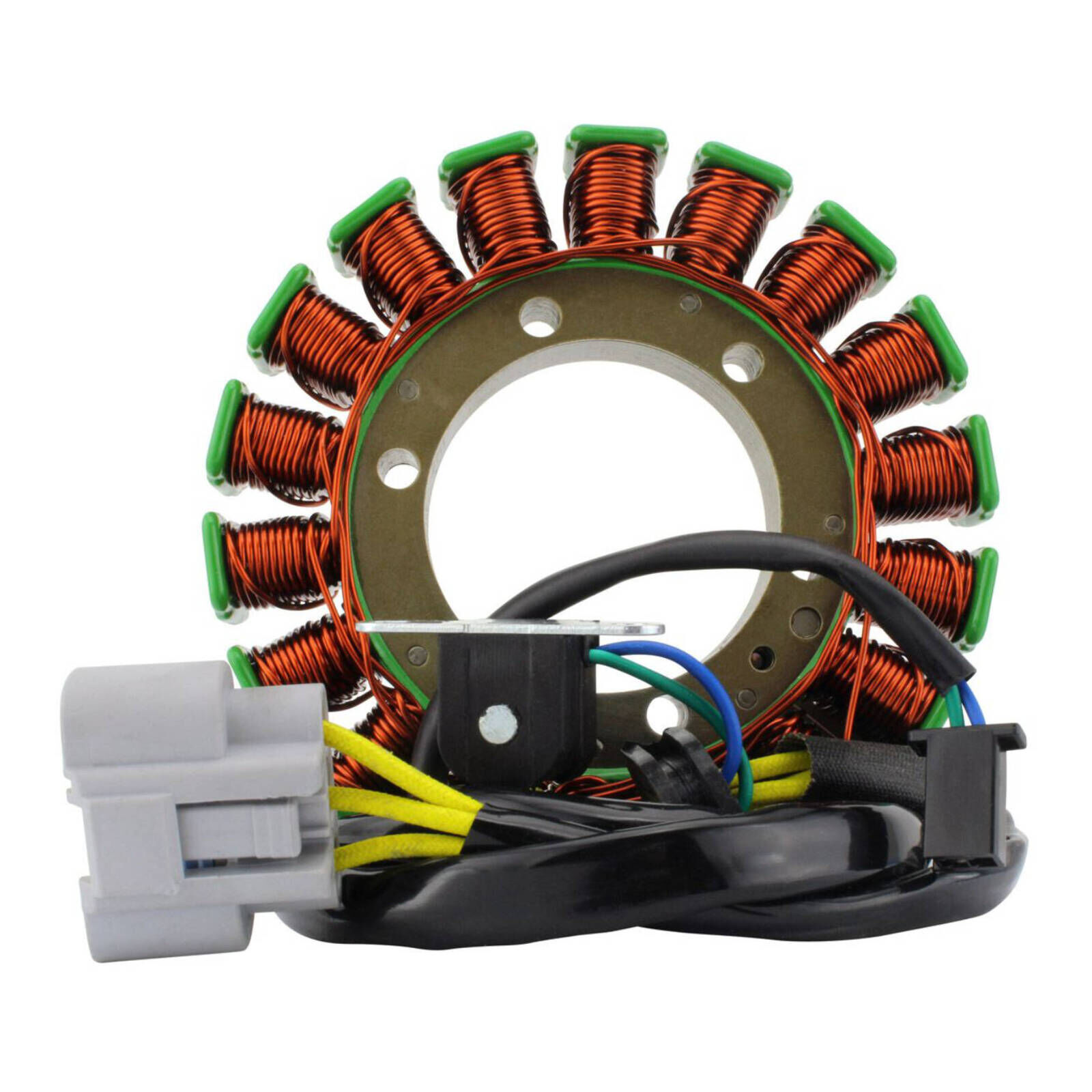

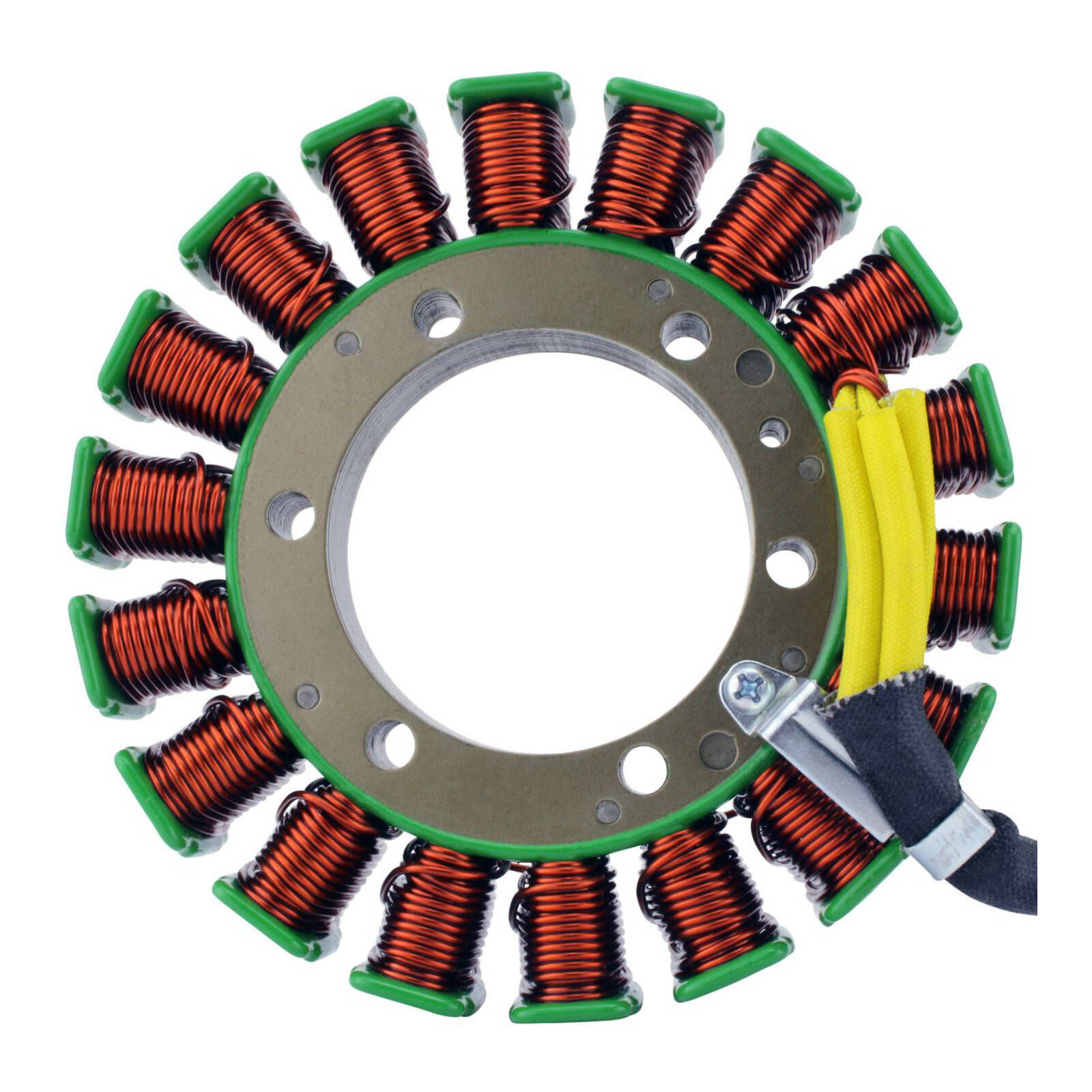

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play direct fit easy installation

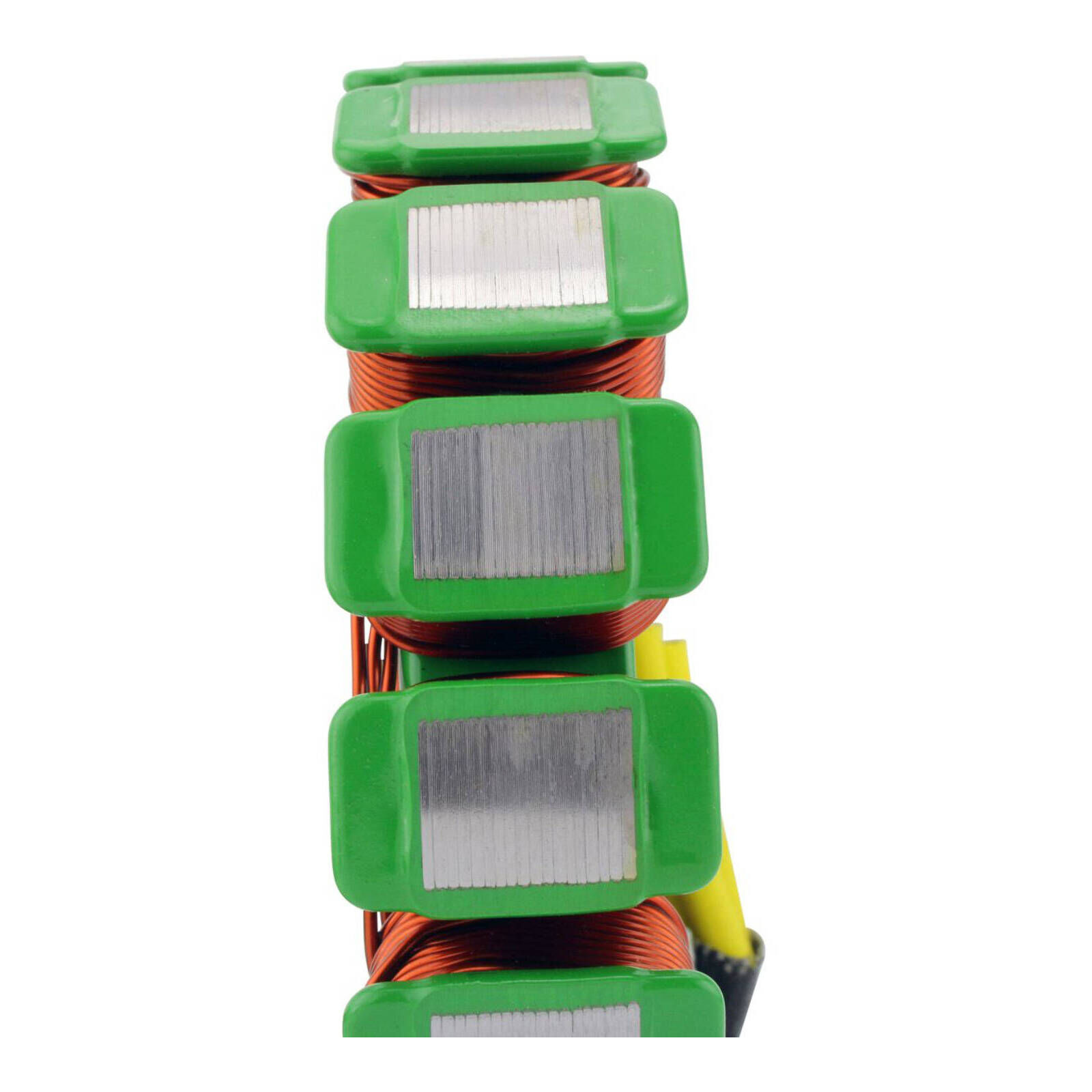

  • Highest grade of lamination materials
  • Highest grade of copper winding resistant to 200 degrees Celsius
  • Pick up pulsar coil included

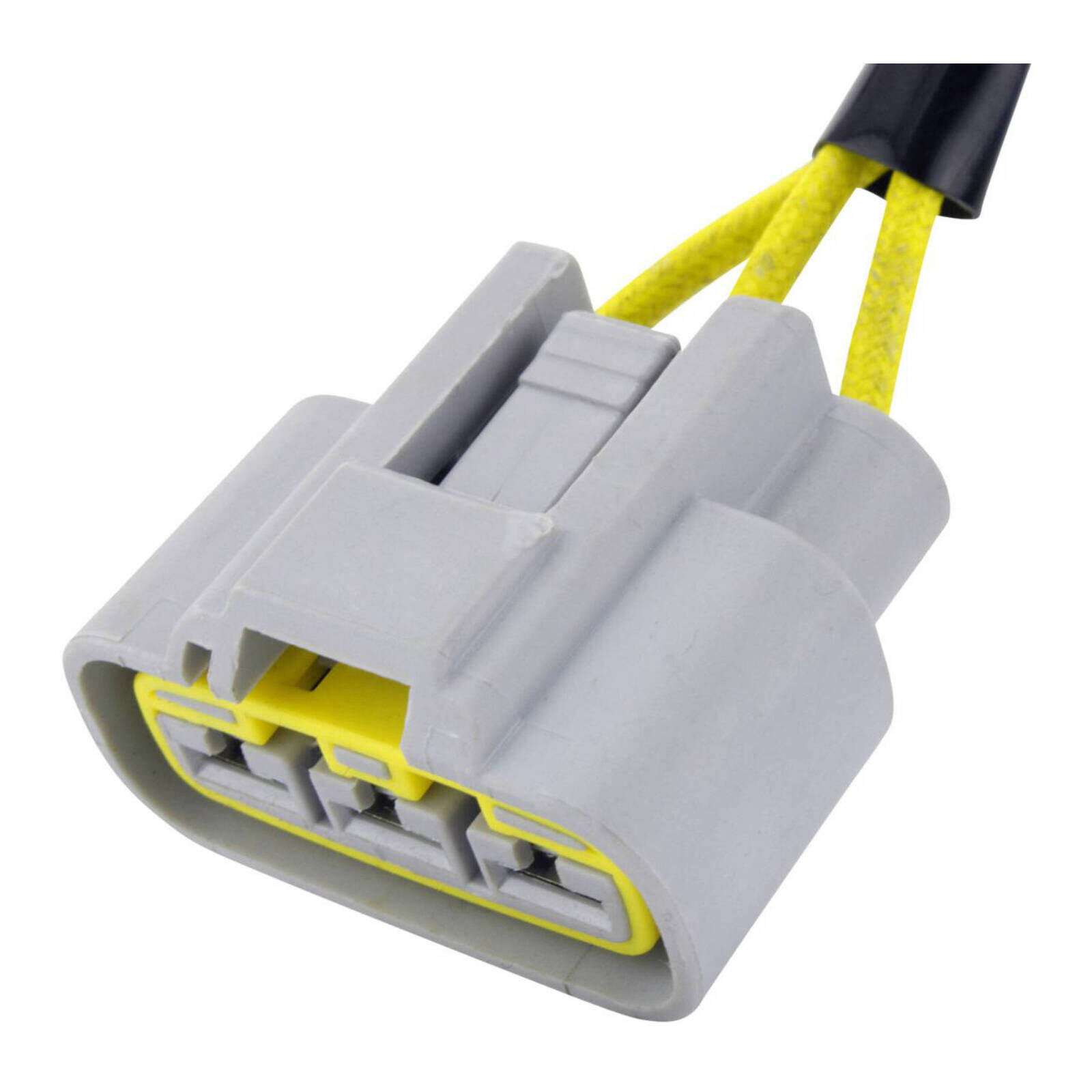

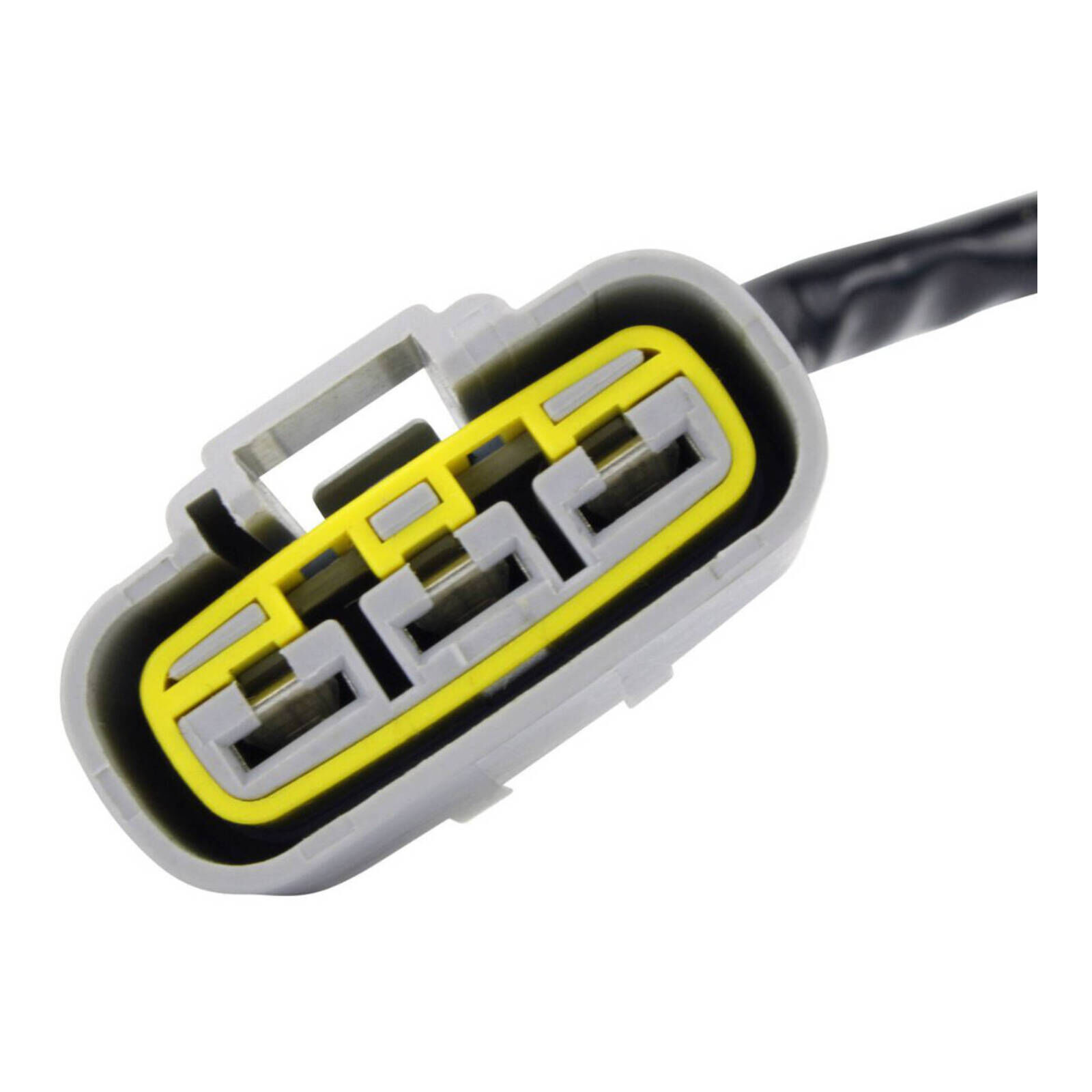

  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:

  • Interior diameter: 58 mm
  • Exterior diameter: 130 mm
  • Thickness: 19 mm
  • Length of wires stator to grommet: 80 mm
  • Length of wires grommet to plug: 180 mm & 1000 mm
  • Length of pickup coil's wire to grommet: 30 mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18

Wire to wire resistance:

  • Alternator: Yellow to Yellow = 0.4 ohms +-20%
  • Alternator: Yellow to ground = O.L
  • Pickup: Blue to Green = 200 ohms +-20%

Note: Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY
