GENERATOR STATOR POLARIS RANGER 1000 18-21 (RMS010-107104)

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

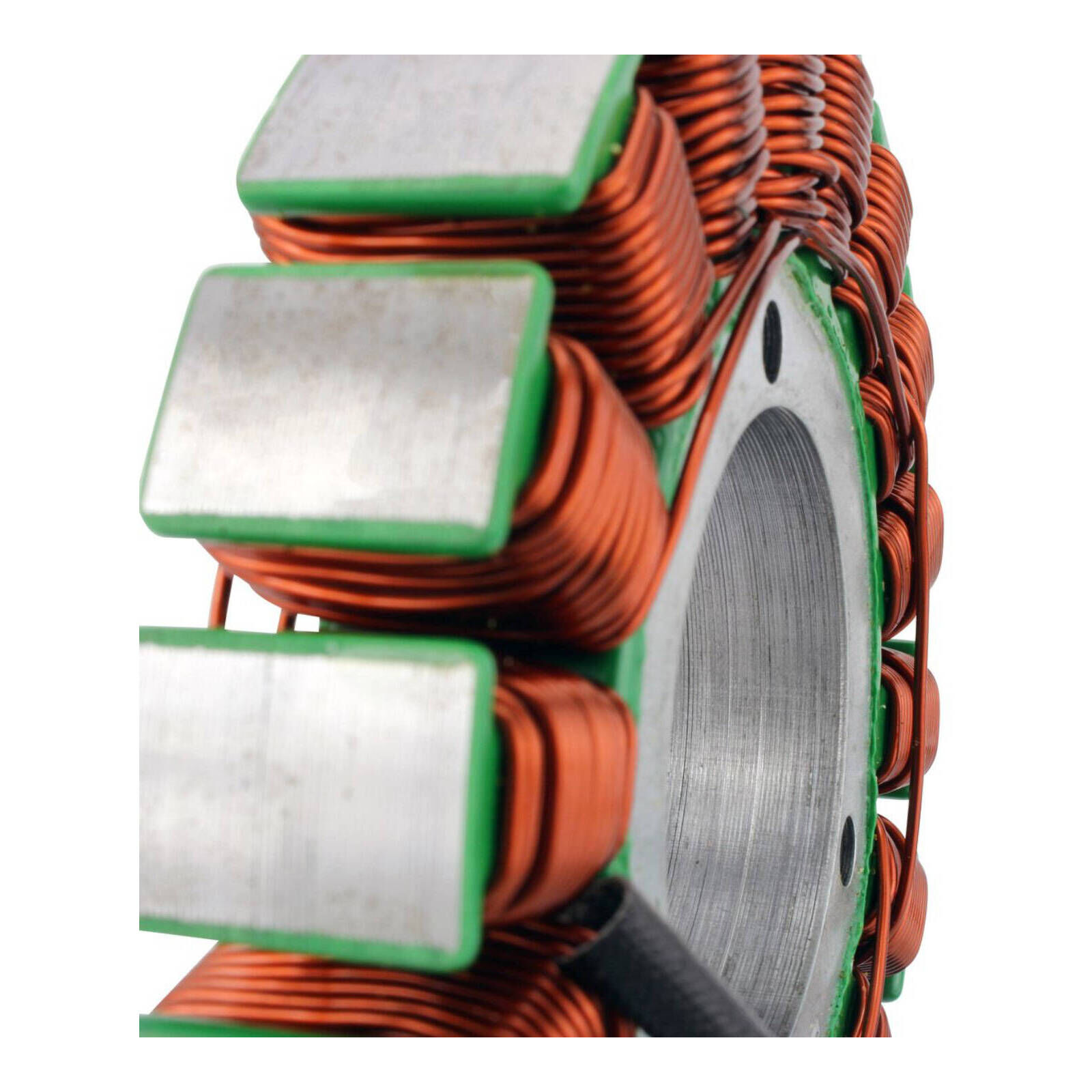

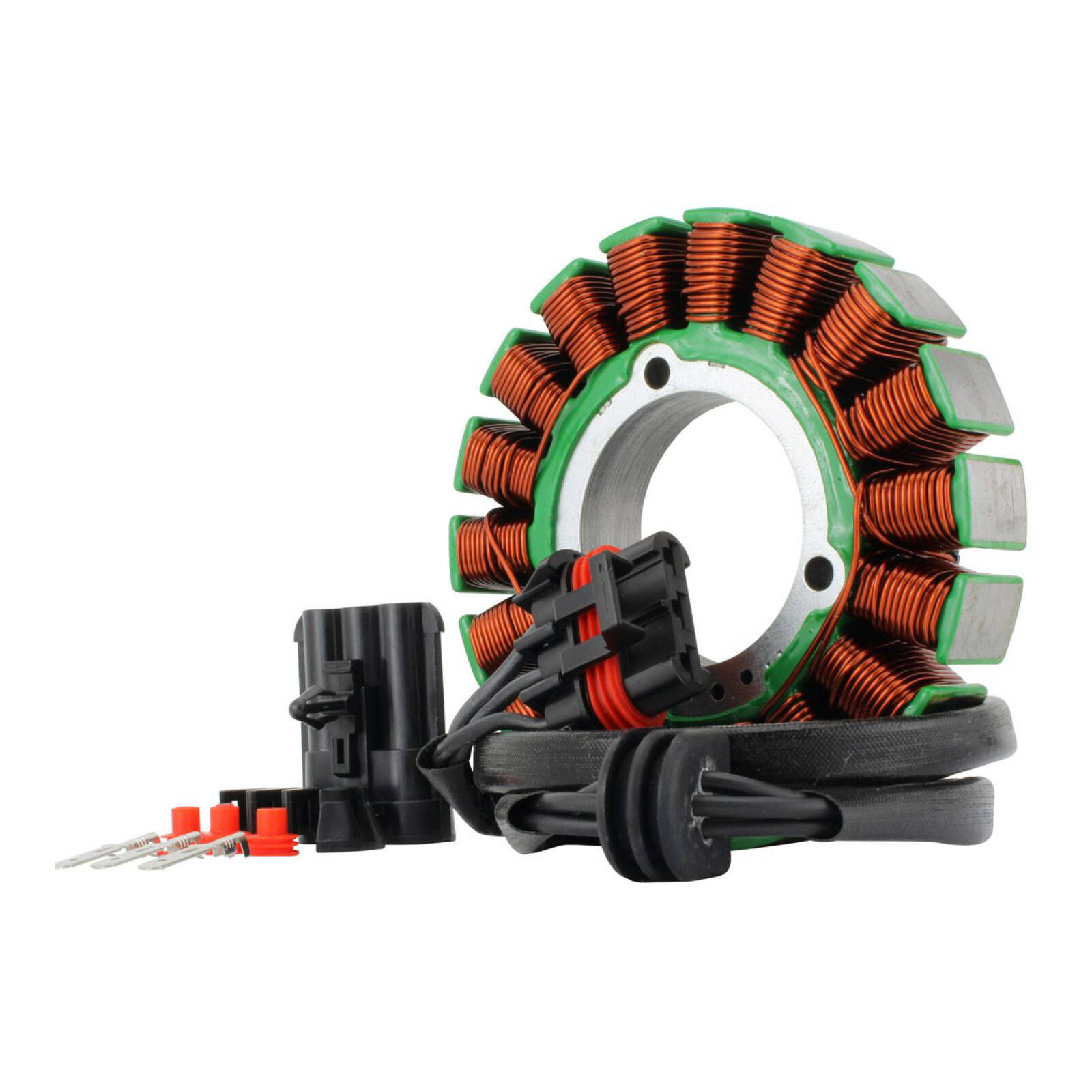

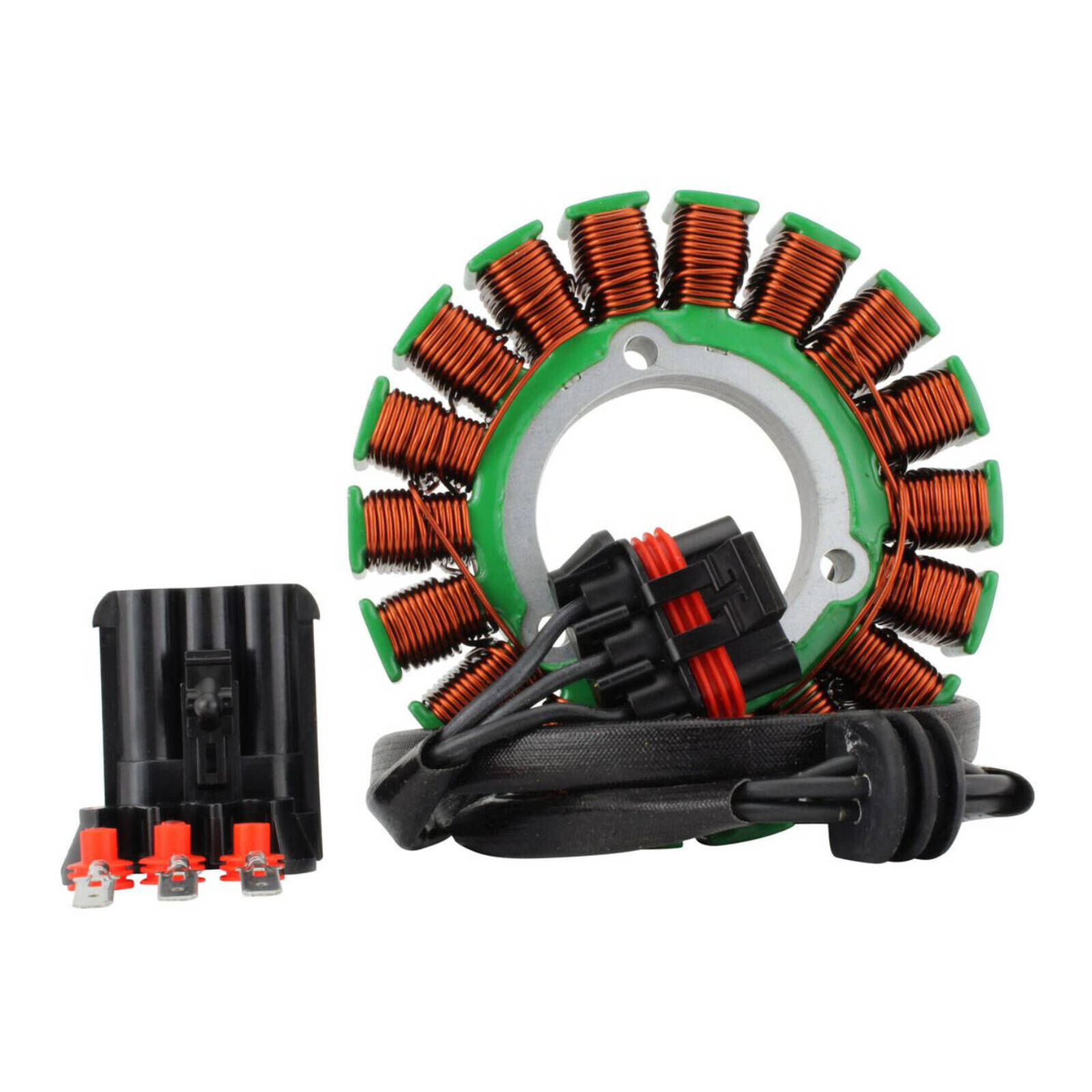

Plug-and-play replacement stator from RM Stator.

Dimensions:

  • Interior diameter: 54 mm
  • Exterior diameter: 126 mm
  • Thickness: 21 mm
  • Length of wires stator to grommet: 120 mm
  • Length of wires grommet to plug: 680 mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins:3
  • Number of poles: 18
  • Wire to wire resistance:
    • Alternator: Between each Yellow = 0.6 ohms +-20%
    • Alternator: to ground = O.L

Details:

  • Direct replacement to your original unit
  • Plug-and-play direct fit easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding resistant to 200 degrees Celsius
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

Find a Store

Details about our showrooms & trading hours are available on our 'Contact Us' page.

Returns & Exchanges

Details about the returns process are available on our 'Returns Policy' page.

SKU RMS010107104
Brand RMSTATOR
Shipping Weight 0.5000kg
