GENERATOR STATOR KAWA KRF 750 TERYX 2013

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

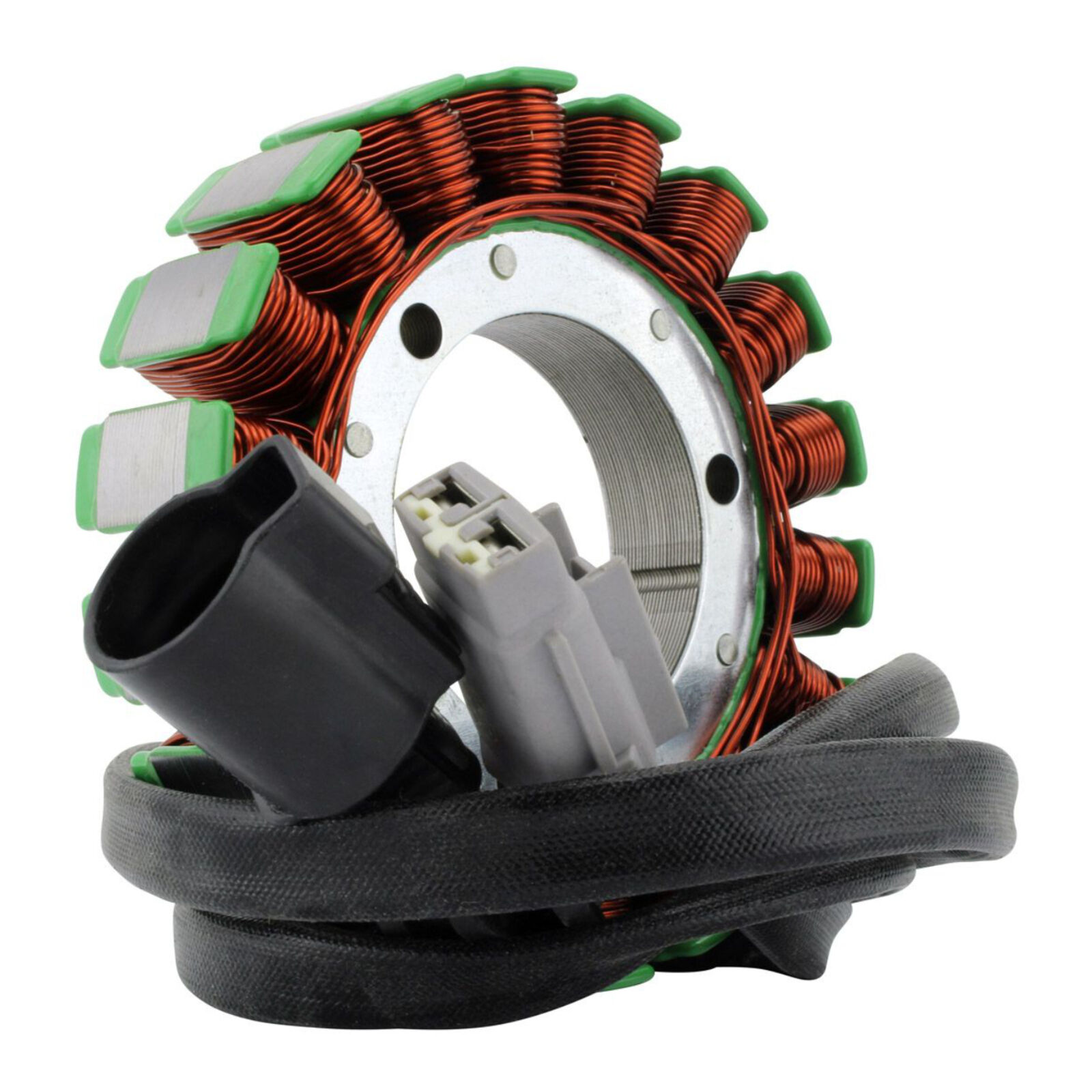

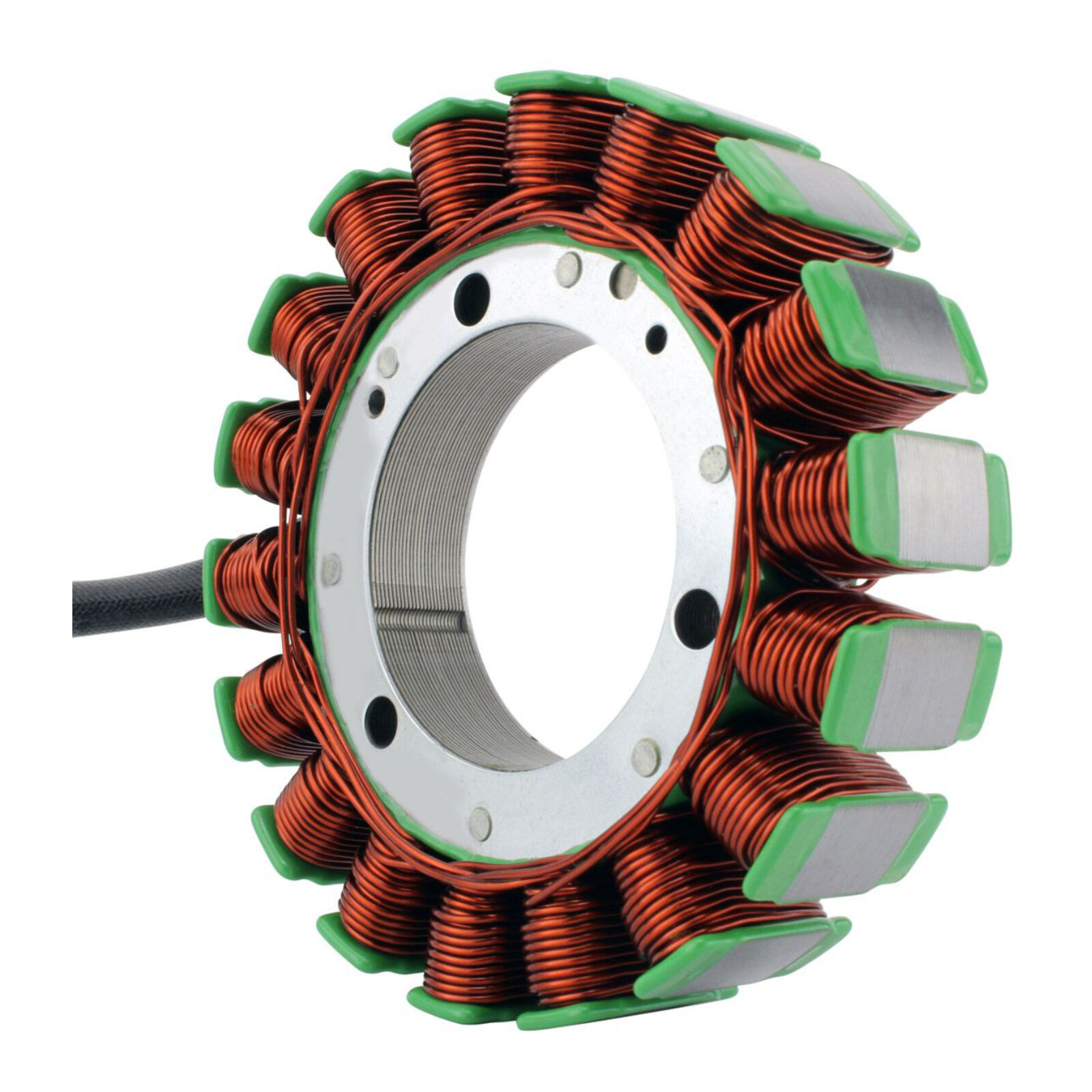

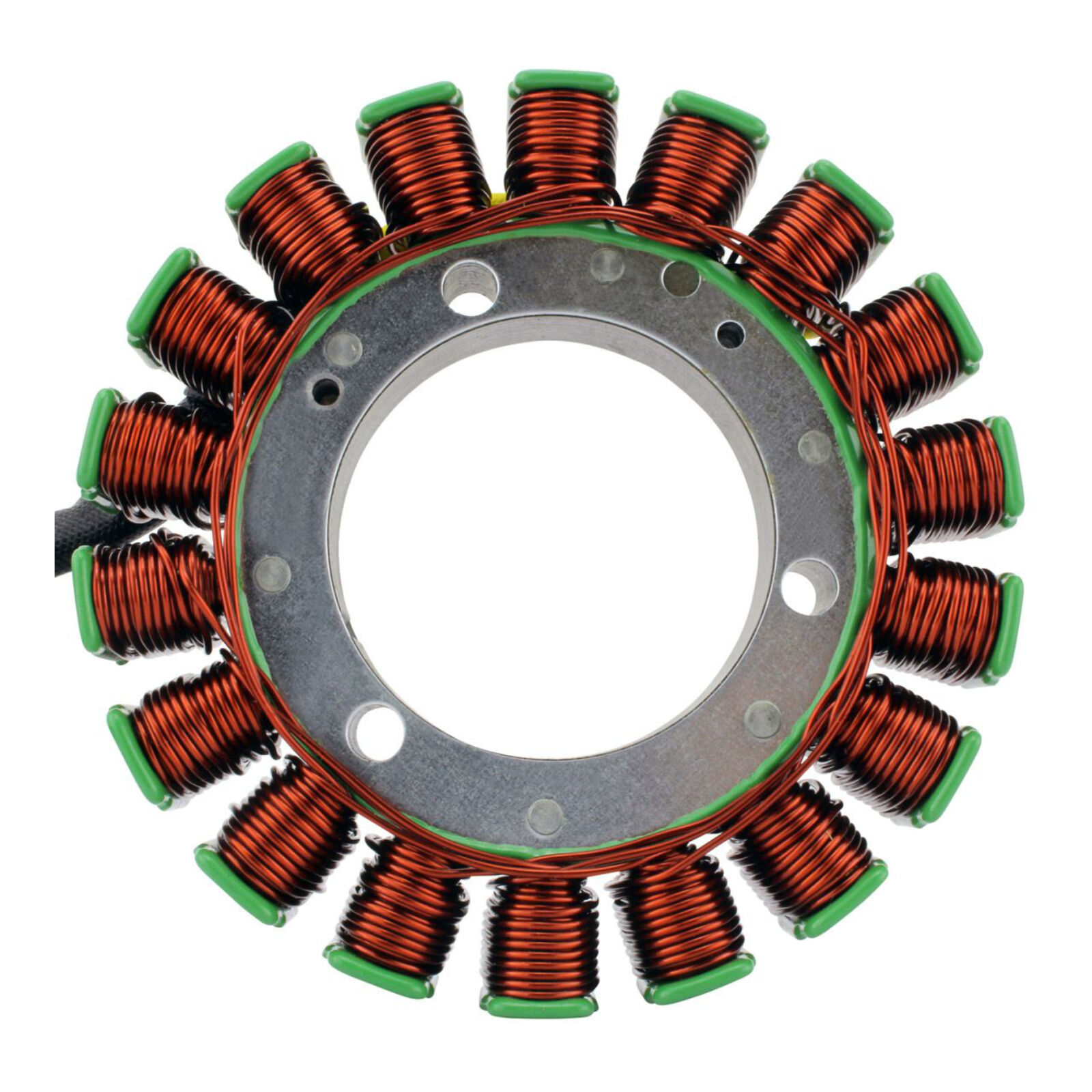

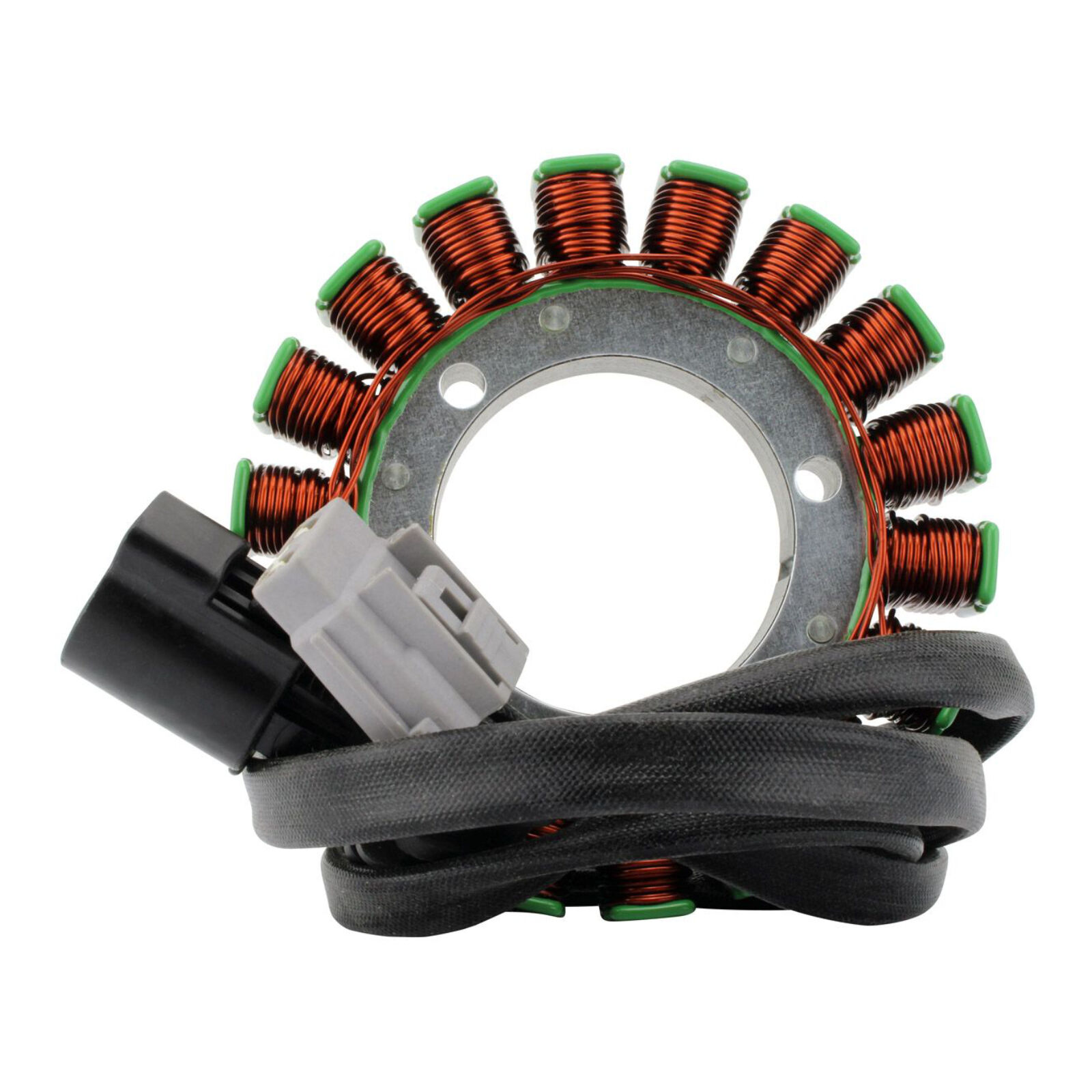

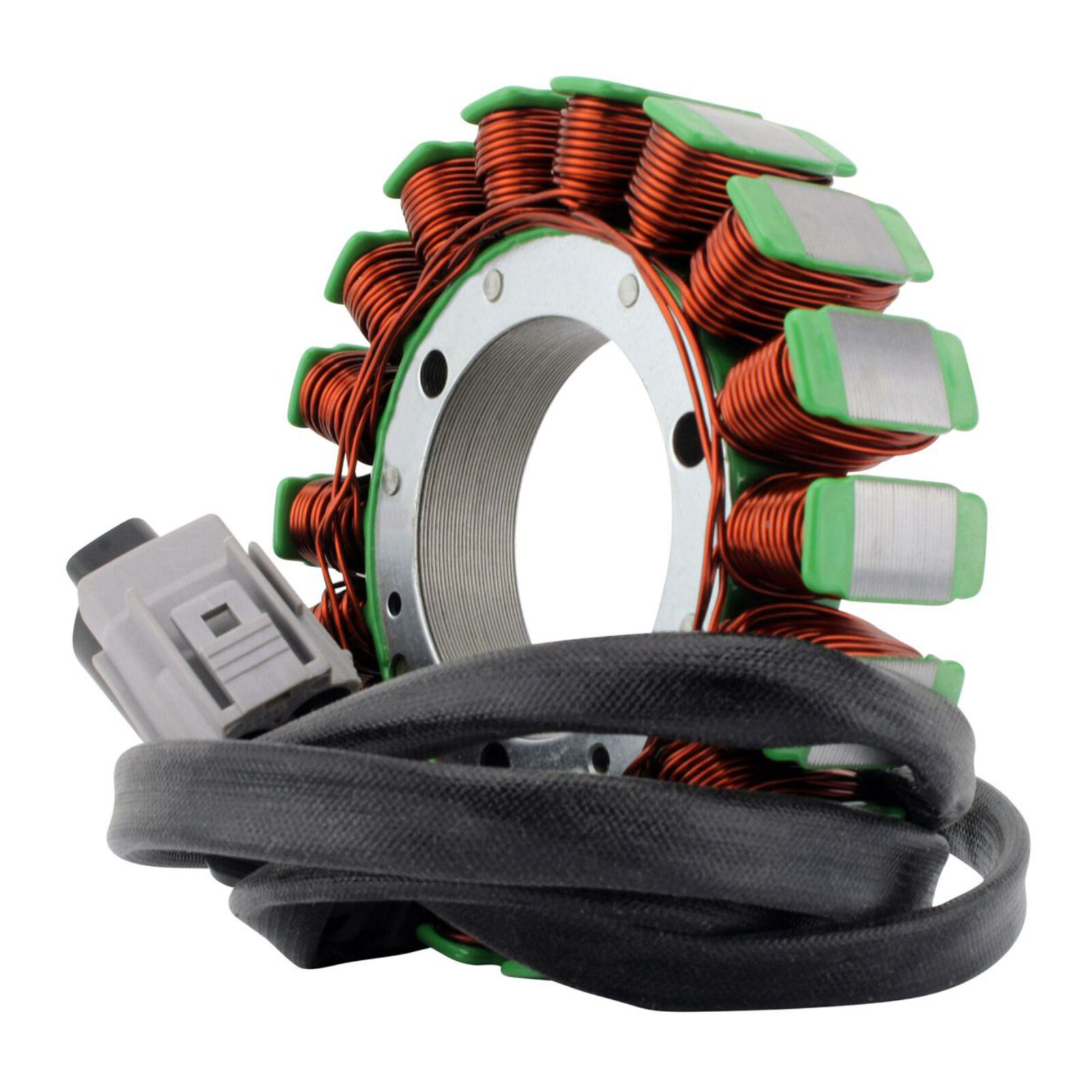

Plug-and-play aftermarket replacement generator stator from RM Stator.

Dimensions:

  • Interior diameter: 54mm
  • Exterior diameter: 115mm
  • Thickness: 18mm
  • Length of wires stator to grommet: 160mm
  • Length of wires grommet to plug: 840mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 2
  • Number of pins: 3
  • Number of poles: 18
  • Wire to wire resistance:
    • Alternator: Black to Black = 0.4 ohms +-20%
    • Alternator: Black to ground = O.L

Details:

  • Direct replacement to your original unit
  • Plug-and-play direct fit easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding resistant to 200 degrees Celsius
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested
