GENERATOR STATOR KAW NINJA 400 18-20 (RMS010-107074)

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

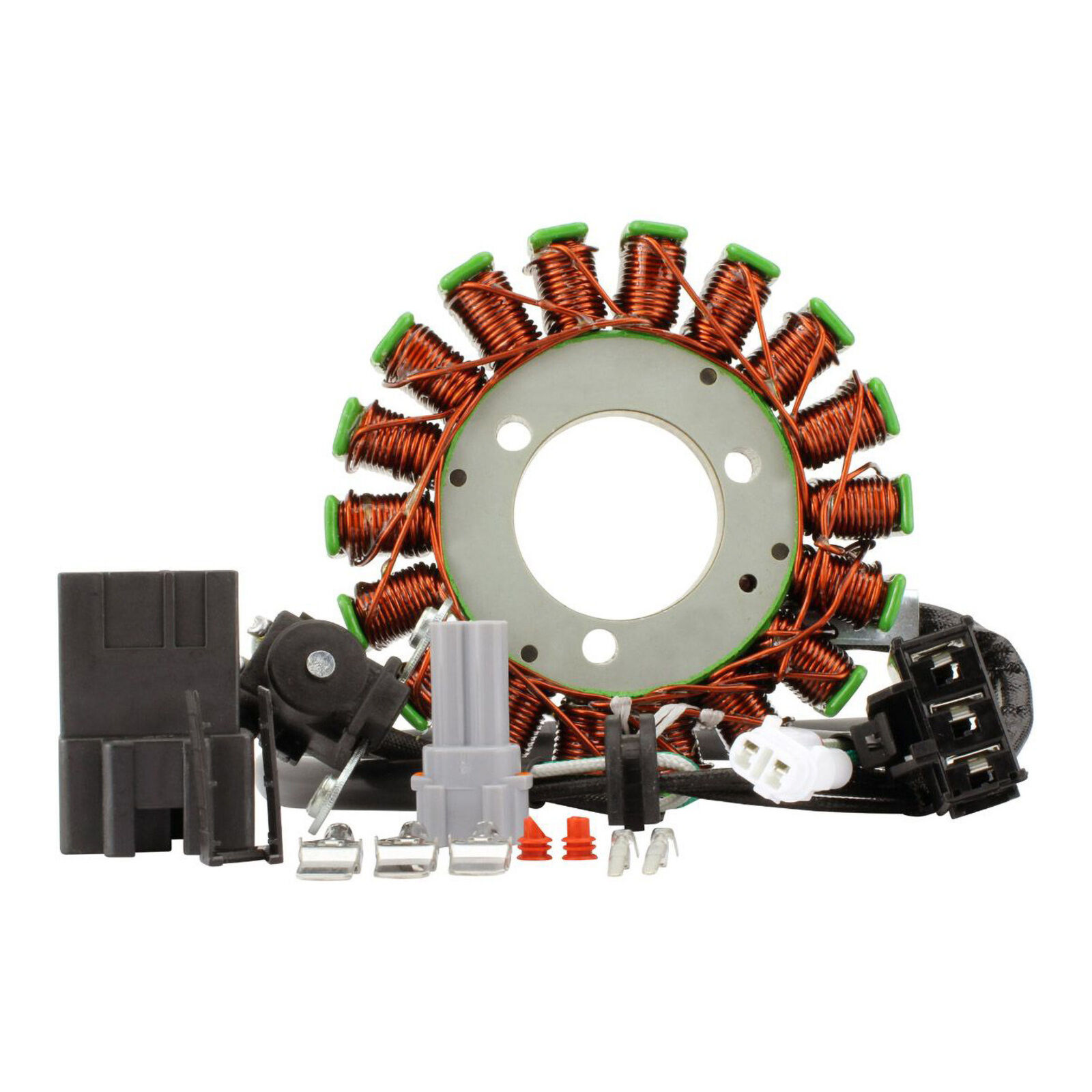

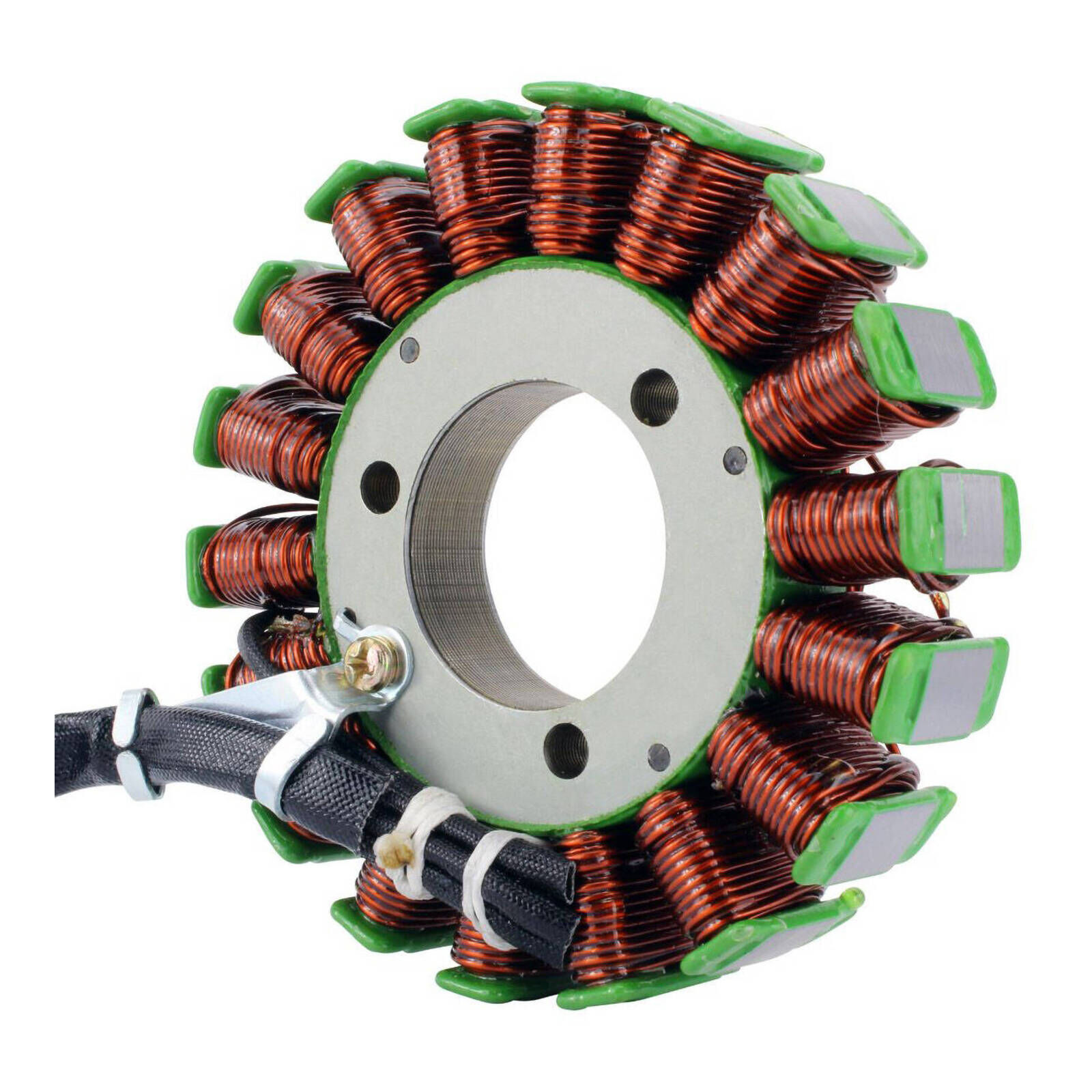

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play direct fit easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:

  • Interior diameter: 38 mm
  • Exterior diameter: 107 mm
  • Thickness: 16 mm
  • Length of wires stator to grommet: 95 mm
  • Length of wires grommet to plug: 380 mm
  • Length of pickup coil's wire to grommet: 75 mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of holes: 3
  • Number of poles: 18

Wire to wire resistance:

  • Alternator : Black to Black = 0.6 ohms +-20%
  • Pickup : White to Green/White = 232 ohms +-20%

Note: Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY
