GENERATOR STATOR HONDA TRX250X 09-21 (RMS010-107110)

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

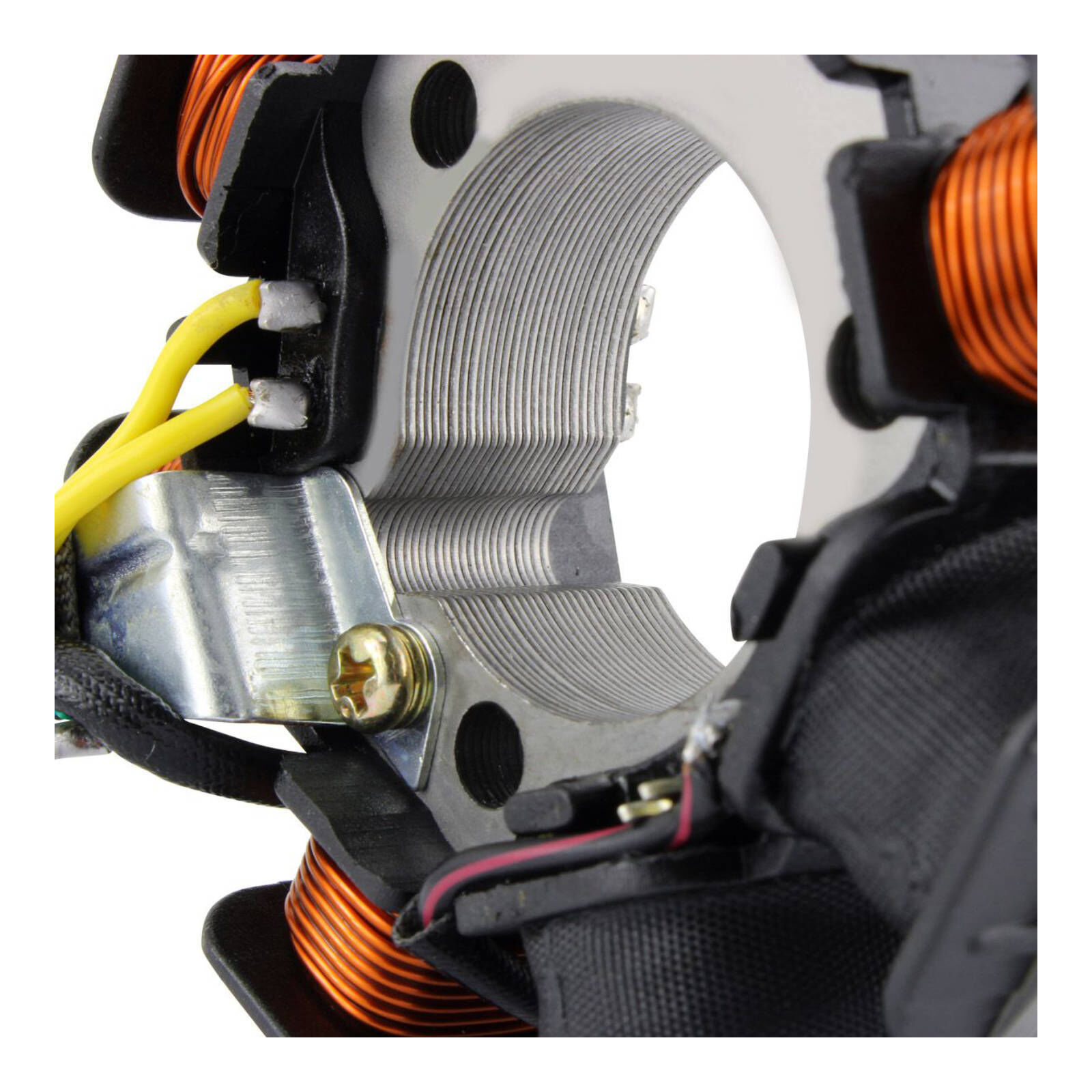

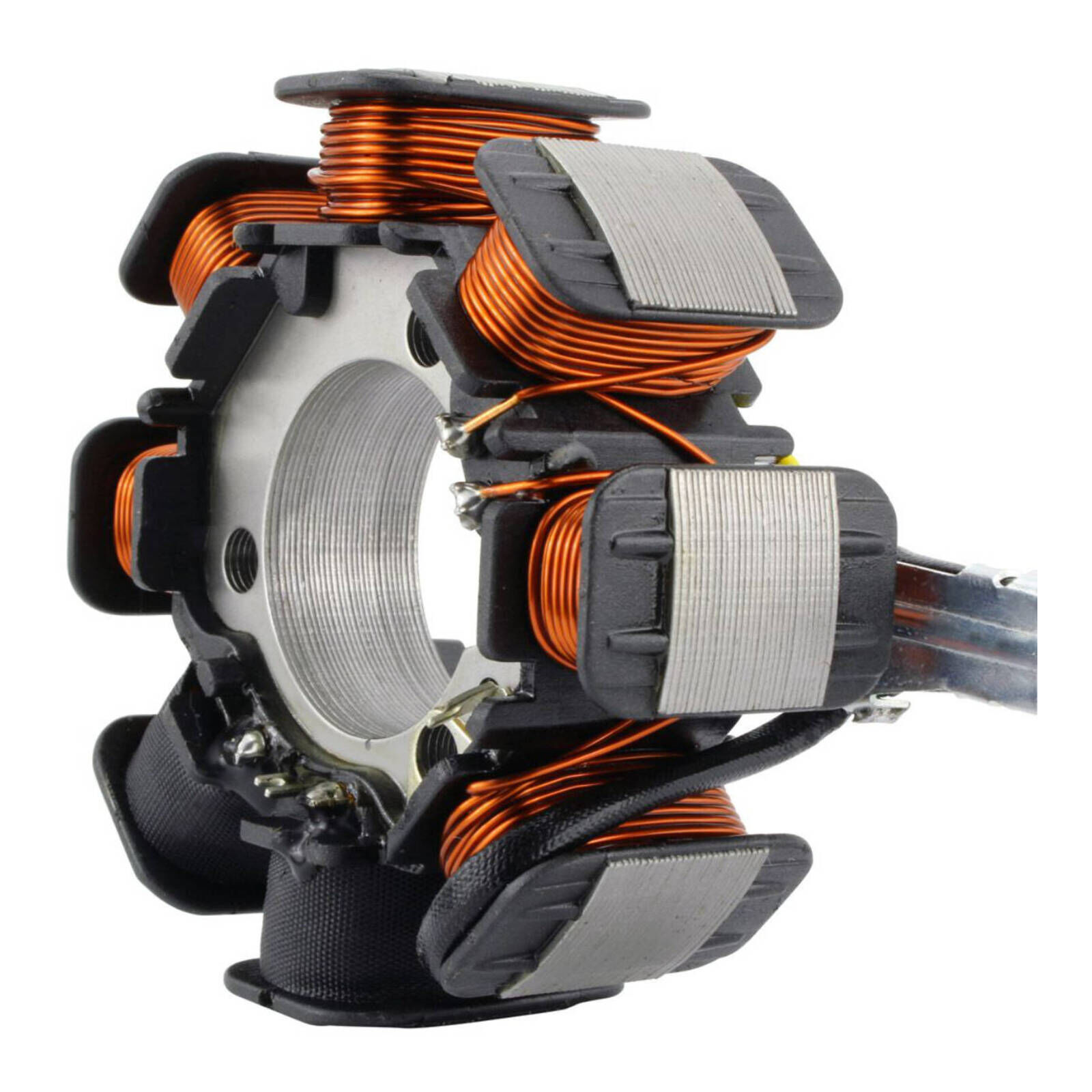

Plug-and-play replacement generator stator from RM Stator.

Dimensions:

  • Interior diameter: 35mm
  • Exterior diameter: 88mm
  • Thickness: 18mm
  • Length of wires stator to grommet: 90mm
  • Length of wires grommet to plug: 140mm
  • Length of pickup coil's wire to grommet #1: 330mm
  • Length of pickup coil's wire to grommet #2: 370mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 8
  • Wire to wire resistance:
    • Alternator: Between each Yellow = 0.7 ohms +-20%
    • Pickup: Blue/Yellow to Ground = 336 ohms +-20%
    • Pickup: Black/Red to Ground = 185 ohms +-20%

Details:

    < li>Direct replacement to your original unit
  • Plug-and-play direct fit easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding resistant to 200 degrees Celsius

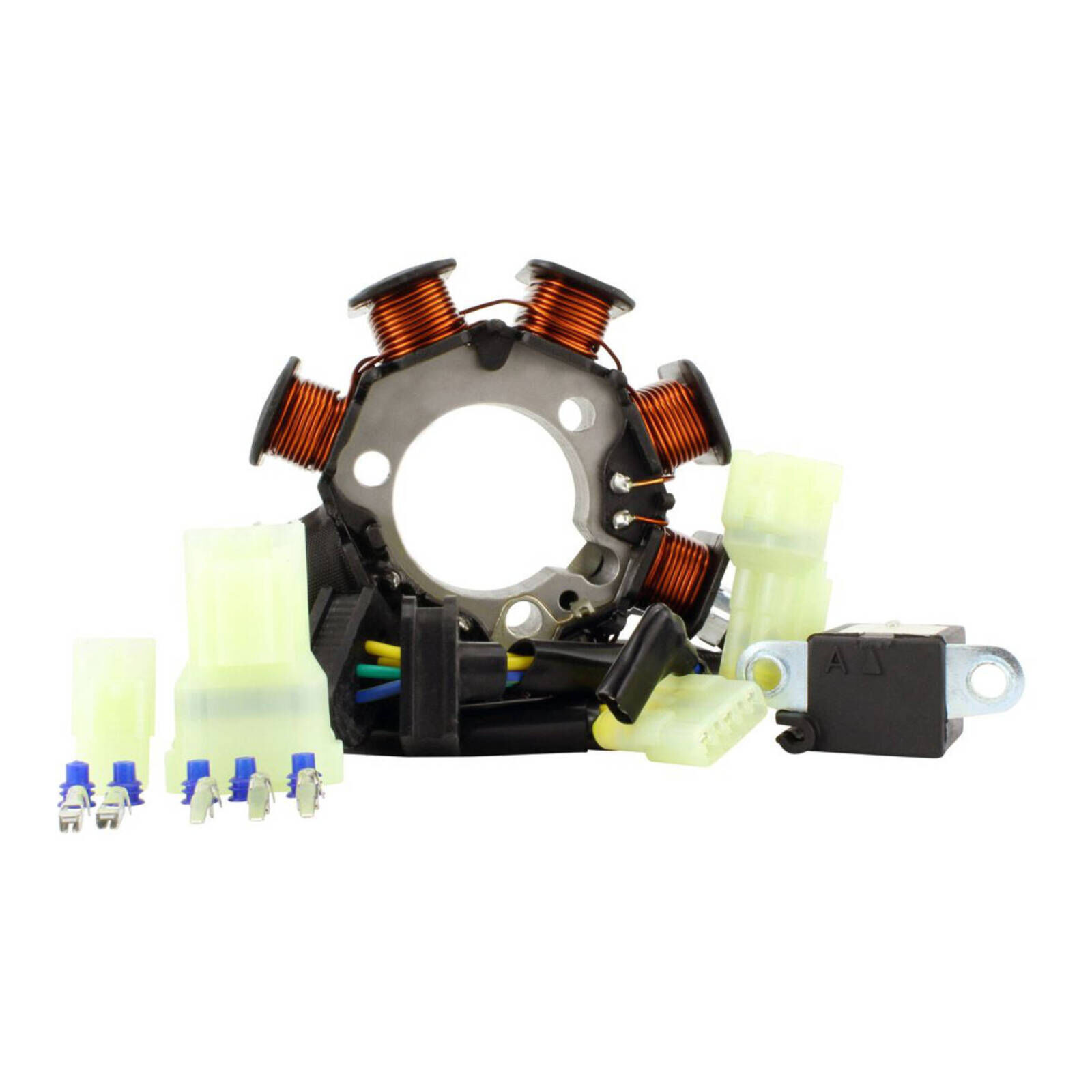

  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

Find a Store

Details about our showrooms & trading hours are available on our 'Contact Us' page.

Returns & Exchanges

Details about the returns process are available on our 'Returns Policy' page.

SKU RMS010107110
Brand RMSTATOR
Shipping Weight 0.5000kg
