DT800 Charging Kit Assorted Polaris Models (Refer to Fitments) (RMS900-108154)

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

  • Direct replacement to your original unit
  • Plug-and-play direct fit easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings resistant to 200 degrees Celsius.

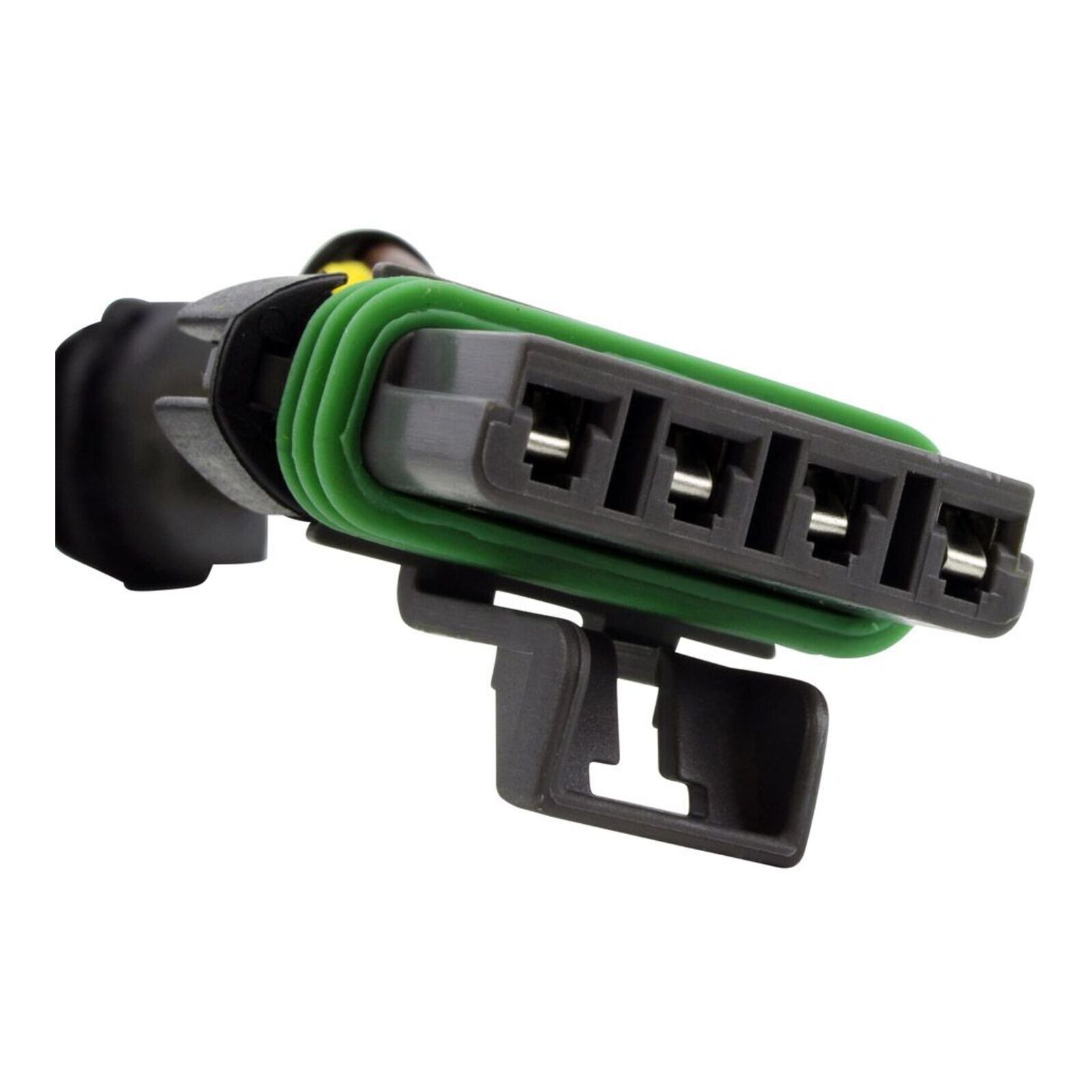

  • Connector included
  • Rubber grommet included
  • All product shipped are tested

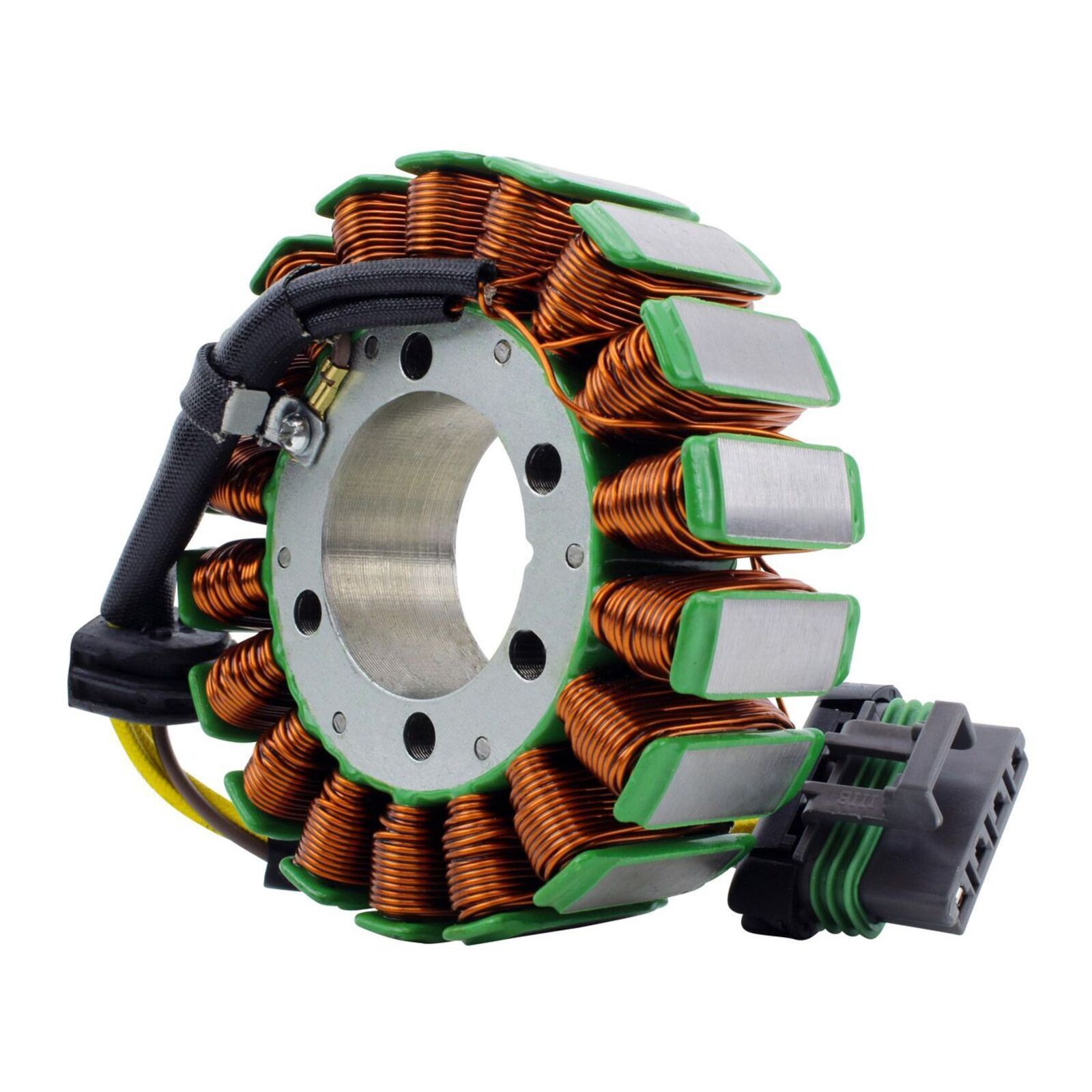

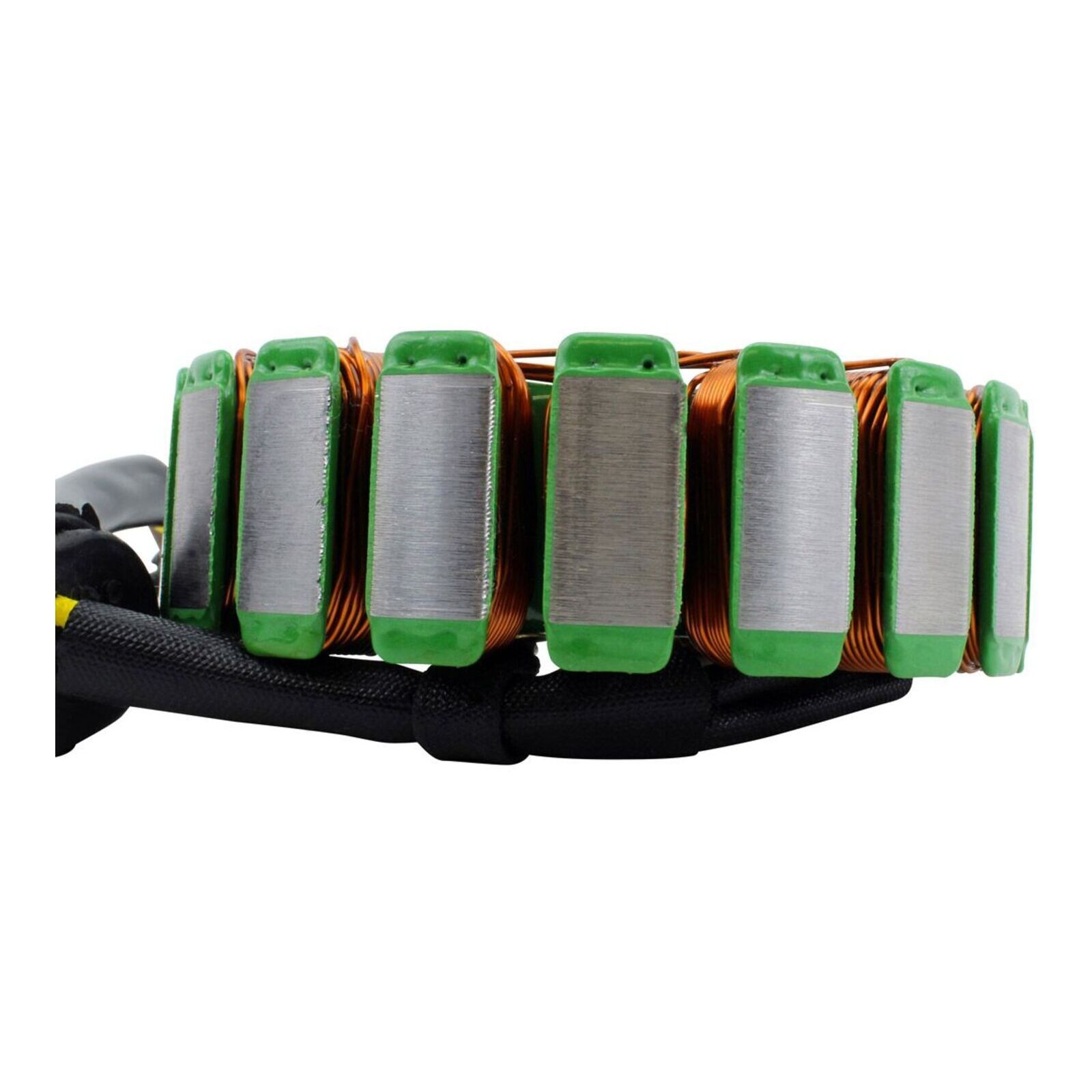

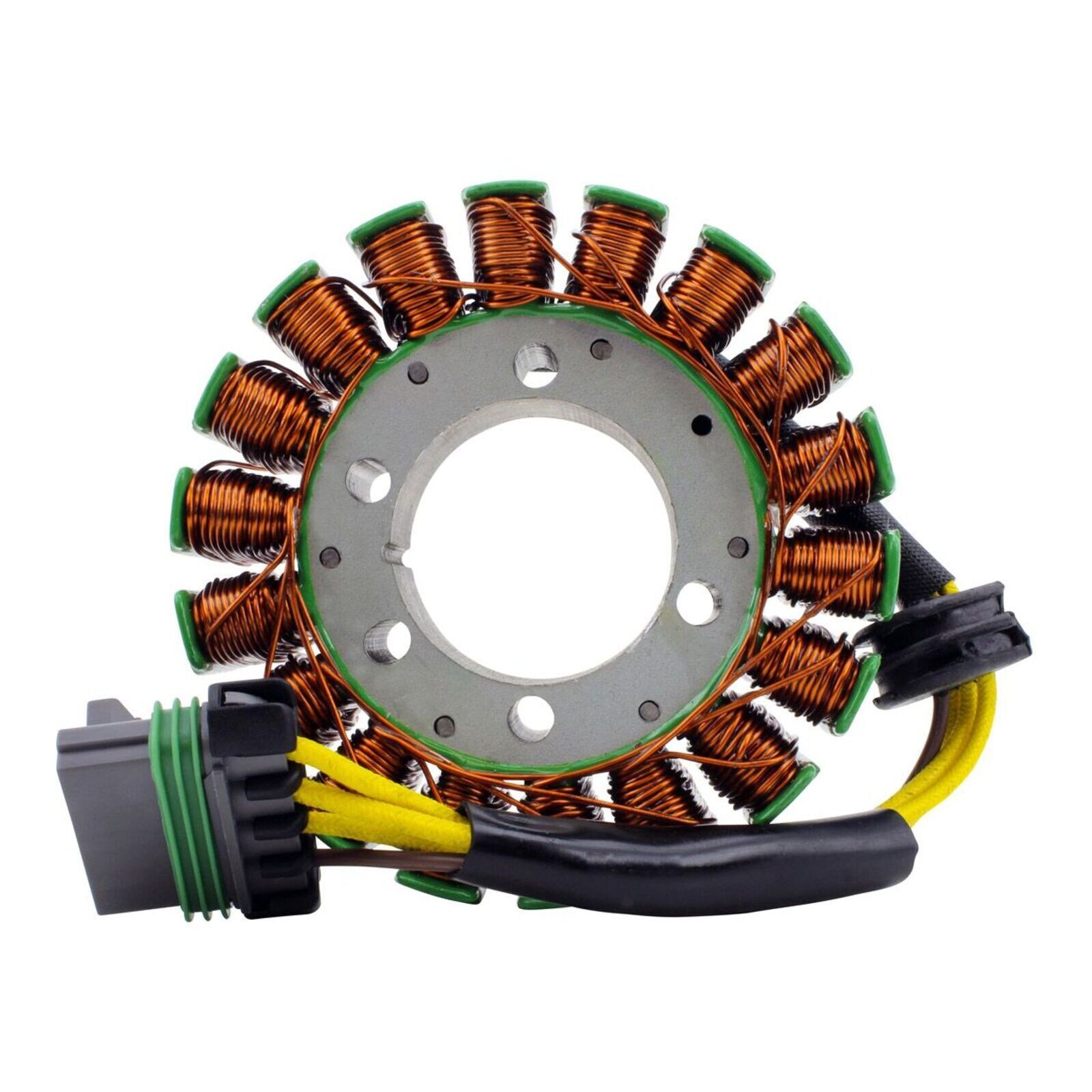

Specifications of Stator:

  • Dimensions:
    • Int erior diameter: 40 mm
    • Exterior diameter: 106 mm
    • Thickness: 24 mm
    • Length of wires stator to grommet: 45 mm
    • Length of wires grommet to plug: 100 mm
  • Other specifications:
    • Number of wires: 4
    • Number of plugs: 1
    • Number of pins: 4
  • Wire to wire resistance:
    • Alternator: Yellow to Yellow = 0.4 ohms +/-20%

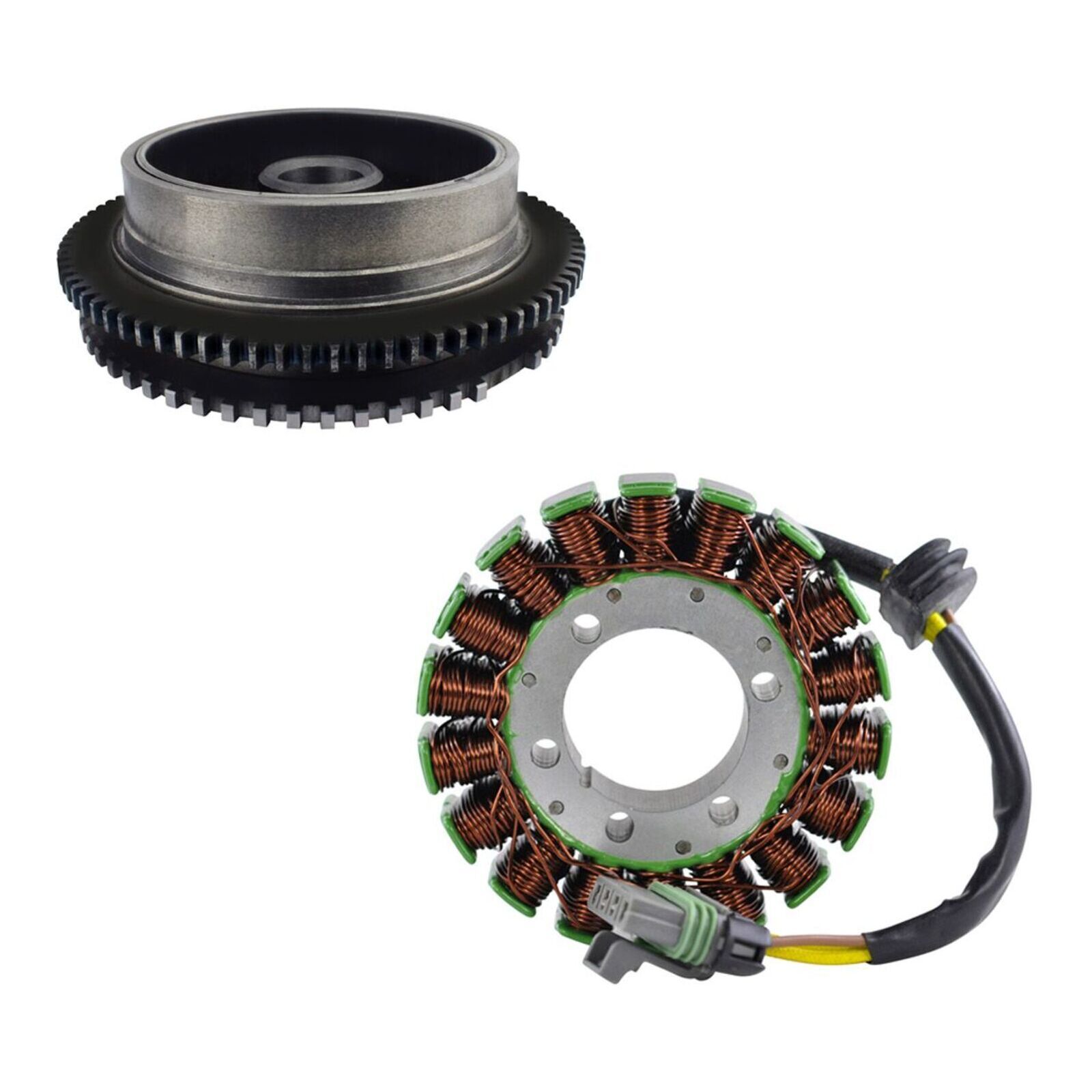

Specifications of Flywheel:

  • Dimensions:
    • E xterior Diameter: 167 mm
    • Interior Diameter: 109 mm
    • Interior Diameter Center Housing: 27 mm
    • Exterior Diameter Center Housing: 40 mm
    • Thickness (exterior): 54 mm
    • Thickness (interior): 43 mm
