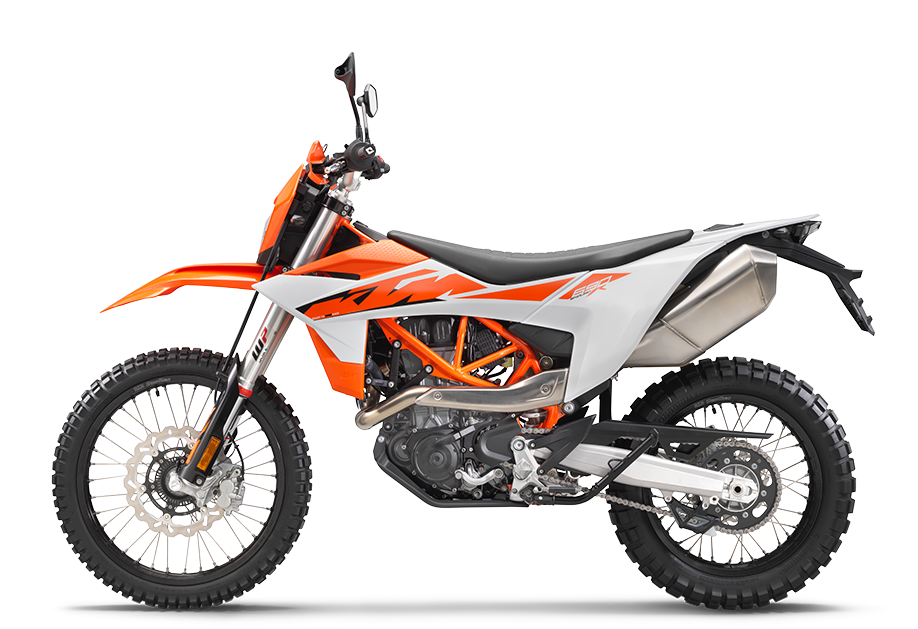

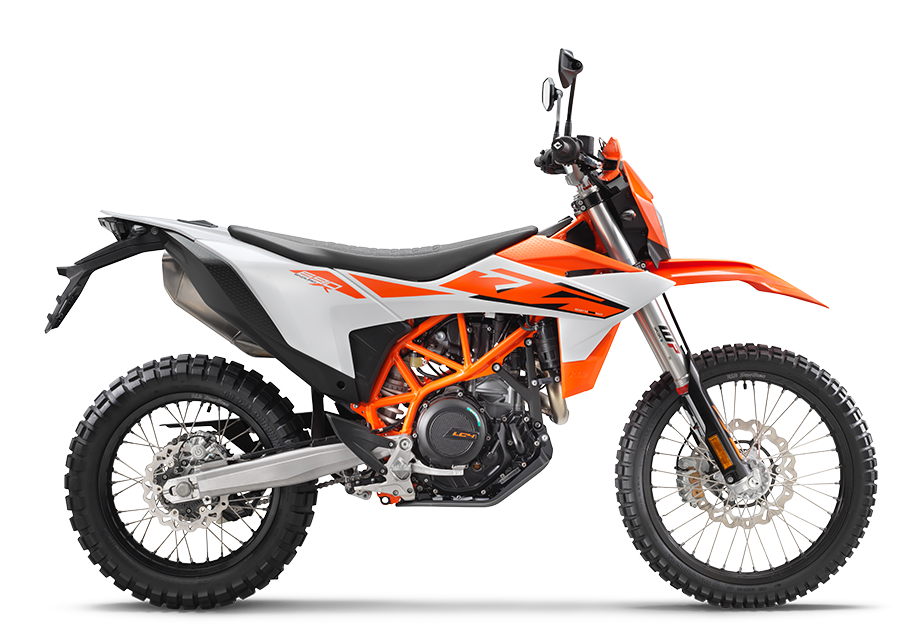

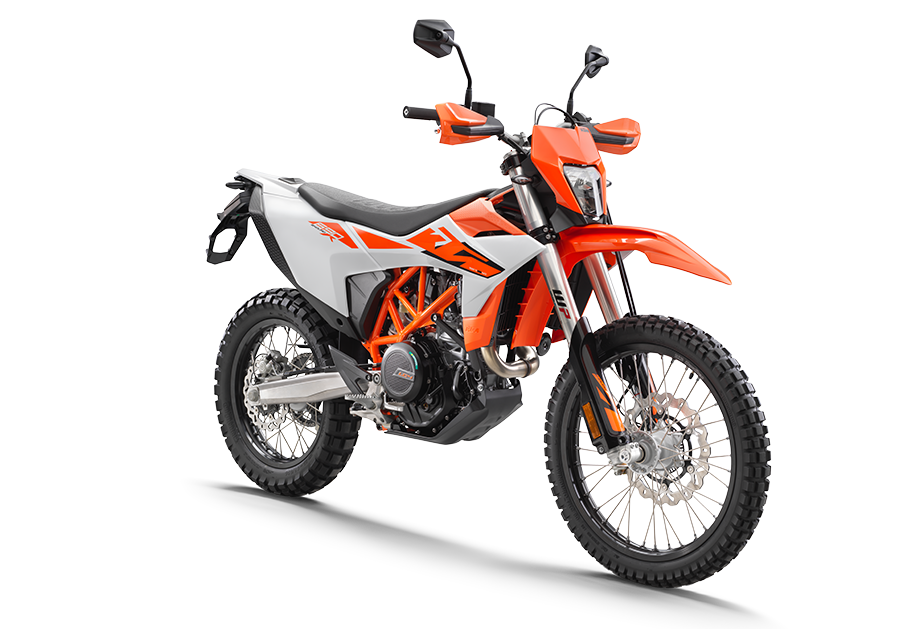

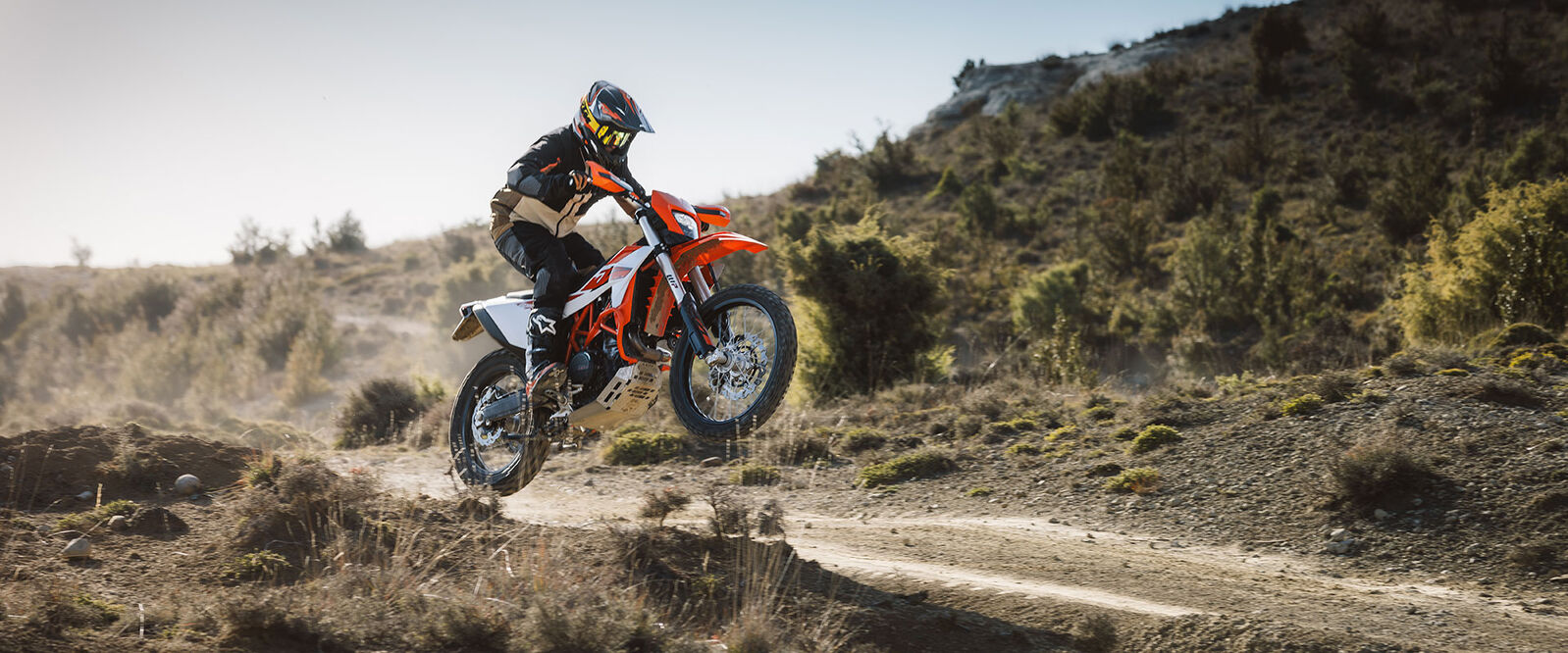

KTM 690 Enduro R (MY26)
All Terrain, All the Time
Orange
$21,195
(Rideaway)
or pay
$100.00* per week.
KTM 690 Enduro R (MY26)
All Terrain, All the Time
$21,195
(Rideaway)
or pay $100.00* per week.
Highlights of the KTM 690 Enduro R (MY26)
Imagine this: Your KTM 690 ENDURO R grumbles with the rising revs as suburbia slowly disappears behind you. Upfront, a bright LED beam lights the way into the early morning mist as you hurtle toward the next dirt track. The next moment, you're blasting off into the wilderness, transitioning from asphalt to grit effortlessly, without breaking a sweat. That's the allure of the KTM 690 ENDURO R - versatility beyond boundaries.
Benefits of this bike
01. CLUTCH IN, REVS UP!
Adjustablity: Finding the perfect setup when attacking your favorite stretch of dirt or twisty mountain pass is easy, thanks to the KTM 690 ENDURO R's adjustable suspension, brake and clutch levers, and footrests - not to mention a complete PowerPart catalog filled with performance and style enhancing add-ons.
TFT Display & Connectivity: The 4.2" TFT dashboard takes prime position ahead of the rider, featuring a unique, specially-designed user interface to suit the compact screen size. Made from bonded glass, the TFT screen also boasts a special coating and polarization to reduce glare and increase visibility in all lighting conditions. Riders can also access music, incoming calls, turn-by-turn navigation, and Ride modes via the dashboard - with a USB-C port for device charging duties.
Bodywork: With an ergo triangle specifically designed to cater to everything from fast berms, to casual commutes, the KTM 690 ENDURO R boasts aggressive, offroad-ready bodywork. This has been perfectly styled to allow for easy transitions between riding on the street to the dirt. The bodywork is also made from proven, flexible, and long-lasting PP plastic material better suited for off-roading and aggressive riding.
02. DROP THE CLUTCH!

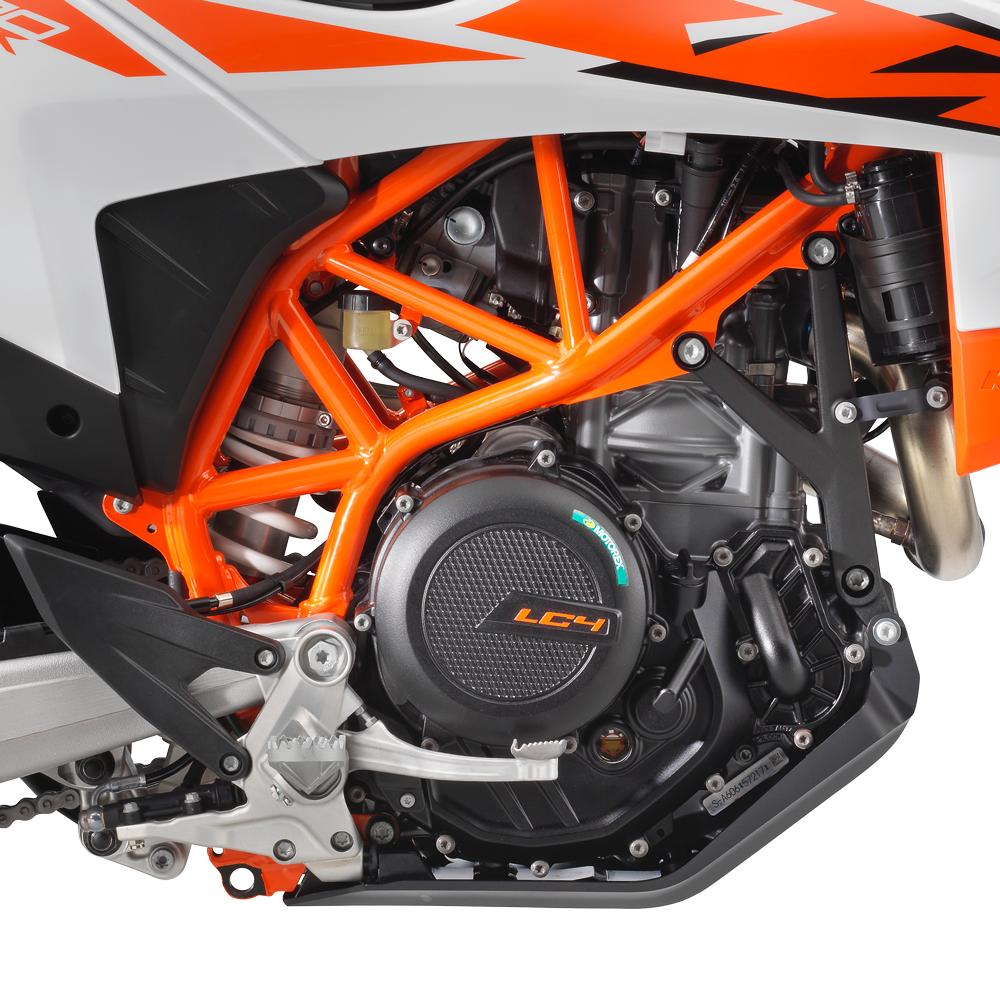

Engine: Welcome to the next generation of the legendary KTM LC4 single-cylinder powerhouse! Still as bulletproof and hard-hitting as ever, but updated with new Clutch and Stator covers, crankcase, an improved oil delivery system, and - most importantly - more performance.
RALLY MODE: Unlock even more off-road customization and ability with the optional RALLY Mode. Thanks to the 4.2" TFT display, riders can use RALLY Mode to toggle additional settings. A memory feature is added to the line-up. When the motorcycle is turned off, it remembers your selected Ride Mode and retains this mode once it starts up.
DYNAMIC SLIP ADJUST: Dynamic Slip Adjust is an all-new feature making is debut on the KTM 690 ENDURO R. Available only in RALLY Mode, Dynamic Slip Adjust automatically balances the allowed wheel slip to the traction in any given situation. To learn more about this feature click HERE.
OFFROAD ABS: Generally speaking, ABS and dirt don't play well together. However, that is not the case when it comes to KTM's proven OFFROAD ABS. In this mode, riders can lock up the rear wheel, giving riders more control in offroad terrain and allowing advanced riders to brake harder before ABS activates. However, should you want to push yoursellf even further. The dedicated ABS-off button allows all ABS to be disabled.
LED Lighting: The KTM 690 ENDURO R is equipped with a powerful LED headlight. Not only do these work when the world becomes dark, but they also provide improved visibility when navigating busy traffic or misty road conditions.
03. HIT THE ROAD
Service: The service intervals have been extended, requiring oil changes every 15,000 km instead of 10,000 km, with valve clearance checks now needed every 30,000 km.

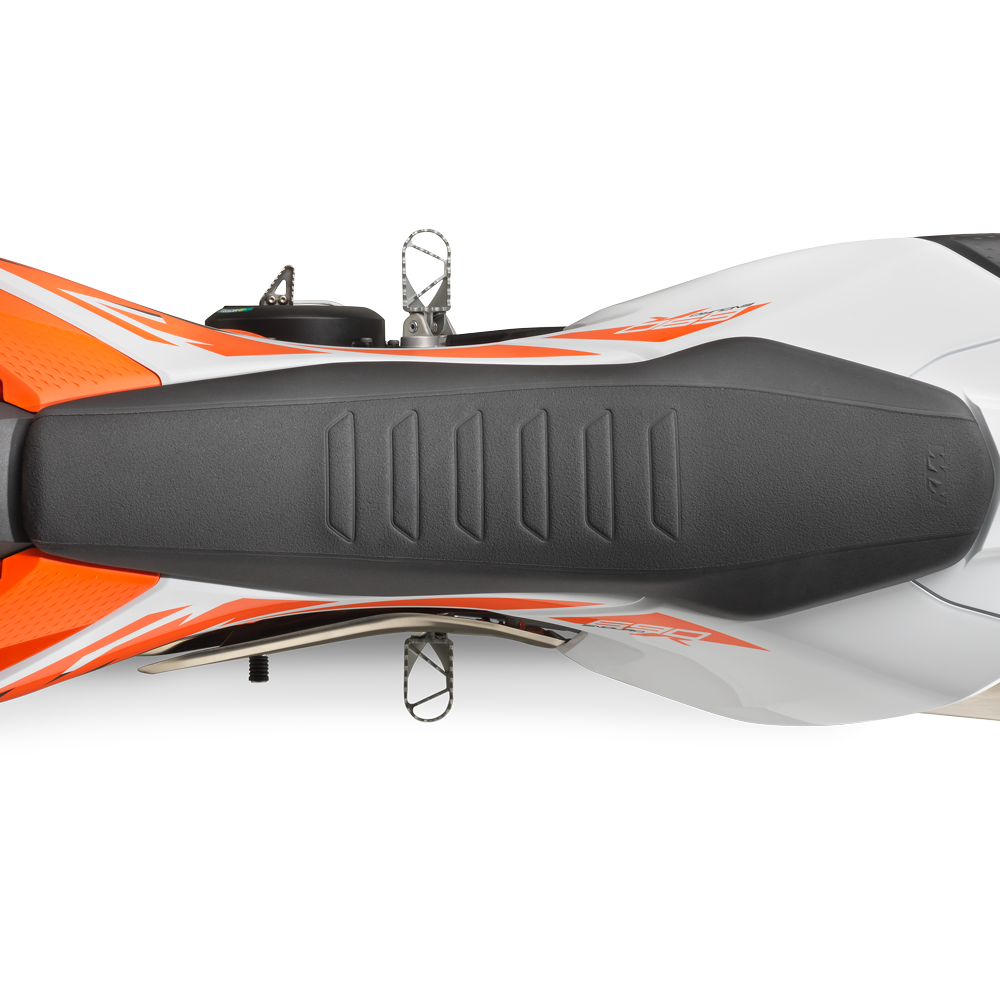

Seat: The KTM 690 ENDURO R seat does three things. Firstly, it allows fluid rider motion when shredding offroad, thanks to its ergonomic shape and 36.8 in (935 mm) seat height. Secondly, it provides good comfort when you need to cover the ground between trails.
Traction Control: The KTM 690 ENDURO R is fitted with Cornering MTC and Cornering ABS, which uses the input from the 6D sensor to adapt in cornering situations. The MTC and ABS can also be turned off completely.
04. CARVE IT UP
Front Fork: The KTM 690 ENDURO R features an adjustable WP XPLOR 48 upside-down fork with a split fork design. This was originally developed by WP and KTM for its championship-winning XC-W models and is fitted with springs on both sides with separate damping functions - compression on the left and rebound on the right-hand side.
Rear Shock: The WP XPLOR shock absorber is connected to the swingarm by a linkage. This ensures a progressive suspension character and a high resistance to bottoming out. Fully adjustable, including high and low-speed compression, you can set up the shock absorber to any circumstances and rider preference.

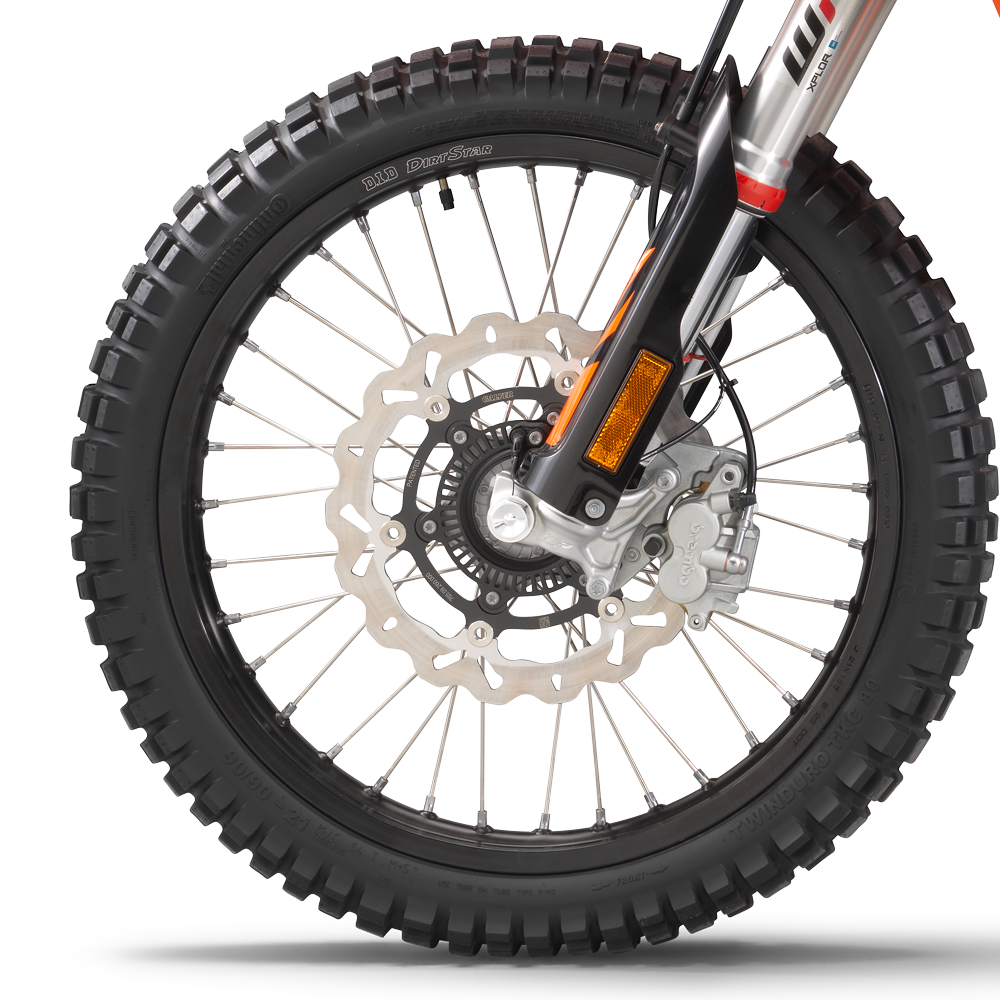

Brakes: Sublime class-leading BREMBO brakes combined with lightweight wave discs - 300 mm diameter front and 240 mm on the rear wheel - to provide a crucial combination of stopping power and a consistent brake feel.
KTM 690 Enduro R (MY26)
All Terrain, All the Time
$21,195
(Rideaway)
or pay $100.00* per week.
Engine
| Design | 1-cylinder, 4-stroke engine | |
|---|---|---|
| Displacement | 692.7 cm³ | |
| Power | 79 PS | |
| Torque | 73 Nm | |
| Transmission | 6-speed | |
| CO2 emissions | 99 g/km | |
| Cooling | Liquid cooled | |
| Engine cylinder | Single cylinder | |
| EMS | Keihin EMS with RBW, twin ignition | |
| Engine oil | Motorex Power Synth SAE 10W-50 | |
| Engine stroke | 4-Stroke | |
| Silencer | Stainless steel primary and secondary silencer |
Chassis
| Brake disc diameters (front/rear) | 300 / 240 mm | |
|---|---|---|
| Front brake disc diameter | 300 mm | |
| Rear brake disc diameter | 240 mm | |
| Front brake | Disc brake | |
| Rear brake | Disc brake | |
| Chain | 520 X-Ring | |
| Frame design | Chromium-Molybdenum steel trellis frame, powder coated | |
| Steering head angle | 62.3 ° | |
| Rear subframe design | Self-supporting plastic tank | |
| Trail | 120 mm | |
| Wheelbase | 1506 mm |
Suspension
| Front suspension | WP XPLOR-USD, Ø 48 mm | |
|---|---|---|
| Rear suspension | WP XPLOR with Pro-Lever linkage | |
| Suspension travel (front) | 265 mm | |
| Suspension travel (rear) | 250 mm | |
| Front suspension adjustment | Compression and rebound adjustable | |
| Rear suspension setting | Compression (high and low speed), rebound and preload adjustment |
Dimensions
| Seat height | 935 mm | |
|---|---|---|
| Wheelbase | 1506 ± 15 mm | |
| Tank capacity (approx.) | 13.3 l | |
| Ground clearance | 265 mm | |
| Weight (without fuel) | 152 kg | |
| Weight fully fueled | 162 kg | |
| Wheelbase tolerance | 15 mm | |
| Front wheel diameter | 21 " | |
| Rear wheel diameter | 18 " | |
| Front wheel width | 1.85 " | |
| Rear wheel width | 2.5 " | |
| Wheels | 1.85 x 21"; 2.5 x 18" |
Finance
Brisbane Motorcycles offer a range of competitive finance packages that can be tailored to each individual. Our finance options revolve around three key principles; quick, competitive, and hassle free. No matter what your circumstances are, we urge you to fill out a quick online enquiry.
We have multiple lenders to choose from so our Business Managers will do all the work when it comes to finding the best possible package. With low bank rates and same-day approvals on most processed applications, Brisbane Motorcycles is a convenient one stop shop.
We can finance additional extras such as accessories or riding gear, extended warranties, and various other extras that will ensure the absolute maximum safety and enjoyment after your purchase.
Put simply if you are looking to borrow money to fast track your purchase then Brisbane Motorcycles has you covered!
Insurance
At Brisbane Motorcycles we are registered agents for all of the major motorcycle insurance companies. What does this mean for you? Often our insurance premiums are much cheaper than those of online insurance companies. We can broker the best possible insurance policy for you that covers all of your needs for the lowest possible price.
Our insurance products include but are not limited to:
- Fire and theft.
- Fully comprehensive.
- Loan protection insurance.
- Death and permanent disability.
- Tyre and rim.
Bike Stock No: KTM-ENDR-690-MY26_1, quote this when you contact us to fast-track your enquiry.
