ARROW 71829AKN Silencer - INDY RACE Aluminium Silver with Carbon End Cap - YAMAHA YZF-R1 1000

Free Shipping on Orders Over $50!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

For: 2015 - 2016 For: 2017 > 2022

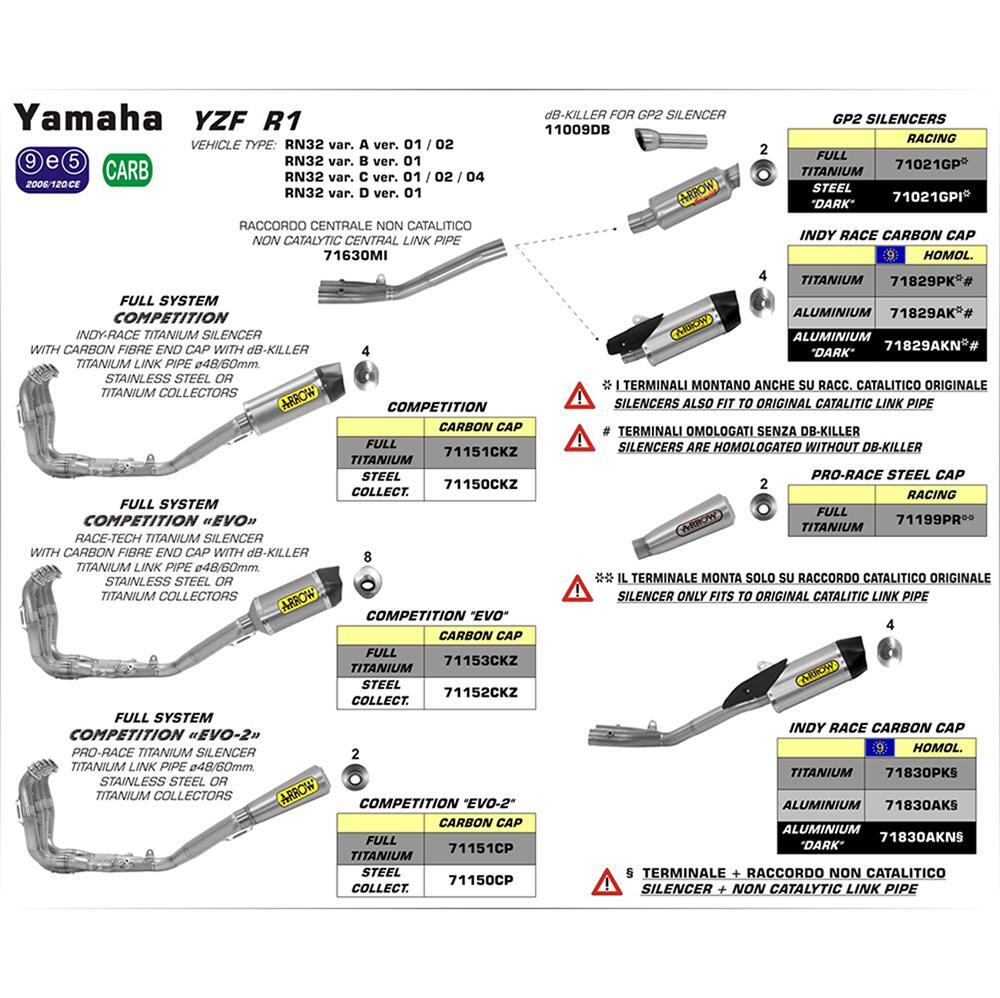

In the diagrams, a Broken Line indicates that both items will connect together or will connect with the O.E. corresponding item at time of initial fitment.

Arrow Part Number - 71829AKN

• The INDY RACE Silencer has a Diamond Oval body profile using Aluminium with a blacl anodized finish.
• The End Cap [#4 profile] is created with carbon fibre for a modern stylish finish.
• The silencer is supported with a fixed welded brackect for mounting.
• This ARROW Homologated silencer complies with ADR 83:00 Noise Standard (legal in all Australian States).
• Note -
  RE 2015 > 2016 models: For correct initial fitment, this Silencer will either connect to the ARROW Central 'Non Catalytic' Link Pipe - Part# 71630MI
  Or alternatively, the O.E. exhaust headers / collector / Catalyst unit can be retained.
  RE 2017 > 2022 models: For correct initial fitment, this Silencer will either connect to the ARROW Central 'Non Catalytic' Link Pipe - Part# 71672MI
  Or alternatively, the O.E. exhaust headers / collector / Catalyst unit can be retained.



Specifications for LINK-PIPE - 71829AKN

Arrow Part Number - 71829AK
Fits: YAMAHA -
▪ YZF-R1 / R1M for 2015 - 2016
▪ YZF-R1 for 2017 - UP

Note - Correct fitment for 2015 - 2016 models, this silencer is designed to either connected to the ARROW Central Non Cat Link Pipe - Part# 82-716-30MI
Or alternatively, the O.E. exhaust headers / collector unit can be retained.
Refer to model diagrams above. In the diagram, a Broken Line indicates that both of the connected items are optional for initial fitment.

Note - Correct fitment for 2017 - UP models, this silencer is designed to either connected to the ARROW Central Non Cat Link Pipe - Part# 82-716-72MI
Or alternatively, the O.E. exhaust headers / collector unit can be retained.
Refer to model diagrams above. In the diagram, a Broken Line indicates that both of the connected items are optional for initial fitment.

• The RACE-TECH Silencer has the Diamond Oval profile in Aluminium with a silver anodized finish.
  The silencer is supported with a fixed welded brackect for mounting.
• The End Cap is created in carbon fibre for a modern stylish finish.
• This ARROW Homologated silencer complies with ADR 83:00 Noise Standard (legal in all Australian States).




Specifications for RACE-TECH Silencer - 71829AK

Arrow Part Number - 71829AKN
Fits: YAMAHA -
▪ YZF-R1 / R1M for 2015 - 2016
▪ YZF-R1 for 2017 - 2019

Note - Correct fitment for 2015 - 2016 models, this silencer is designed to either connected to the ARROW Central Non Cat Link Pipe - Part# 82-716-30MI
Or alternatively, the O.E. exhaust headers / collector unit can be retained.
Refer to model diagrams above. In the diagram, a Broken Line indicates that both of the connected items are optional for initial fitment.

Note - Correct fitment for 2017 - UP models, this silencer is designed to either connected to the ARROW Central Non Cat Link Pipe - Part# 82-716-72MI
Or alternatively, the O.E. exhaust headers / collector unit can be retained.
Refer to model diagrams above. In the diagram, a Broken Line indicates that both of the connected items are optional for initial fitment.

• The RACE-TECH Silencer has the Diamond Oval profile in Aluminium with a silver anodized finish.
  The silencer is supported with a fixed welded brackect for mounting.
• The End Cap is created in carbon fibre for a modern stylish finish.
• This ARROW Homologated silencer complies with ADR 83:00 Noise Standard (legal in all Australian States).




Specifications for RACE-TECH Silencer - 71829AKN

---

Features	Details
Silencer material	Aluminium Dark
Rear endcap material	Carbon Fibre
Silencer inner parts material	Stainless steel
Mid-pipe material	Stainless steel
Silencer mounting	Welded mount
Silencer body length (mm)	250
Junction (inlet) diameter (mm)	55
Junction (outlet) diameter (mm)	58
db Killer	No
Weight (Kg)	1.97
