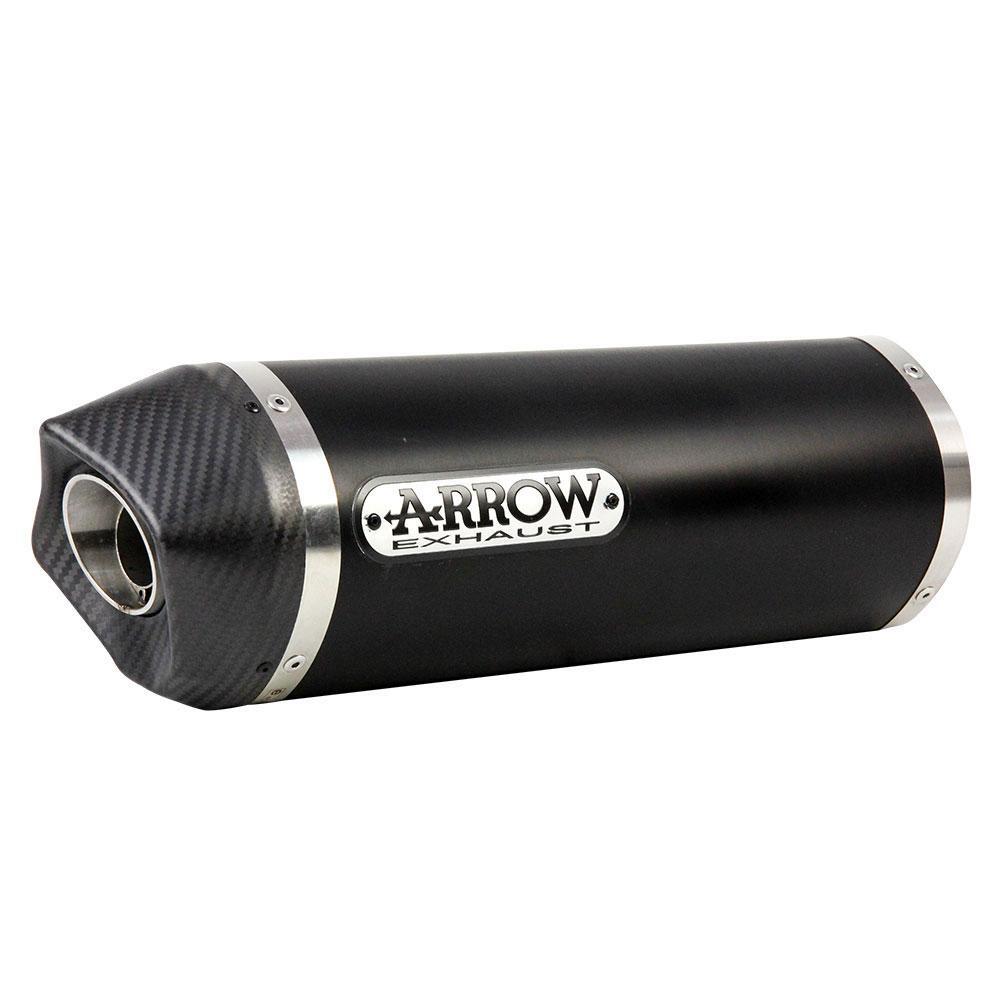

ARROW 71744AKN Silencer - RACE-TECH Aluminium Dark with Carbon End Cap - APRILIA RSV 4R & TUONO V4

Free Shipping on Orders Over $50!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

Fits: APRILIA
▪ RSV 4 for 2009 > 2015
▪ RSV 4 RR / RF for 2015 > 2016
▪ RSV 4 RR / RF for 2017 > 2018
▪ TUONO V4 R for 2011 > 2015
▪ TUONO V4 1100 RR / RF for 2015 > 2016
▪ TUONO V4 1100 RR / RF for 2017 > 2018



Arrow Part Number - 71744AKN
Note - For correct initial fitment, this ARROW Silencer will require the ARROW specific Link Pipe to allow connection to the O.E. collector unit.
For RSV 4 [2009>2015] & TUONO V4 R [2011>2015] refer fitment diagragms below:
This silencer requires an ARROW Link Pipe for fitment - Part# 71406MI
For RSV4 RR/RF [2015>2016] & TUONO V4 1100 RR [2015>2016] refer fitment diagragms below:
This silencer requires an ARROW Link Pipe for fitment - Part# 71627MI
For RSV4 RR/RF [2017>2018] & TUONO V4 1100 RR [2017>2018] refer fitment diagragms below:
This silencer requires an ARROW Link Pipe for fitment - Part# 71674MI

• The RACE-TECH Silencer has the Diamond Oval body profile using Aluminium with a satin black finish.
• The End Cap [#8 profile] is formed using carbon fibre for a sporty look.
• The silencer has a stainless steel mounting clamp with a synthetic rubber insert.
• This ARROW Homologated silencer is supplied with a dB killer to comply with ADR 83:00 Noise Standard (legal in all Australian States).



Specifications for this RACE-TECH Silencer - 71744AKN

---

Features	Details
Silencer material	Aluminium Dark
Rear endcap material	Carbon Fibre
Silencer inner parts material	Stainless Steel
Silencer mounting	Stainless Steel Clamp
Silencer body length (mm)	350
Junction (inlet) diameter (mm)	60
Junction (outlet) diameter (mm)	50
db Killer	Yes
Weight (Kg)	2.47

→ In the diagrams below, a Solid Line indicates that the connected items are required for initial fitment.

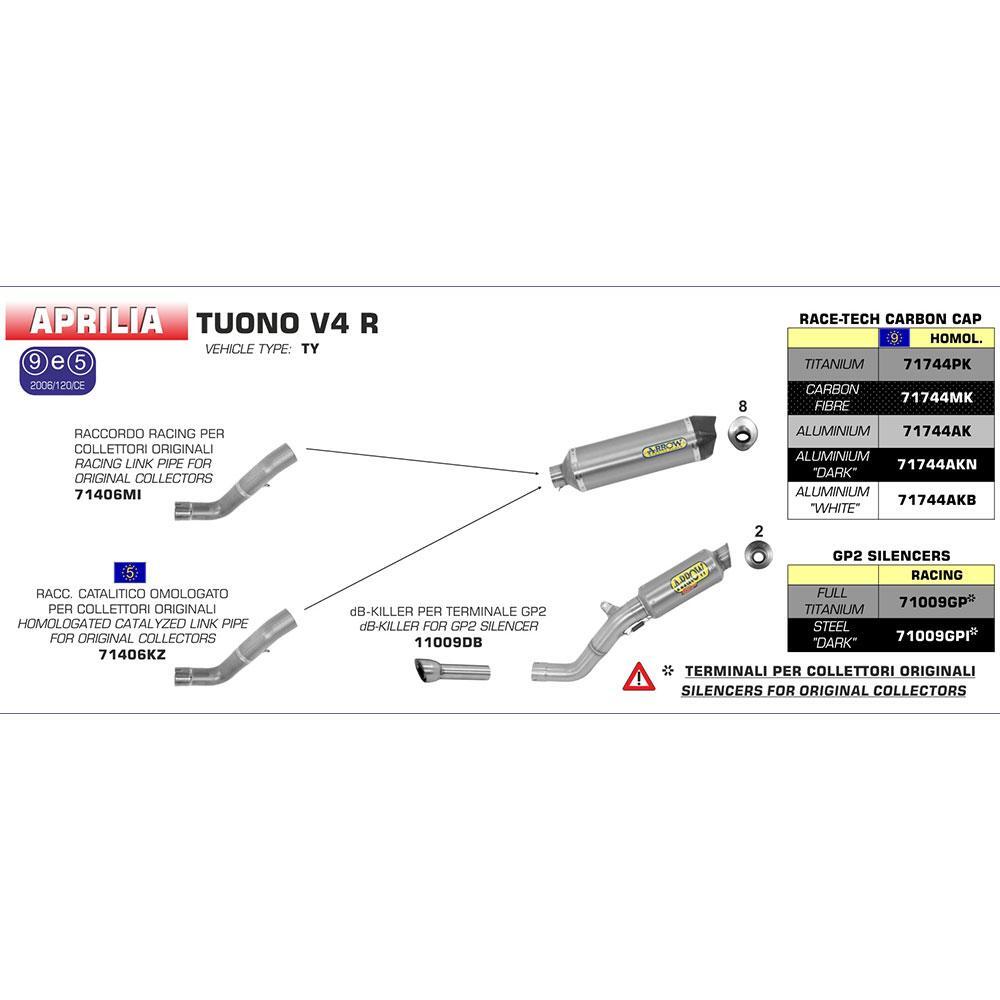

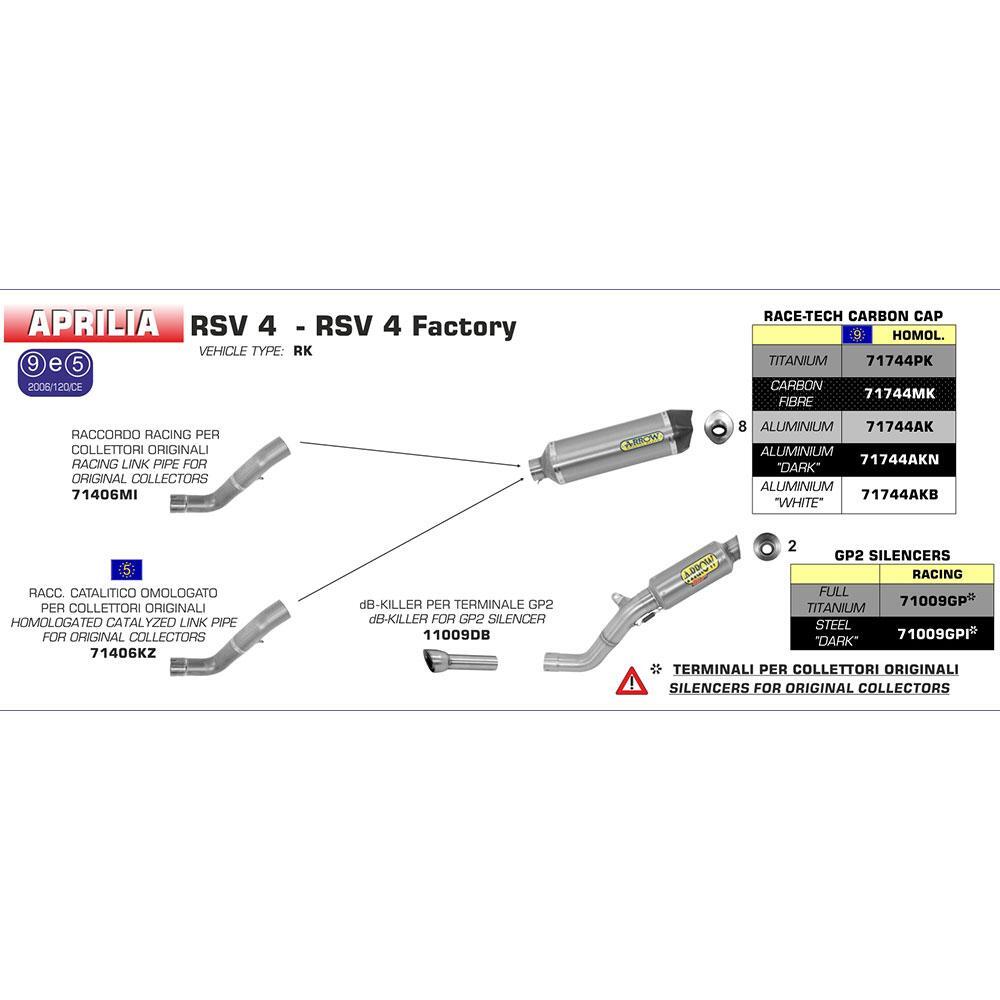

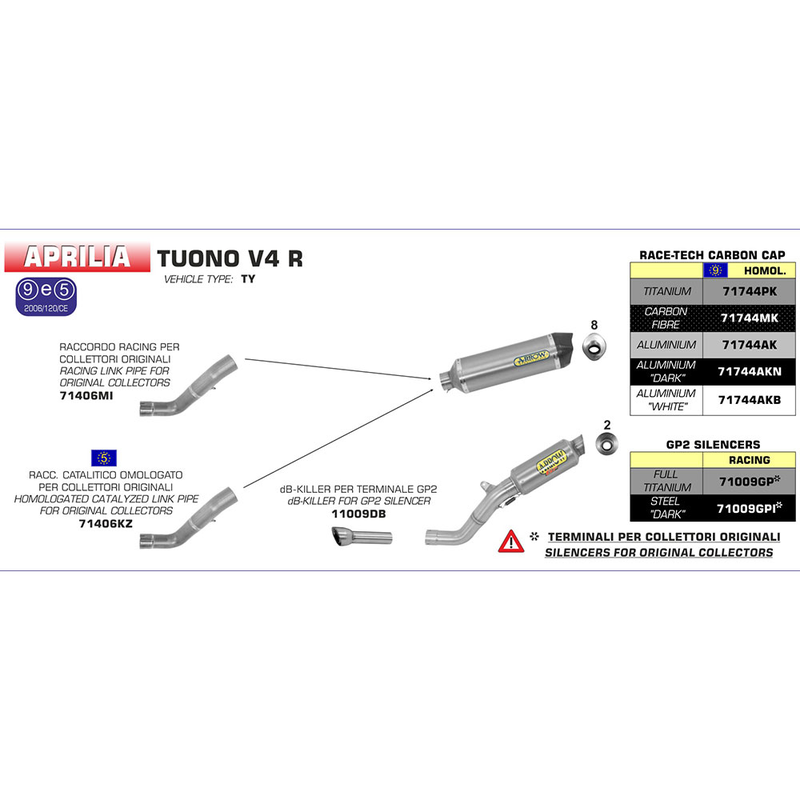

RE: RSV 4 [2009->2015] & TUONO V4 R [2011->2015]

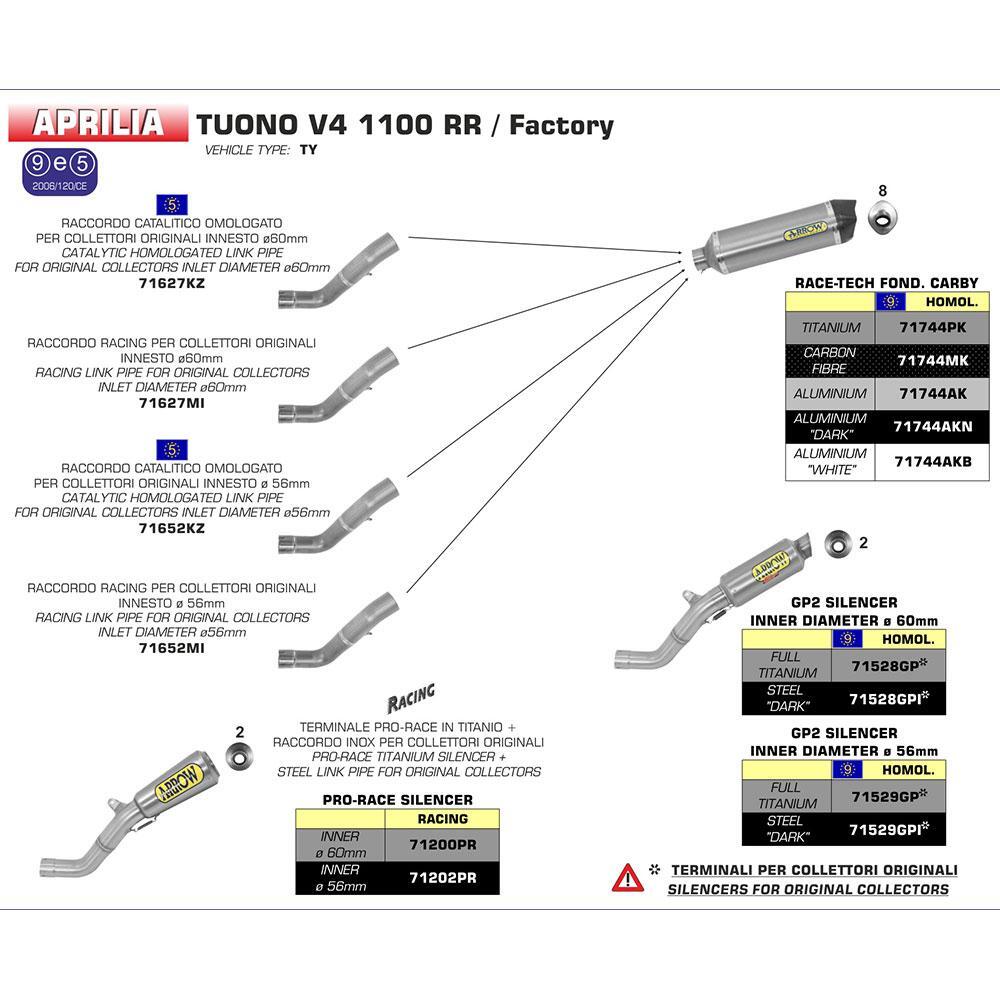

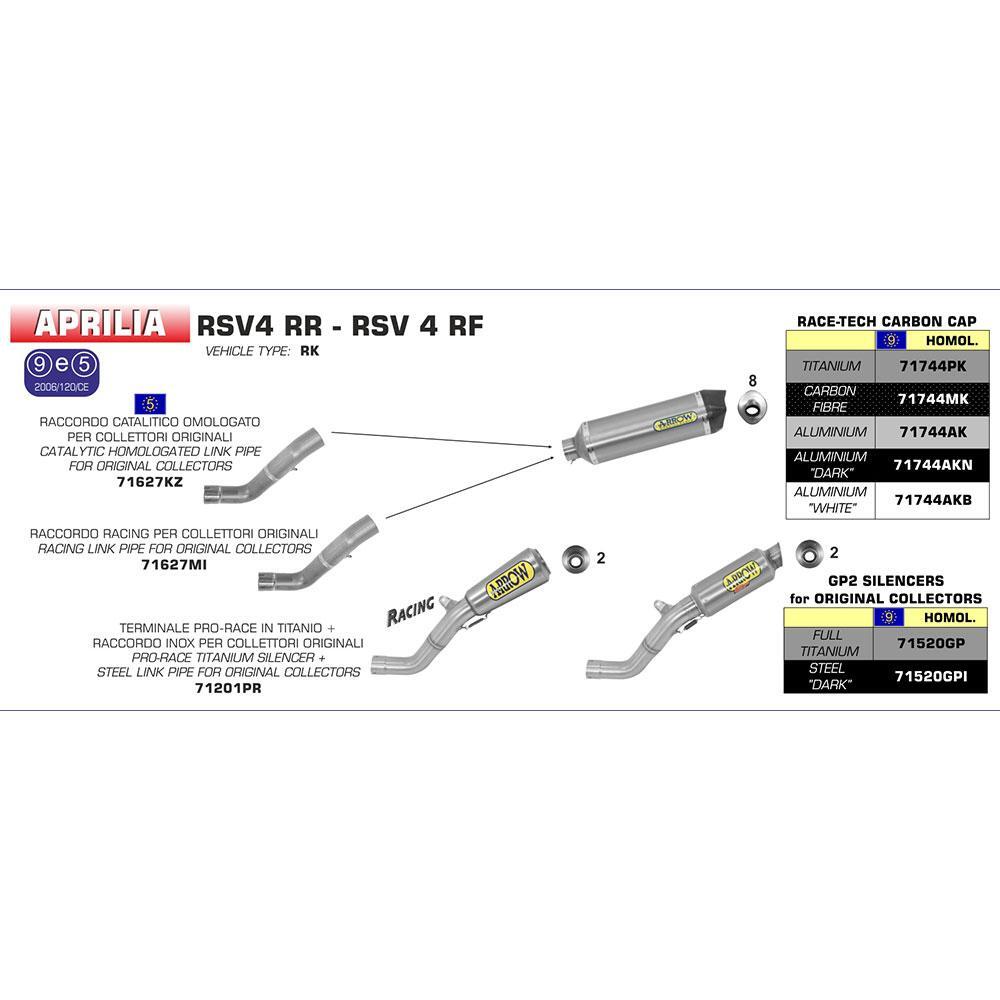

RE: RSV4 RR/RF [2015->2016] & TUONO V4 R [2015->2016]

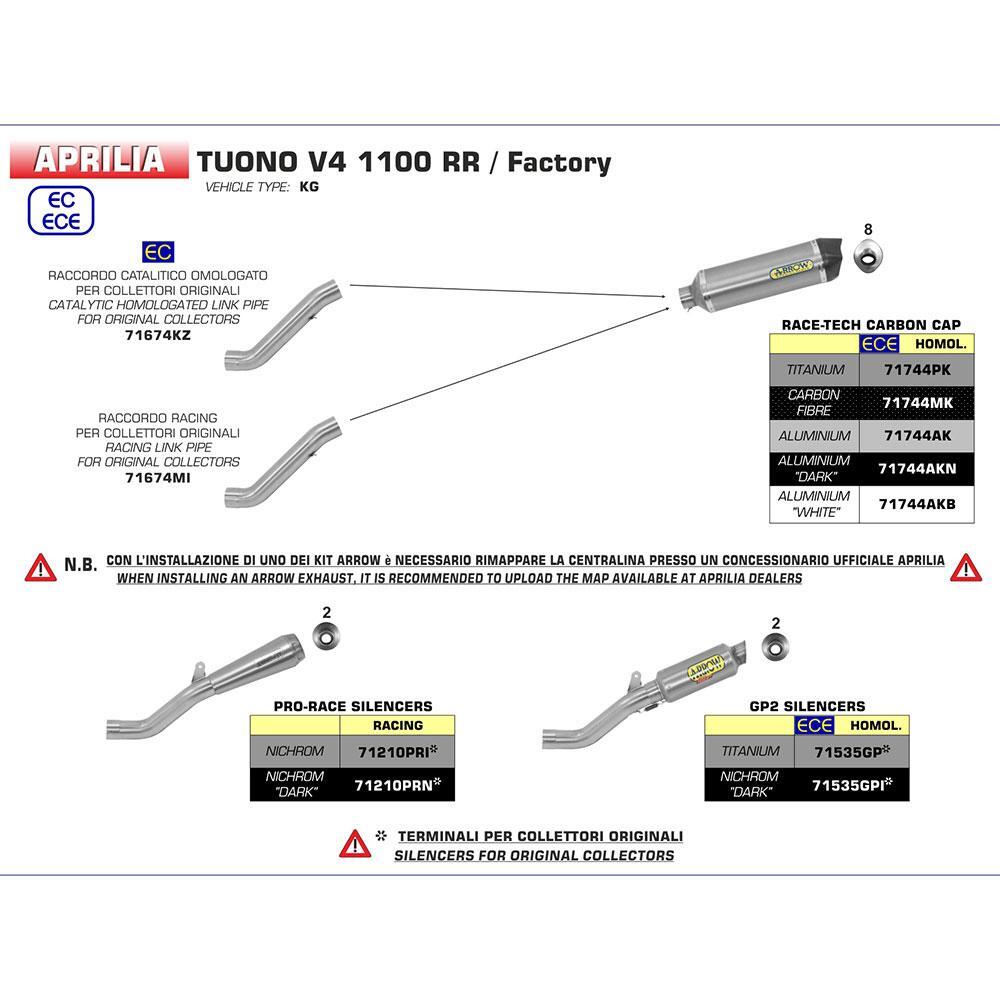

RE: RSV4 RR/RF [2017->2018] & TUONO V4 R [2017->2018]
