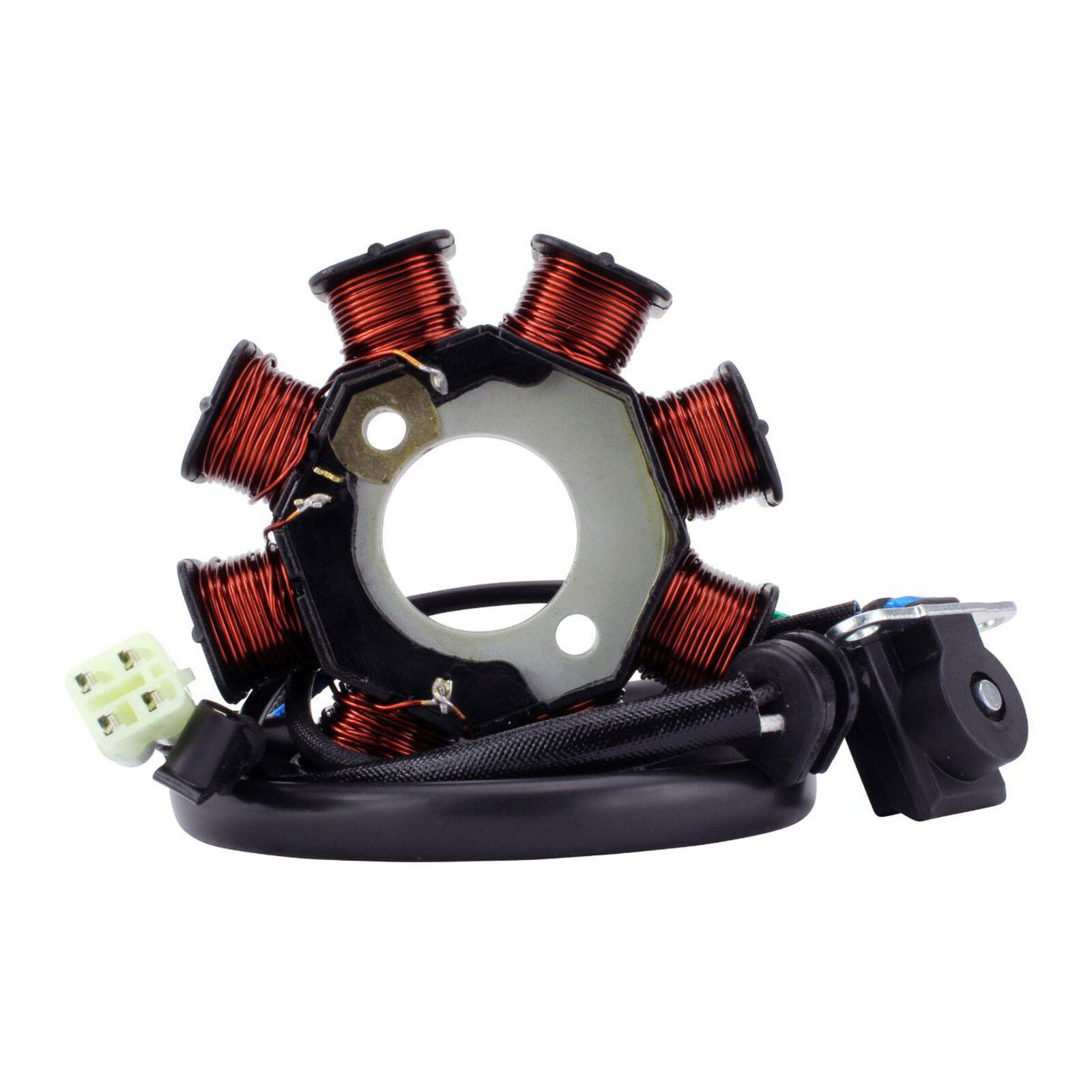

GENERATOR STATOR KAW KLX140 08-21 (RMS010-107080)

Free Shipping on Orders Over $50!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play direct fit easy installation
  • Highest-grade lamination materials
  • Highest-grade copper windings resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Specifications:

Dimensions :

  • Interior diameter: 29 mm
  • Exterior diameter: 88 mm
  • Thickness: 10 mm
  • Length of wires stator to grommet: 110 mm
  • Length of wires grommet to plug: 475 100 mm
  • Length of pickup coil's wire to grommet: 145 mm

Other specifications :

  • Number of wires: 4
  • Number of plugs: 2
  • Number of holes: 2
  • Number of poles: 8
  • Alternator : White to Ground = 1.1 ohms +-20%
  • Pickup: Blue/yellow to Ground = 119 ohms +-20%
